Instruction Manual

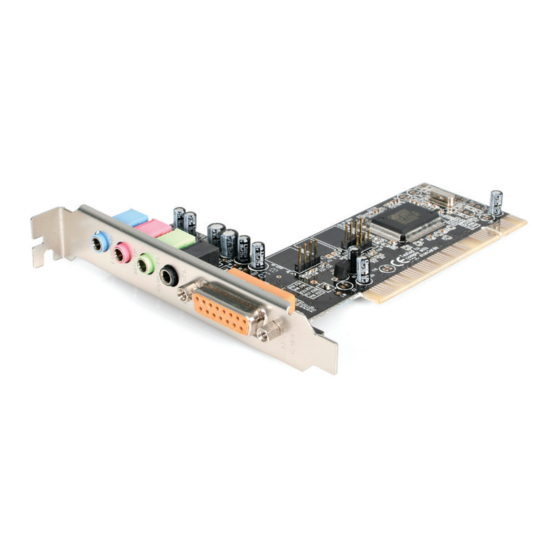

4 Channel PCI Sound Card with
AC97 3D Audio Effects
PCISOUND4CH
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/05/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com PCISOUND4CH
Summary of Contents for StarTech.com PCISOUND4CH
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/05/2011...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ...............................1 Before You Begin ..............................1 System requirements ..........................1 Contents .................................1 Installation................................2 Installing the Sound Card on the Motherboard ..............2 Installing the Sound Card drivers ....................3 Troubleshooting ............................5 Technical Support ............................6 Warranty Information ............................6 Instruction Manual... -
Page 4: Introduction
Game/MIDI port for using your legacy serial joysticks/gamepads in Windows XP or older operating systems. Providing a reliable, high quality audio experience, the 4-channel PCI sound card is backed by StarTech.com’s Lifetime Warranty. Features • Maintains clear audio and video signals for excellent performance • Legacy Audio SBPro compatible and DOS support... -
Page 5: Installation
Installation Connecting the PCI Multi Channel Sound Card to your computer motherboard: 1. Shut down all power connected to the computer, as well as all devices connected to the computer peripherally (i.e. Printers, Monitors, Scanners etc.). As an added step to ensure safe installation, unplug the power supply from the computer. -
Page 6: Installing The Sound Card Drivers
5. Open the WIN2K-ME folder, followed by the DRV folder. 6. Click OK. Once Windows has located the driver, click the Next button. Following this, the installation is automated. Follow the Windows prompts to finish installation. For Windows NT 4.0 Users: 1. - Page 7 Using your Sound Card Overview The PCISOUND4CH has 5 ports. 3 input (to be used with microphones, musical equipment, stereo equipment), and 2 output ports for your speakers. All are 3.5mm audio jacks, with the exception of the game port.
-
Page 8: Troubleshooting
Troubleshooting If you’re having difficulty using the Sound Card, try the following solutions based on the nature of the problem. No Sound: 1. Ensure the speakers are connected to the proper Sound Card port (shaded green). 2. Ensure the speakers are turned on and functioning properly. 3. -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
