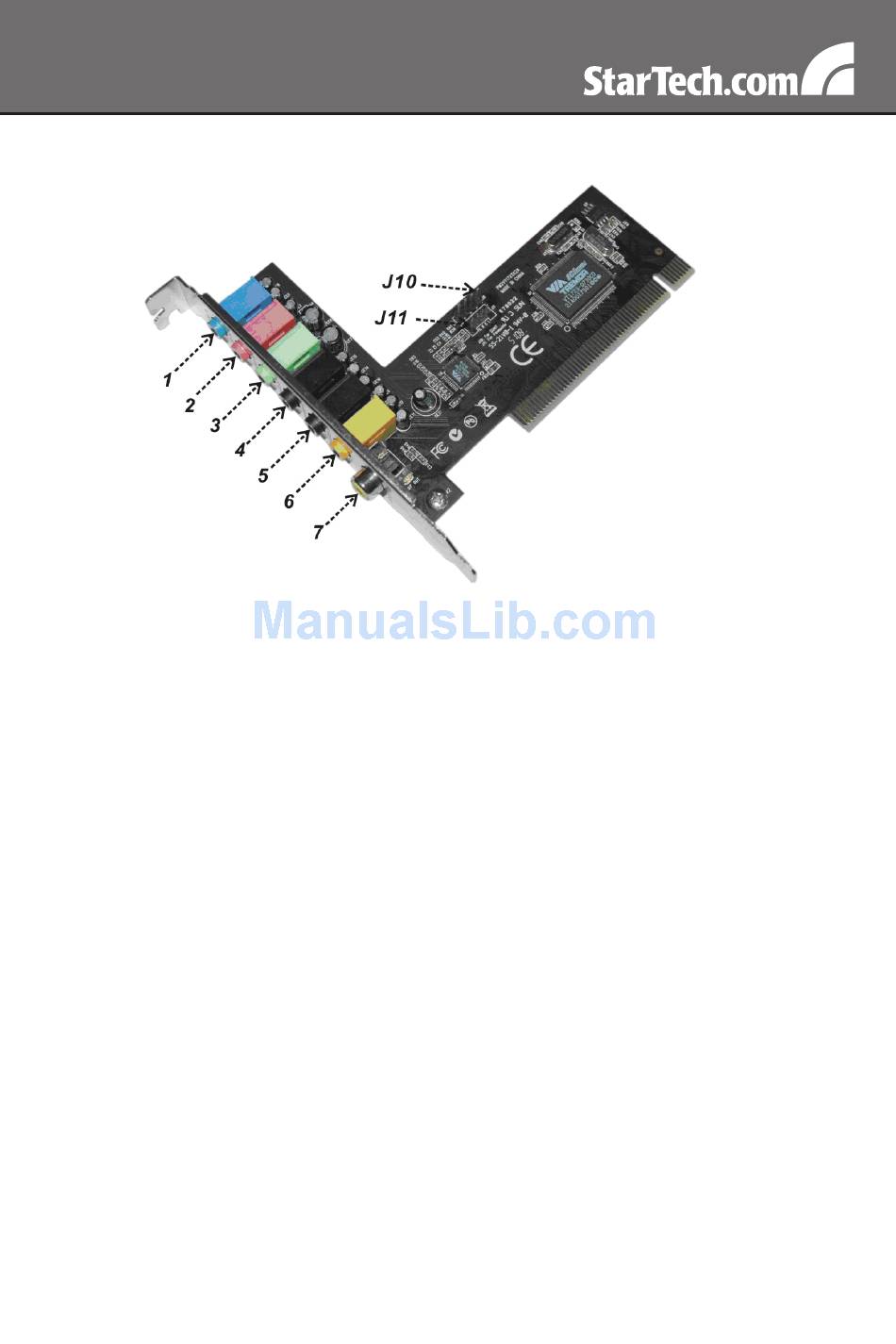

Physical Layout

1. Line In:
Connect to tape/CD/DVD Player, or other audio sources for
output mixing and/or recording.
2. MIC In:
Connect to a microphone.
3. Line Out: Connect to a headphone or a speaker. In 4-channel,
6-channel, and 8-channnel configuration, the function of this port
becomes Front Speaker Out.
4. Rear Speaker:
(via external amplifier).
5. Surround Speaker:
4/6/8 channel modes (via external amplifier).
6. Center/Bass Speaker:
6/8 channel modes (via external amplifier)
7. S/PDIF OUT:
you can use an RCA cable to connect this to a digital recorder,
mixer or surround sound receiver. A 75 Ohm digital coaxial cable is
required for this type of connection.
J10: Analog CD/IN header (L-G-G-R)
J11: Analog CD/IN header (G-R-G-L)
Connect to Rear speakers while in 8 channel mode
Connect to Surround (side) speakers while in
Connect to Center/Bass speakers while in
The Digital Output jack is an S/PDIF Coaxial output,
3
