7.1 Channel USB External Sound Card with
SPDIF Digital Audio
ICUSBAUDIO7D
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/26/2012
Advertisement
Table of Contents
Related Manuals for StarTech.com ICUSBAUDIO7D
Summary of Contents for StarTech.com ICUSBAUDIO7D
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/26/2012...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation................................2 Driver Installation ............................4 Specifications ..............................5 Technical Support ............................6 Warranty Information ............................6 Instruction Manual... -
Page 4: Introduction
Introduction This versatile External USB Sound Card/Audio Adapter offers a high quality solution for upgrading desktop or laptop sound. Providing a robust USB audio experience, the USB sound card connects to a host computer through a single USB 2.0 connection, to deliver impressive external audio capability that can instantly be swapped between systems, without having to open the computer case for installation. -
Page 5: Installation
Installation Top Controls Volume Mute: Press this button to mute/un-mute audio outputs. Microphone Mute: Press this button to mute/un-mute microphone. Volume (UP, Down): Increases or decreases audio output volume. Microphone Mute LED: When the microphone inputs are muted, the light will turn on. Power/ Activity LED: The light will be on when the system is powered up. -
Page 6: Front/Rear View

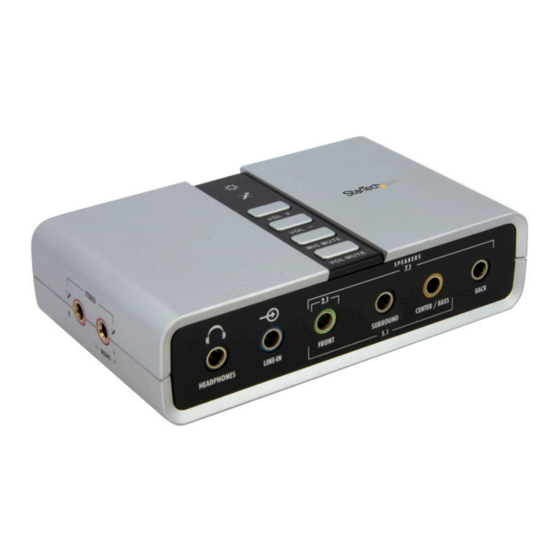

Front View Headphone: Connect to headphone. Line In: Connect to tape/CD/DVD Player, or other audio sources for output mixing and/or recording. Front Speaker: Connect to Front speakers (via external amplifier). Surround Speaker: Connect to Surround speakers while in 4/6/8 channel modes (via external amplifier). -
Page 7: Driver Installation
Side View MIC (1) IN: Connect to a microphone (right channel only). MIC (2) IN: Connect to a microphone (left channel only). Driver Installation Windows 2000/XP/Server 2003/Vista/7 1. Plug the USB Sound Adapter into an available USB port. 2. Place the Driver CD into the CD-ROM drive. Click the Start button on the taskbar and click Run. -
Page 8: Specifications
Specifications Bus Interface USB 2.0 8 x 3.5mm mini-jack (headphone, line-in, front speaker, surround speaker, rear speaker, center/bass, mic 1, mic 2) Connectors 2 x Toslink (S/PDIF in/out) USB type B Volume Up, Volume Down, Volume Buttons Mute, Mic Mute LEDs Power/ Activity, Mic Mute Chipset... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
