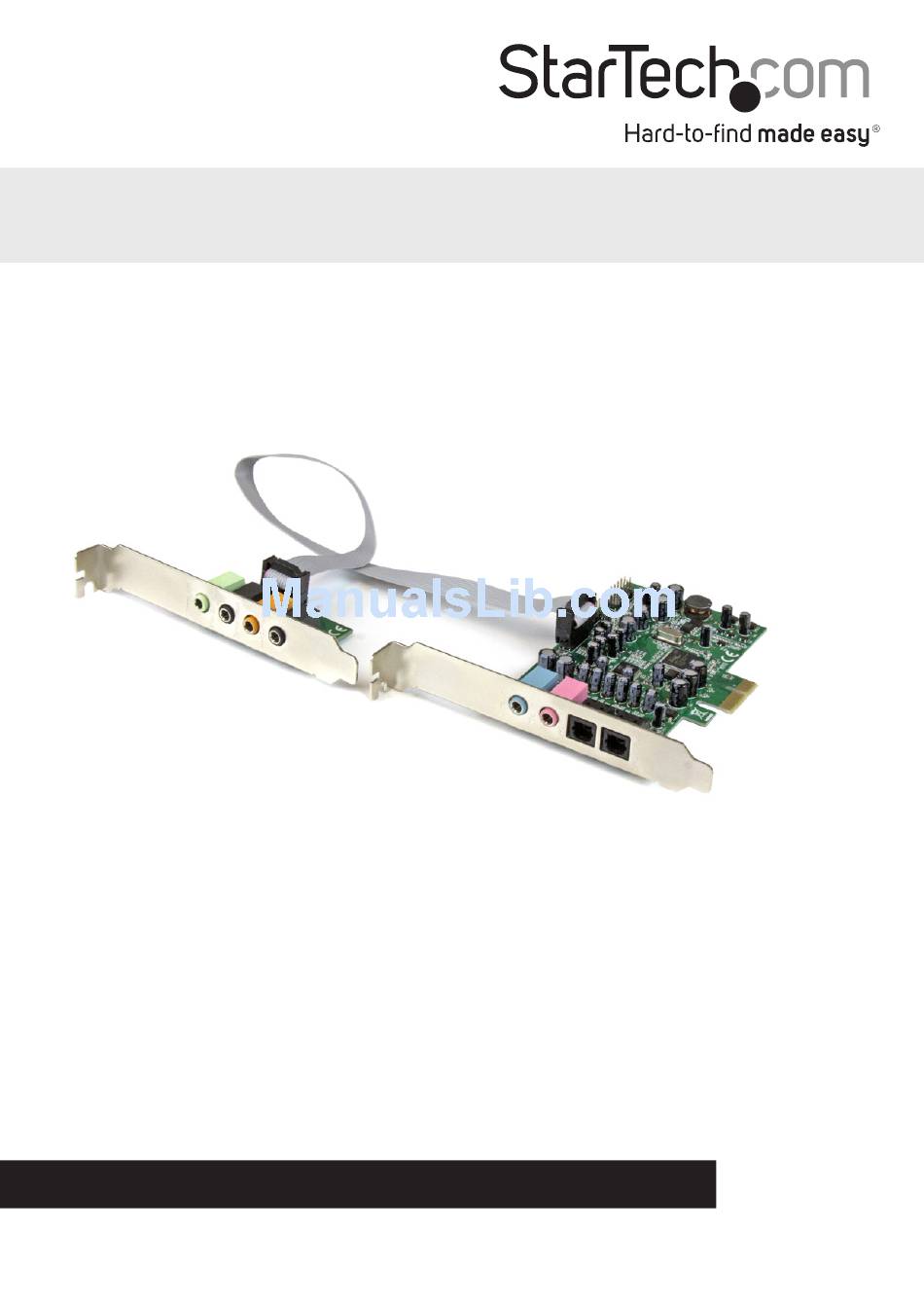

7.1 Channel PCI Express Digital Surround Sound Card - 24
Bit / 192KHz
PEXSOUND7CH
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 04/28/2015
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com PEXSOUND7CH
Summary of Contents for StarTech.com PEXSOUND7CH
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 04/28/2015...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Diagram ..................2 Main Card ..............................2 Header Bracket ............................3 Internal Headers ............................3 Installation .....................4 Hardware Installation ..........................4 Driver/Software Installation & Operation ..................5 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Introduction
Introduction Packaging Contents • 1x 7.1 Channel PCI Express Sound Card with Header Bracket & 10-pin Cable • 2x Low-Profile Brackets • 1x Instruction Manual System Requirements • PCI Express enabled computer with an available PCI Express x1 slot or higher (x4, x8, x16) •... -
Page 5: Product Diagram
Product Diagram Header Bracket 10-pin Cable PCI Express Main Card Main Card 1. Analog Left / Right Line Input 2. Analog Left / Right Microphone Input J7 J10 3. S/PDIF Input - Connect to digital amplifier or decoder 4. S/PDIF Output - Connect to digital amplifier or decoder 5. -
Page 6: Header Bracket
Header Bracket 6. Front Left / Right Analog Output 7. Side Surround Left / Right Analog Output 8. Center / Subwoofer Analog Output 9. Rear Surround Left / Right Analog Output J2. 10-Pin Header - Connects Header Bracket to Main Card using the provided 10-pin cable Note: The red color coded line on the provided 10-pin cable should... -
Page 7: Installation
PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 8: Driver/Software Installation & Operation
1. Upon starting Windows, if the Found New Hardware dialog appears on the screen, cancel/close the window. 2. Download the latest drivers from the www.startech.com website (recommended), applicable to the Operating System on the host computer that you are installing the card to. - Page 9 Instruction Manual...
-
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
