Summary of Contents for StarTech.com PCISOUND4LP

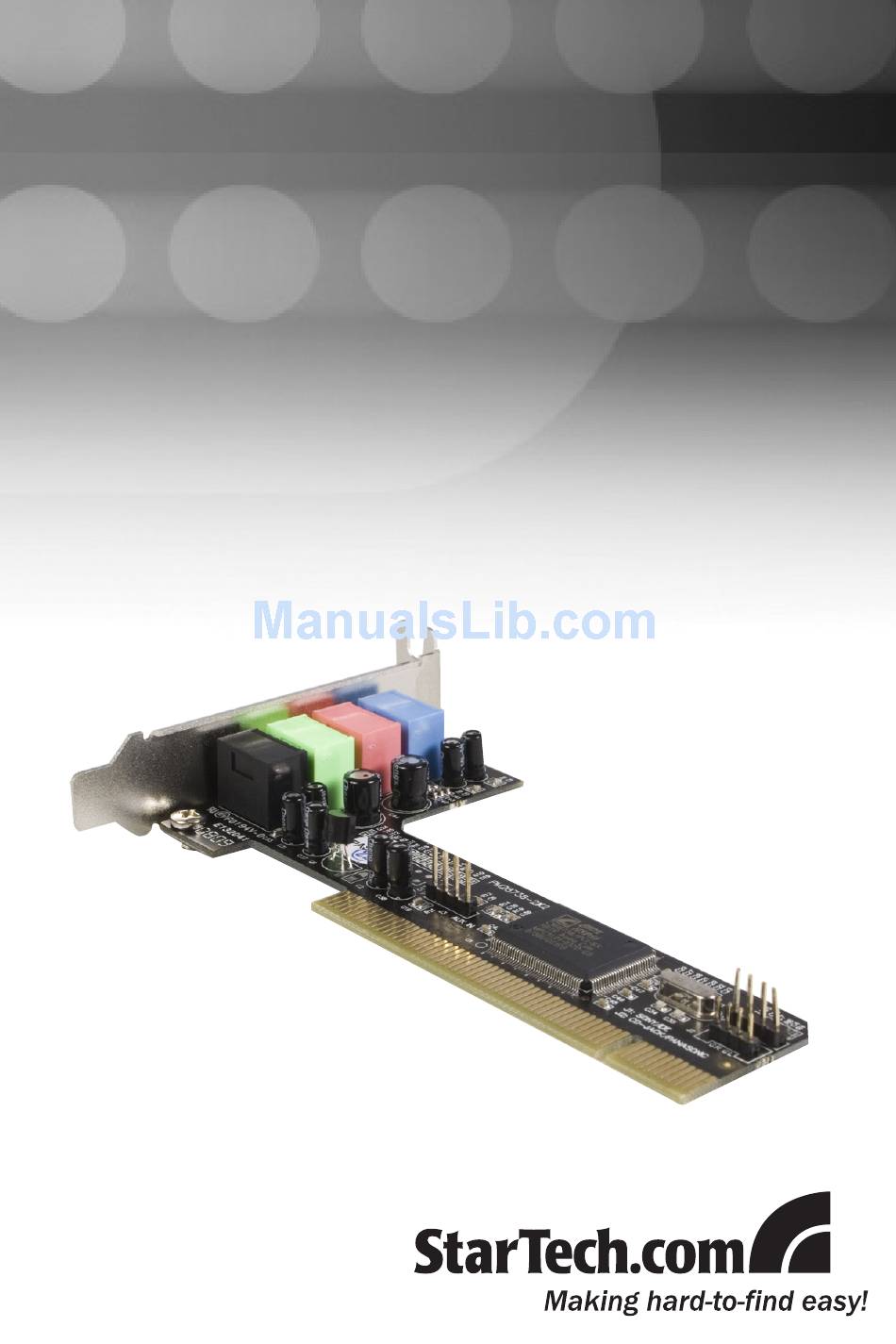

- Page 1 4-Channel Low Profile PCI Sound Card PCISOUND4LP...
- Page 2 StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowl- edgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all...
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ..................1 Package Contents ...............1 Hardware Guide ................2 Installation ..................3 Hardware Installation ..............3 Software Installation ..............4 Specifications ................5 Technical Support ................6 Warranty Information ..............6... -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com Multi-Channel Dual Profile Sound Card. Providing users with high quality sound to ensure a rich au- dio experience, PCISOUND4LP is designed to fit into a slim form factor or low profile PC case and provides optimum connectivity options to ensure a smooth user experience. -
Page 5: Hardware Guide
Instruction Manual Hardware Guide Line In (blue) – Line-In Connect to the audio output port of stereo Mic In (pink) – Connect to the Microphone (Mono) Front-Speaker (green) – Output to speakers with the amplifier or ear phones or Audio-in of home stereo Rear-Speaker (black) –... -
Page 6: Installation
Instruction Manual Installation Please Note: It is recommended that you remove any previously installed sound card and drivers, prior to installing PCISOUND4LP, to avoid any hardware or software conflicts. If previously installed drivers are not removed, the PCISOUND4LP may not function properly. Please Note: If your computer has on-board sound you will need to disable it on the motherboard. -
Page 7: Software Installation
Instruction Manual Software Installation Please note: When you start the computer following the hardware instal- lation, Windows® will detect the addition of the sound card as a “Multime- dia Audio Controller” device. Click the Cancel button to cancel the driver installation for the device at this moment. -
Page 8: Specifications
Instruction Manual Specifications Bus Type PCI 32 Bit PCI Specification PCI 2.2 Compliant Duplex Mode: Supports Full Duplex Mode Channels 4-Channel 16-bit stereo sound card 1 x Auxillary connector Internal Connectors 2 x CD audio connectors Line In: 1 x 3.5mm audio jack for connecting auxillary devices Microphone: 1 x 3.5mm audio jack for connecting External Connectors... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
