Installation

Do not connect appliance until properly fixed to the wall
and the Instruction leaflet is read fully.
This model is designed to be permanently fixed to a wall at a
minimum height of 300mm.
The wall bracket must be fitted horizontally with the cable
routed to the bottom right of the heater as in Fig 1.
240
120
526
outline of
wall fire

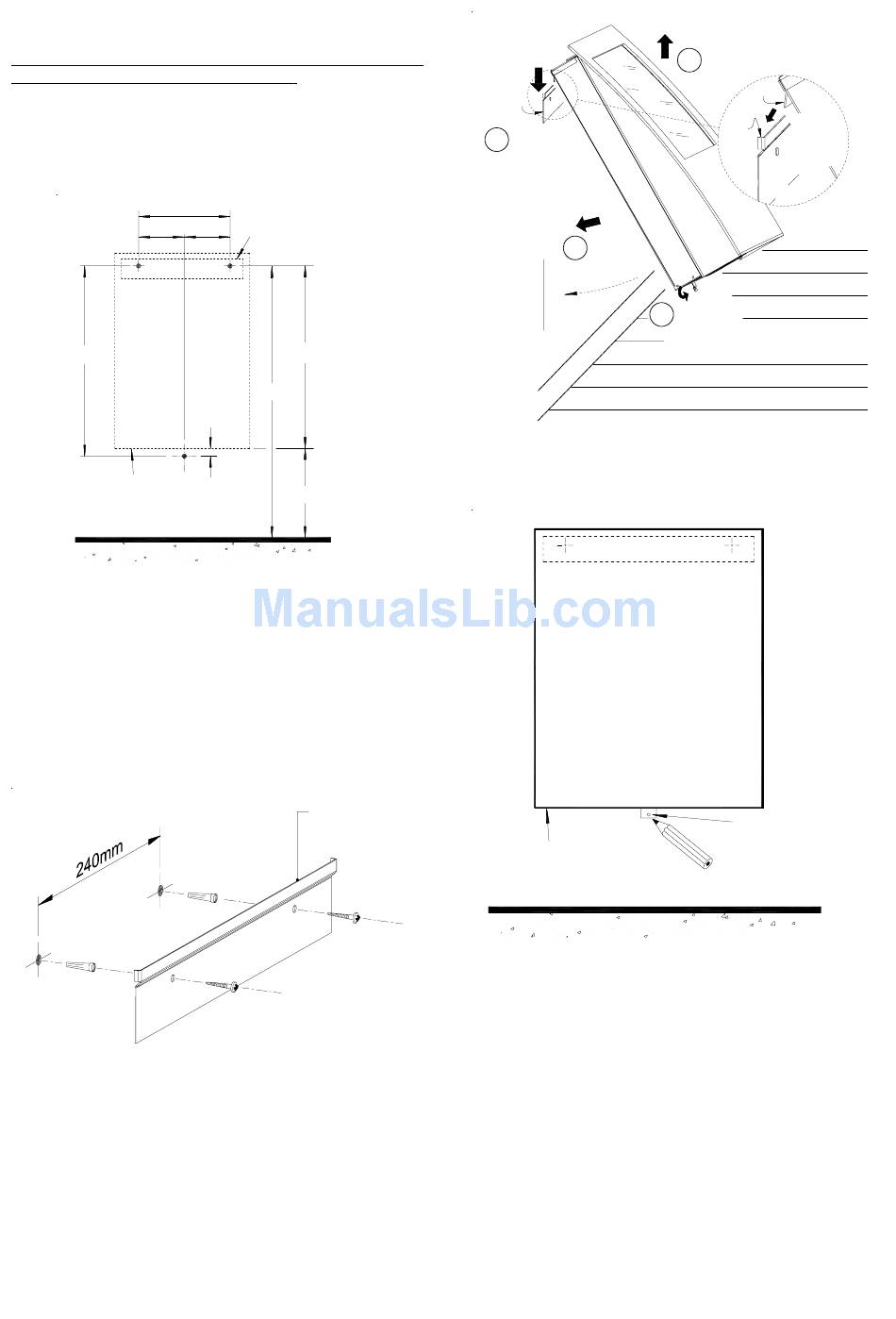

Recommended Fixing Dimensions - Fig. 2
A height of 600mm from bottom of heater to floor is
recommended for optimum viewing of fuel bed (see Fig. 2
for recommended fixing dimensions).
For optimum viewing mark the top two screw fixing positions
on wall in accordance with the recommended fixing
dimensions - see Fig. 2.
wall
holes
Fix the wall bracket using the two plugs and screws provided
- see Fig 3.
Carefully lift the heater up ensuring that the top rear ledge of
heater engages the wall bracket and is sitting centrally
positioned. - see Fig 4 (b).
Rotate the bottom fixing bracket down. - see Fig 4 (c).
Gently bring the heater level with the wall. - see Fig 4 (d).
outline of wall
120
fixing bracket
513
1113
13
600
wall fixing
bracket
wall
plugs
screws
Fig. 3
see
detail '1'
wall bracket
slide down over
b
bracket, ensure
that ledge of
appliance engages
behind wall
bracket and is
central
d
bring level
with wall
outline of
wall fire
Mark the bottom hole position (see Fig. 5), remove the heater
ensuring that the bottom fixing bracket is rotated up.
Drill and fit wall plug.
Refit the heater to the wall fixing bracket (i.e. follow steps as
in Fig. 4 a,b,c and d above) and rotate the bottom fixing
bracket down again and use the screw provided to
permanently fix the heater in place.
The heater should not be connected until the instruction leaflet
is read fully.
lift appliance
a
above wall
fixing bracket
ledge
wall
ensure ledge
bracket
at back of
fire engages
wall bracket
Detail '1'
rotate bottom
c
fixing bracket
down from its
transit position
Fig. 4
mark hole
centre with
pencil
Fig. 5
