Page 1: Replacement Parts

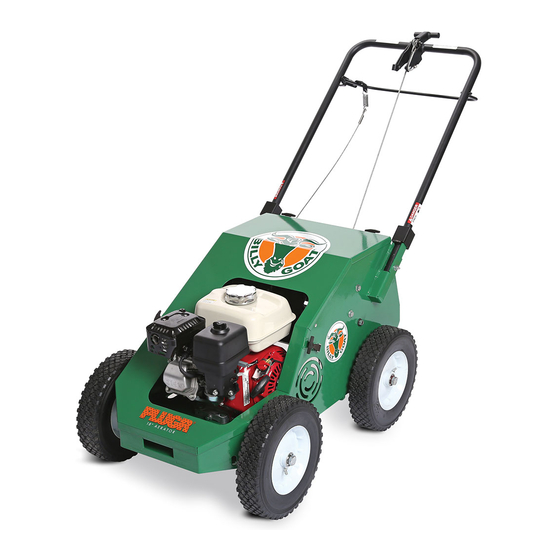

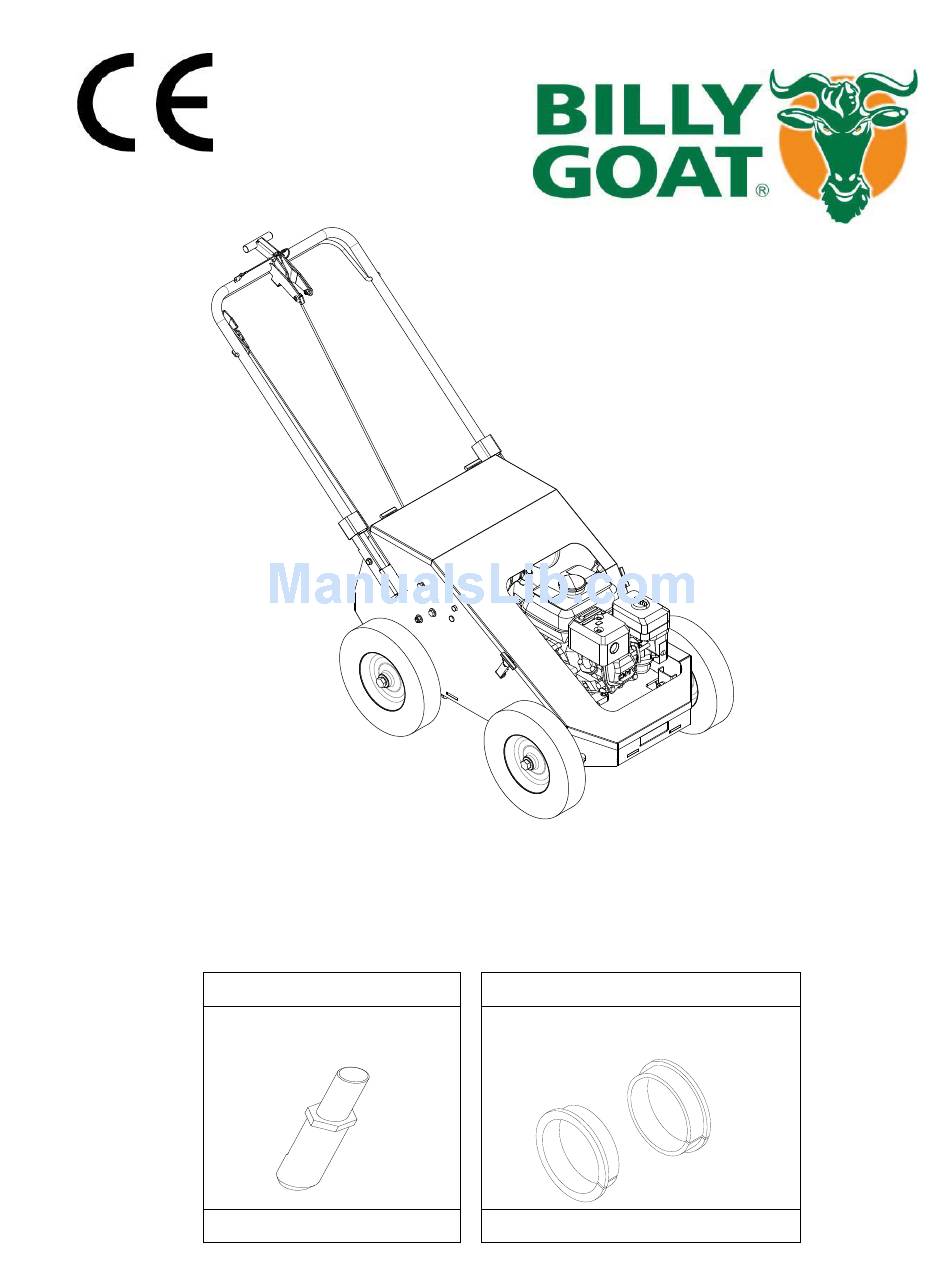

PL1800/PL1800H Owner’s Manual AERATOR Owner's Manual PL1800 and PL1800H U.S. PATENT #6892821 Replacement Parts TINE REPLACEMENT TINE BUSHING REPLACEMENTS Replacement tip for aerating tines. Replacement bushings for the tines P/N 381057 P/N 380213 Part No 100381 Form No F010515A... -
Page 2: Table Of Contents
PL1800/1800H Owner’s Manual CONTENTS SPECIFICATIONS _____________________ SAFETY INSTRUCTIONS______________ INSTRUCTION LABELS _____7 PACKING CHECKLIST & ASSEMBLY OPERATION MAINTENANCE AND TROUBLE SHOOTING WARRANTY INFORMATION______________________________________________11 ILLUSTRATED PARTS & PARTS LIST 12-13 Part No 100381 Form No F010515A... -
Page 3: Specifications
PL1800/PL1800H Owner’s Manual Specifications PL1800 PL1800H Engine: cc 205cc 118cc Engine: B&S 5.5hp Intek HONDA GX120 W. w/Gearbox gearbox Engine: Fuel Capacity 3.0 qt. (2.84 L) 2.1 qt. (2 L) Engine: Oil Capacity 0.66 qt. (0.62 L) 0.59 qt. (0.56 L) Total Unit Weight: 240# (109 Kg) 240# (109 Kg) - Page 4 This symbol indicates that this manual and the engine manufacturer’s manual should be read carefully before assembling, operation, or servicing this equipment. ® This symbol indicates important information that will prevent damage to your BILLY GOAT Machine. This symbol indicates the engine oil level should be checked before operating this equipment.
-
Page 5: Safety Instructions
PL1800/PL1800H Owner’s Manual SAFETY INSTRUCTION DO NOT run this equipment indoors or in any poorly ventilated area. Refueling outdoors is recommended. DO NOT refuel this equipment while the engine is running. Allow engine to cool for at least two minutes before refueling. - Page 6 PL1800/1800H Owner’s Manual SAFETY WARNINGS CONTINUED ALWAYS keep hands and feet away from moving or rotating parts. ALWAYS check fuel lines and fittings frequently for cracks or leaks. Replace if necessary ALWAYS store fuel in approved safety containers. Warning Important DO identify and mark all fixed objects to be avoided during work, such as sprinkler heads, water valves, buried cables, or clothes line anchors, etc.
-
Page 7: Instruction Labels
INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT Aerator. If any labels are damaged or missing, replace them before operating this equipment. Part numbers from the Illustrated Parts List are provided for convenience in ordering replacement labels. The correct position for each label may be determined by referring to the part numbers shown. -
Page 8: Packing Checklist & Assembly
PL1800/1800H Owner’s Manual PACKING CHECKLIST Your Billy Goat is shipped from the factory in one carton, completely assembled. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box. PUT OIL IN ENGINE BEFORE STARTING PARTS BAG &... -
Page 9: Operation
PL1800/PL1800H Owner’s Manual OPERATION PARKING NEVER PARK THIS UNIT ON A SLOPE OF ANY KIND. Always keep tines in the up position when parking the unit. TINES RAISING/LOWERING The tines are raised or lowered into the ground by operating the tine engagement lever on the upper handle. Tine penetration is very dependent on surface preparation. -
Page 10: Troubleshooting
PL1800/1800H Owner’s Manual MAINTENANCE ERIODIC AINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Every Use (daily) Every 10 hrs Every 50 Hrs Every 100 Hrs Inspect for loose, worn or damaged parts. Check engine oil. ... -
Page 11: Warranty Information
The machine must be taken to the dealer from whom it was purchased or to an authorized Servicing BILLY GOAT Dealer. ... - Page 12 PL1800/1800H Owner’s Manual PARTS DRAWING PL1800/1800H Part No 100381 Form No F010515A...
-
Page 13: Part No 100381
PL1800/PL1800H Owner’s Manual PARTS LIST PL1800/1800H PL1800 PL1800H PL1800 PL1800H ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION 381003 RUBBER LATCH KIT 381632 RETRACTOR PLATE ARM 8171003 FLAT WASHER 5/16" 8041052 SCREWCAP 3/8"-16 X 1 1/2" HCS ZP 8041151 SCREWCAP 5/8"-11 X 4 1/2"...
