SGI 1450 Server Quick Start Guide

Using Chassis Front Controls and Indicators

G. USB ports 0 (upper) and 1 (lower), 4-pin connectors

H. NIC RJ45 connector

I. Serial port 2 (COM1), 9-pin RS-232 connector

J. IEEE 1284 compliant, 25-pin bi-directional parallel connector

K. Serial port 1 (COM1), 9-pin RS-232 connector

L. PS/2-compatible keyboard connector

M. PS/2-compatible mouse connector

N. HW push button

O. PCI green and amber LEDs on the inside of the chassis

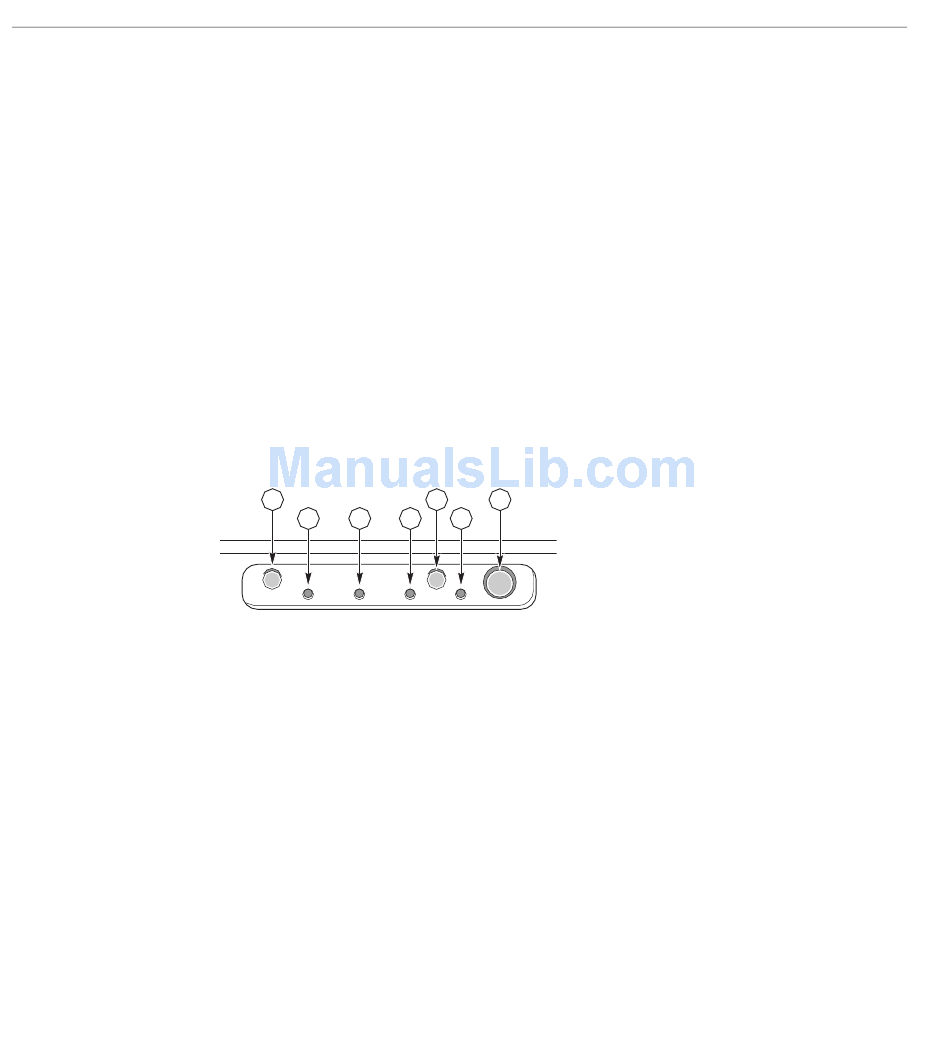

Figure 2

Front Panel Controls and Indicators

The following front controls and indicators are shown in Figure 2.

A. Power on/off button: If you press this button when the system is off, you turn on the

power subsystem. If you press this button when the system is in sleep state, you activate

it. If you hold down the button for more than 4 seconds, you override the ACPI mode

and the power is turned off.

B. Reset button: If you press this button, you reset the system. If you hold down this

button for 4 seconds or more the CMOS will be cleared if the power button is pushed,

and then both the reset and power buttons are released within one second of each other.

C. Sleep button: If the operating system supports ACPI and you press this button, the

operating system goes into sleep state (S1). If you press this button during sleep state, the

operating system becomes active. This system does not have a service mode.
