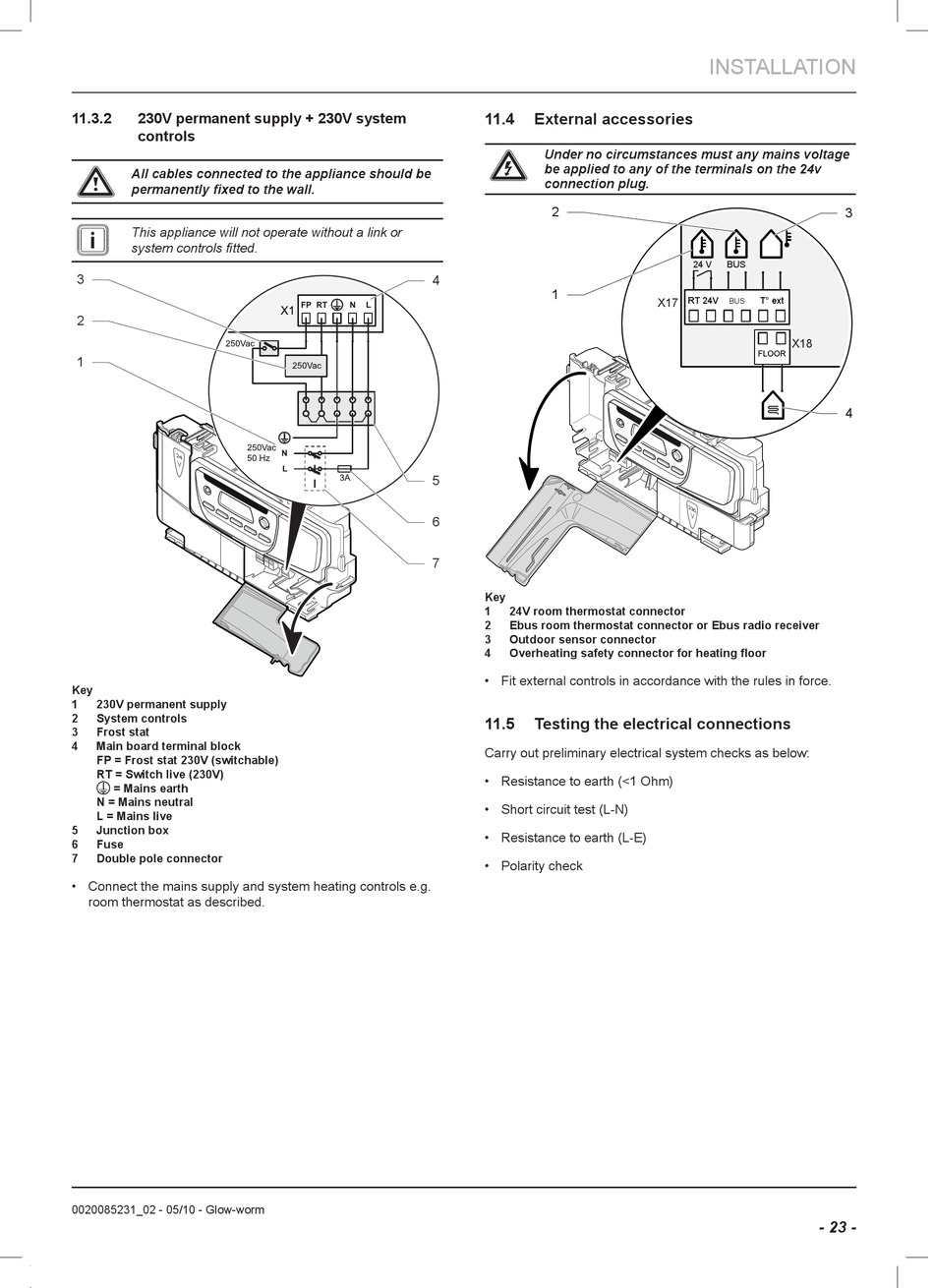

11.3.2
230V permanent supply + 230V system
controls
a
All cables connected to the appliance should be
i
3
2
1
Key
1
230V permanent supply
2
System controls
3
Frost stat
4
Main board terminal block
= Mains earth
N = Mains neutral
L = Mains live
5
Junction box
6
Fuse
7
Double pole connector
Connect the mains supply and system heating controls e.g.
room thermostat as described.
0020085231_02 - 05/10 - Glow-worm
11.4
External accessories
e
Under no circumstances must any mains voltage
be applied to any of the terminals on the 24v
connection plug.
2
4
1
5
6
7
Key
1
24V room thermostat connector
2
Ebus room thermostat connector or Ebus radio receiver
3
Outdoor sensor connector
Fit external controls in accordance with the rules in force.
11.5
Testing the electrical connections
Carry out preliminary electrical system checks as below:
Resistance to earth (<1 Ohm)
Short circuit test (L-N)
Resistance to earth (L-E)
Polarity check
INSTALLATION
24 V
BUS
RT 24V
T° ext
X17
BUS
X18
- 23 -
