INSTALLATION

i
6

Appliance location

6.1

Location

6.1.1 Instructions
Before choosing a site for the appliance, carefully read the
safety warnings and installation manual.
Ensure that wall to which the appliance will be mounted on is
structurally safe in order to support the weight of the appliance.
Ensure that the space that the appliance is to be installed
within allows the appliance to be installed and the clearances
maintained. This will ensure that the connections to the
chapter Clearances).
Explain these requirements to the appliance user.
Do not install the appliance above another appliance that
could damage it (for example, above a cooker that might
emit steam or grease) or in a room, which has a lot of dust in
the atmosphere which is corrosive.
frost thermostat.
6.1.2 Regulations
Location
This boiler is not suitable for outdoor installation.
This boiler may be installed in any room, although particular
attention is drawn to the installation of a boiler in a room
containing a bath or shower where reference must be made to
the relevant requirements.
This boiler is suitable for installation in bathroom zones 2 and 3.
In GB this is the current I.E.E. WIRING REGULATIONS and
BUILDING REGULATIONS.
In IE reference should be made to the current edition of I.S.813
"Domestic Gas Installations" and the current ETCI rules.
Timber Frame Buildings
If the boiler is to be installed in a timber frame building it should
document IGE/UP/7/1998. If in doubt seek advice from local
gas undertaking or Glow-worm.
6.2

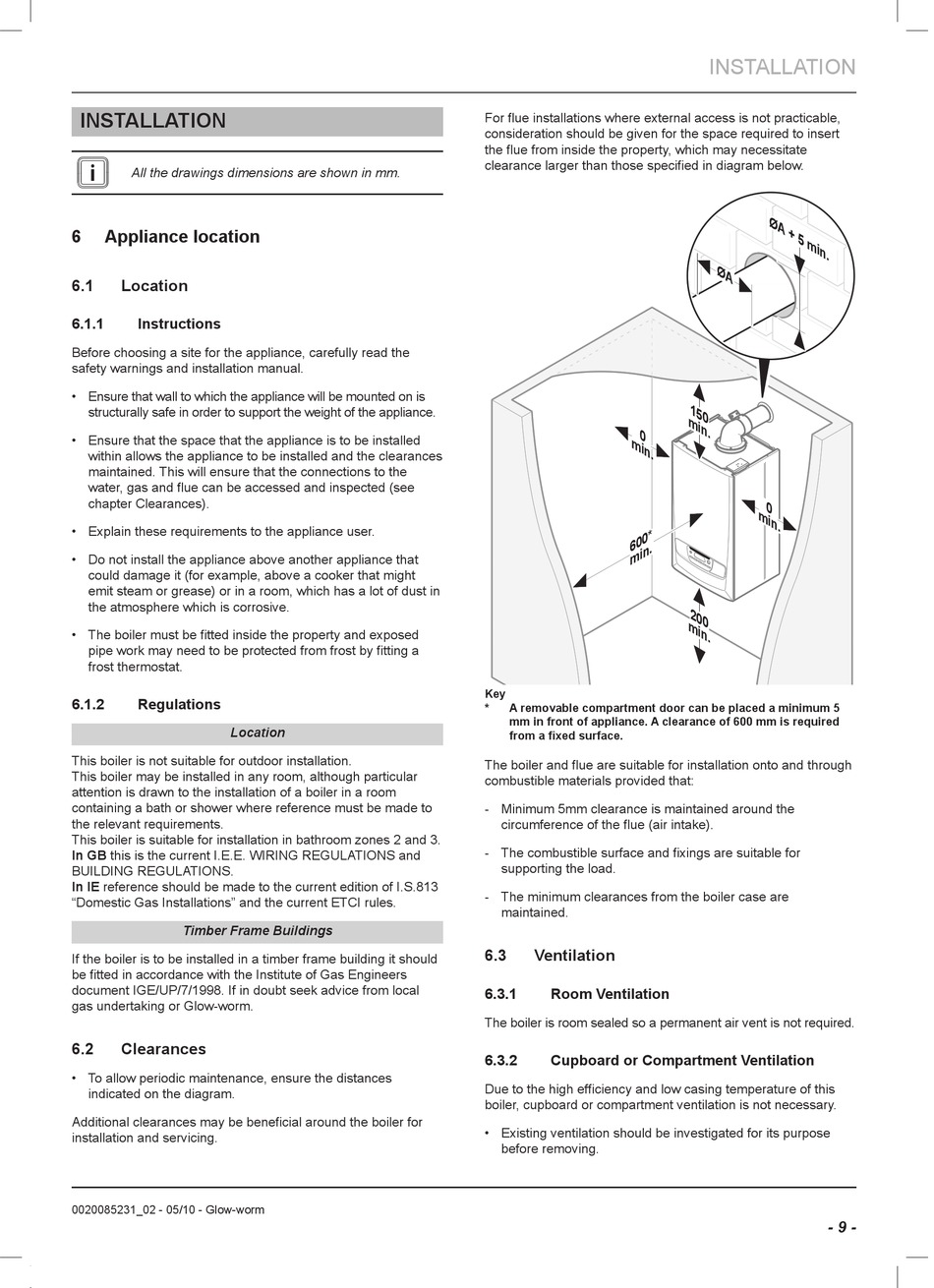

Clearances

To allow periodic maintenance, ensure the distances
indicated on the diagram.
installation and servicing.
0020085231_02 - 05/10 - Glow-worm
consideration should be given for the space required to insert
0
m i
n .
*
6 0 0
n .
m i
Key
* A removable compartment door can be placed a minimum 5
mm in front of appliance. A clearance of 600 mm is required
combustible materials provided that:
- Minimum 5mm clearance is maintained around the
-
supporting the load.
- The minimum clearances from the boiler case are
maintained.
6.3

Ventilation

6.3.1 Room Ventilation
The boiler is room sealed so a permanent air vent is not required.
6.3.2 Cupboard or Compartment Ventilation
boiler, cupboard or compartment ventilation is not necessary.
Existing ventilation should be investigated for its purpose
before removing.
INSTALLATION
Ø A
+ 5
m i
n .
Ø A
1 5 0
m i
n .
0
m i
n .
2 0 0
m i
n .
- 9 -
