INSTALLATION

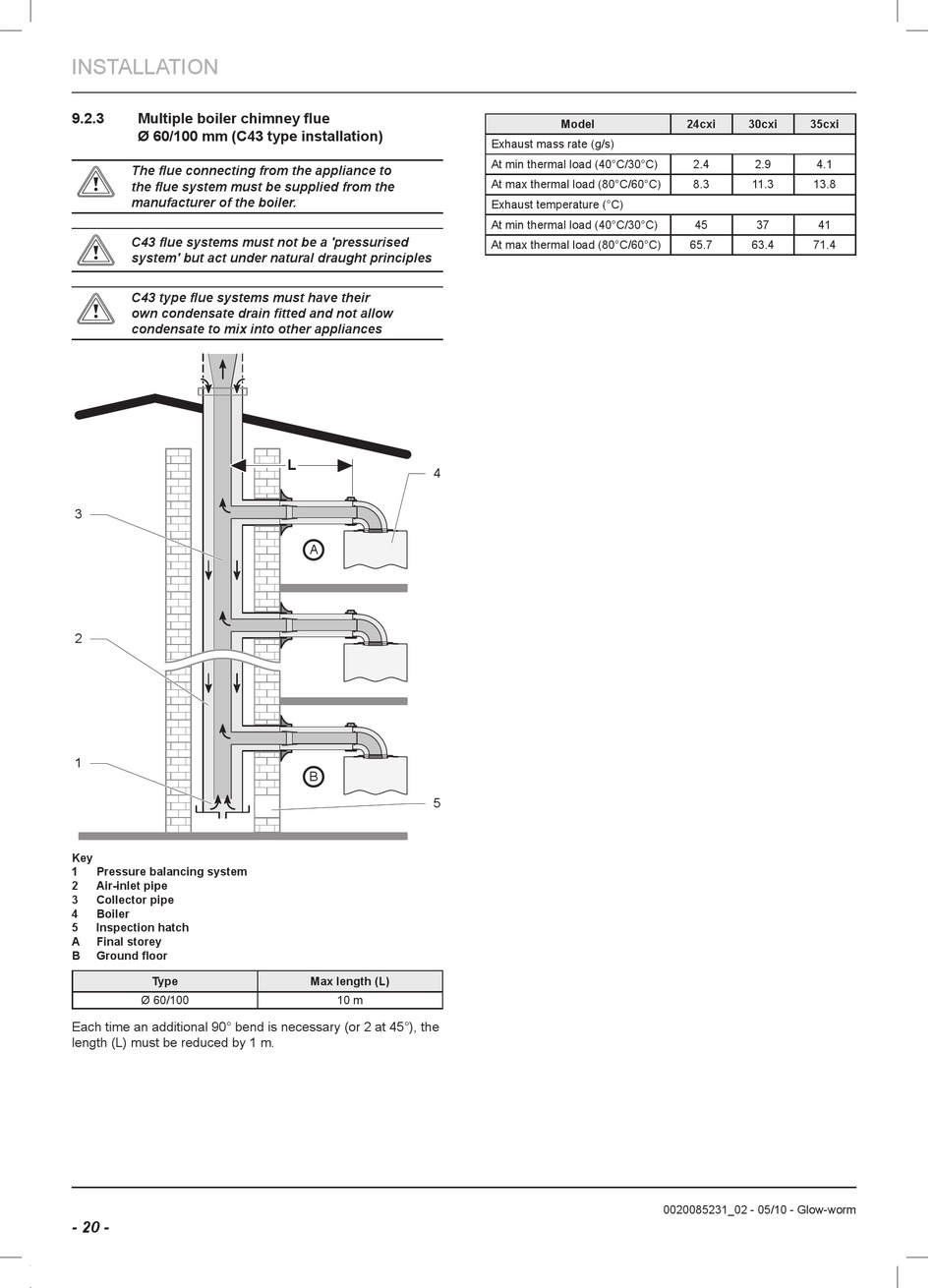

9.2.3
b
manufacturer of the boiler.
b
system' but act under natural draught principles
b
condensate to mix into other appliances
3
2
1
Key
1 Pressure balancing system
2 Air-inlet pipe
3 Collector pipe
4 Boiler
5 Inspection hatch
A Final storey
Type
Ø 60/100
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
- 20 -
L
4
A
B
5
Max length (L)
10 m
Model
Exhaust mass rate (g/s)
At min thermal load (40°C/30°C)
At max thermal load (80°C/60°C)
Exhaust temperature (°C)
At min thermal load (40°C/30°C)
At max thermal load (80°C/60°C)
0020085231_02 - 05/10 - Glow-worm
24cxi 30cxi 35cxi
2.4 2.9 4.1
8.3 11.3 13.8
45 37 41
65.7 63.4 71.4
