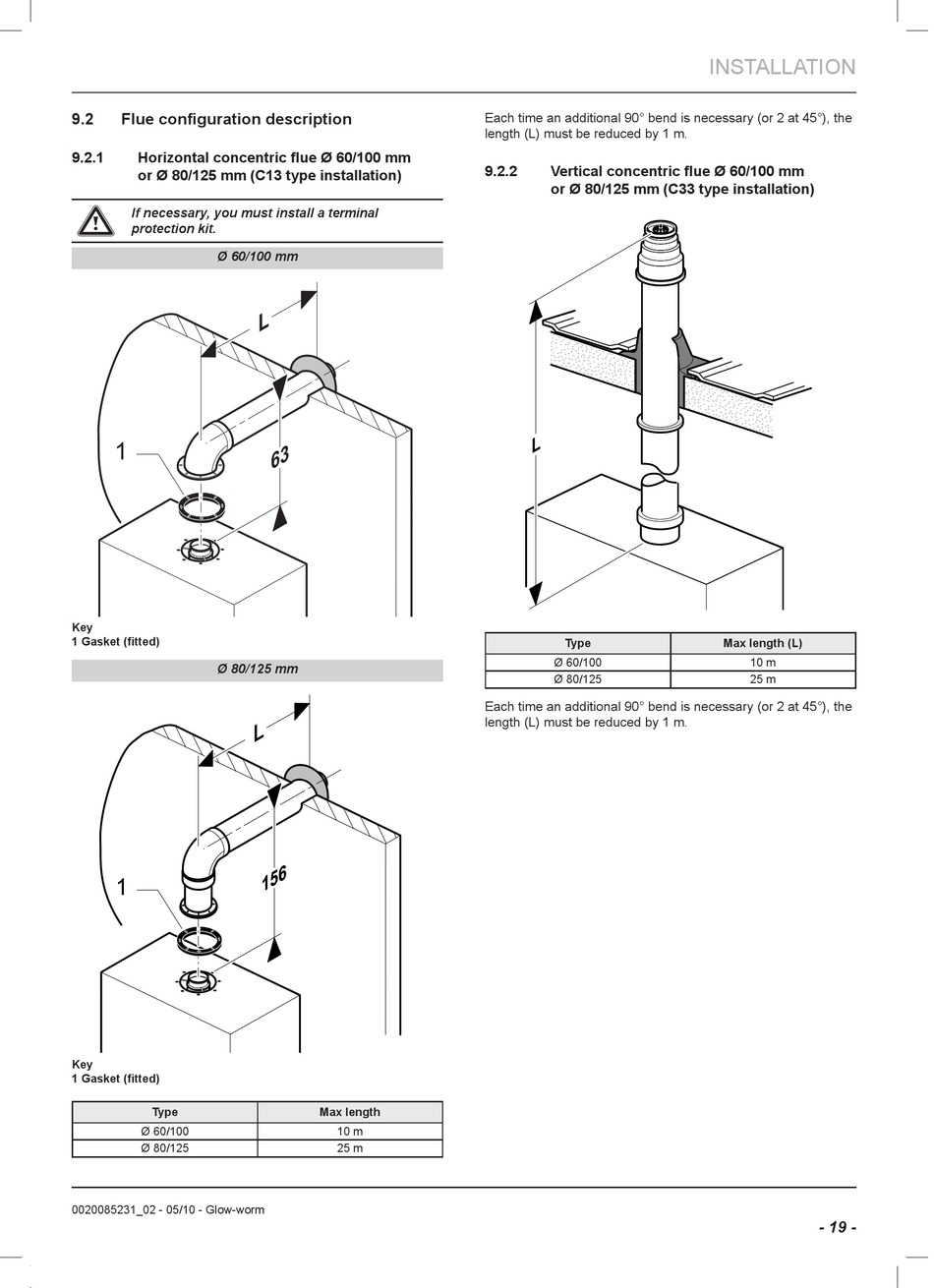

Glow-worm Ultracom 24cxi Installation And Servicing page 22

9.2
9.2.1
a
If necessary, you must install a terminal
protection kit.
Ø 60/100 mm
1
Key
Ø 80/125 mm
1
Key
Type
Ø 60/100
Ø 80/125
0020085231_02 - 05/10 - Glow-worm
L
6 3
L
Max length
10 m
25 m
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
9.2.2
L
Type
Ø 60/100
Ø 80/125
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
INSTALLATION
Max length (L)
10 m
25 m
