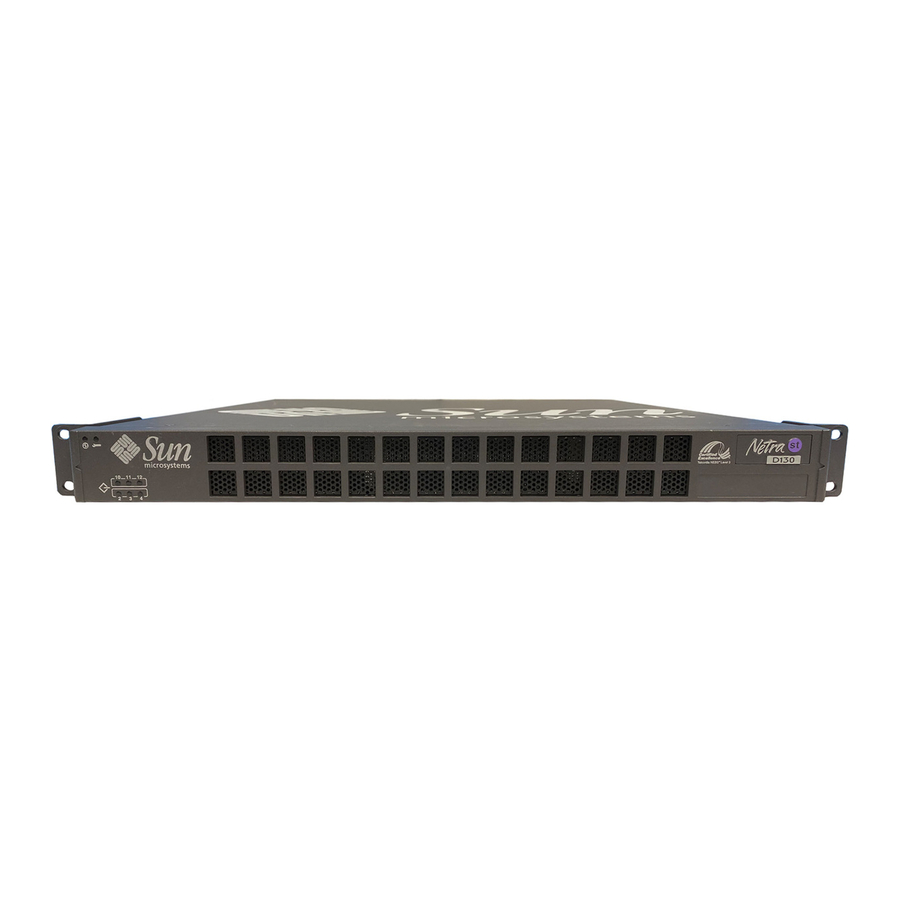

Sun Microsystems Netra st D130 Installation And Maintenance Manual
  1. Manuals
  2. Brands
  3. Sun Microsystems Manuals
  4. Server
  5. Netra st D130
  6. Installation and maintenance manual

Sun Microsystems Netra st D130 Installation And Maintenance Manual

Hide thumbs Also See for Netra st D130:
Table of Contents

Advertisement

Quick Links

Download this manual

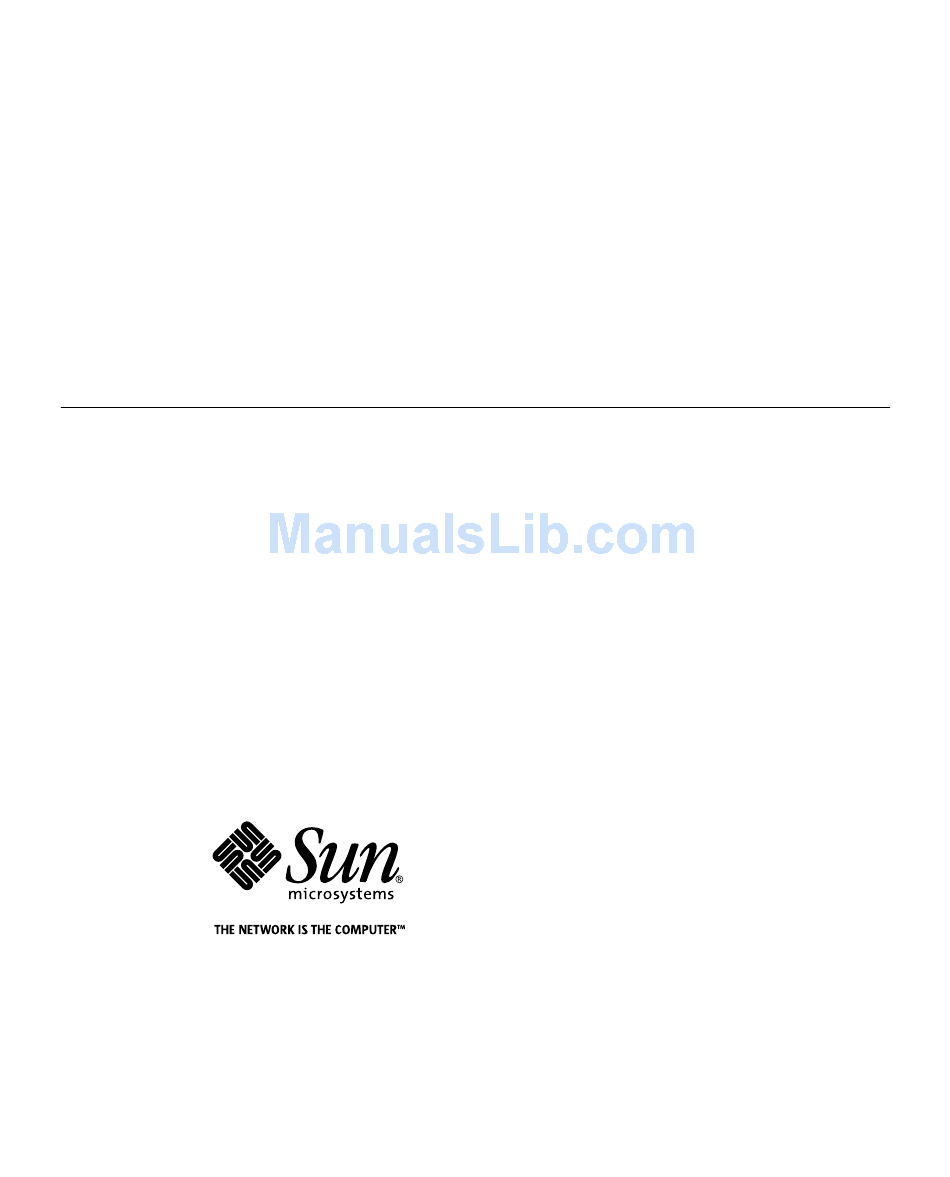

Netra™ st D130 Installation
and Maintenance Manual
Sun Microsystems, Inc.
901 San Antonio Road
Palo Alto, CA 94303-4900 USA
650 960-1300
Fax 650 969-9131
Part No.: 806-1489-10
November 1999, Revision A
Send comments about this document to: docfeedback@sun.com
Send comments about this document to: docfeedback@sun.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Netra st D130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sun Microsystems Netra st D130

Summary of Contents for Sun Microsystems Netra st D130

  • Page 1 Netra™ st D130 Installation and Maintenance Manual Sun Microsystems, Inc. 901 San Antonio Road Palo Alto, CA 94303-4900 USA 650 960-1300 Fax 650 969-9131 Part No.: 806-1489-10 November 1999, Revision A Send comments about this document to: docfeedback@sun.com Send comments about this document to: docfeedback@sun.com...
  • Page 2 Sun, Sun Microsystems, the Sun logo, SunStore, AnswerBook2, docs.sun.com, Netra, Solstice DiskSuite, SunSwift, and Solaris are trademarks, registered trademarks, or service marks of Sun Microsystems, Inc. in the U.S. and other countries. All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC International, Inc. in the U.S. and other countries. Products bearing SPARC trademarks are based upon an architecture developed by Sun Microsystems, Inc.

  • Page 3: Table Of Contents

    Preface xi Regulatory Compliance Statements xv Declaration of Conformity xix Safety Agency Compliance Statements xxi Netra st D130 Storage Enclosure Overview 1 Components at the Front of the Enclosure 2 Front Panel 2 Front Panel LEDs Components at the Back of the Enclosure 4...
  • Page 4 Adding, Removing, and Replacing Disk Drives 35 Adding a Disk Drive 35 To Add a Disk Drive 36 Performing the Software Configuration Procedures 37 Removing and Replacing a Disk Drive 39 Netra st D130 Installation and Maintenance Manual • November 1999...
  • Page 5 To Remove a Disk Drive 39 To Replace a Disk Drive 41 System Specifications 43...
  • Page 6 Netra st D130 Installation and Maintenance Manual • November 1999...
  • Page 7 Auto Termination Indication LEDs Lit in UltraSCSI or Wide SCSI Daisy-Chain 7 FIGURE 1-8 Auto Termination Indication LEDs Lit in a Narrow SCSI Daisy-Chain 8 FIGURE 1-9 Netra st D130 Rear View (AC Version) 9 FIGURE 1-10 Netra st D130 Rear View (DC Version) 9 FIGURE 1-11...
  • Page 8 Netra st D130 Rear View (AC Version) 28 FIGURE 3-2 Daisy-Chaining Netra st D130 Storage Enclosures 29 FIGURE 3-3 Daisy-Chaining a Netra st D130 Storage Enclosure with a Narrow SCSI Device 30 FIGURE 3-4 Netra st D130 Rear View (AC Version) 31 FIGURE 3-5...
  • Page 9 Tables Front Panel LEDs 3 TABLE 1-1 Auto Termination Indication LEDs 6 TABLE 1-2 AC Power Requirements 13 TABLE 2-1 DC Power Requirements 14 TABLE 2-2 Physical Specifications 43 TABLE A-1 AC Power Requirements 44 TABLE A-2 DC Power Requirements 44 TABLE A-3 Environmental Specifications 45 TABLE A-4...
  • Page 10 Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 11: Preface

    Chapter 4 gives the procedures for removing, replacing, or adding disk drives to the Netra st D130 storage enclosure. Appendix A gives the system specifications for the Netra st D130 storage enclosure. Using UNIX Commands This document may not contain information on basic UNIX® commands and procedures such as shutting down the system, booting the system, and configuring devices.

  • Page 12: Typographic Conventions

    Shell Prompts Shell Prompts TABLE P-2 Shell Prompt C shell machine_name% C shell superuser machine_name# Bourne shell and Korn shell Bourne shell and Korn shell superuser Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 13: Related Documentation

    TABLE P-3 Application Title Part Number Late-breaking information Netra st D130 Product Notes 806-1490-10 Accessing Sun Documentation Online The docs.sun.com web site enables you to access Sun technical documentation on the Web. You can browse the docs.sun.com archive or search for a specific book title or subject at: http://docs.sun.com...
  • Page 14 Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 15: Regulatory Compliance Statements

    Connections between the workstation and peripherals must be made using shielded cables to comply Shielded Cables: with FCC radio frequency emission limits. Any modifications made to this device that are not approved by Sun Microsystems, Inc. may void the Modifications: authority granted to the user by the FCC to operate this equipment.

  • Page 16: Bsmi Class A Notice

    Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. BSMI Class A Notice The following statement is applicable to products shipped to Taiwan and marked as Class A on the product compliance label. Netra st D130 Installation and Maintenance Manual • November 1999...
  • Page 17 xvii...
  • Page 18 Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 19: Declaration Of Conformity

    Agency Model Number: CYT1A (AC version) CYT1D (DC version) Product Name: Netra st D130 This product has been tested and complies with the following rules and requirements. USA—FCC Class A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
  • Page 20 Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 21: Safety Agency Compliance Statements

    Do not make mechanical or electrical modifications to the Ensure that the voltage and frequency of your power equipment. Sun Microsystems is not responsible for source match the voltage and frequency inscribed on regulatory compliance of a modified Sun product.

  • Page 22: Power Cord Connection

    48V power cord for the customer to connect to the DC power source. Always connect DC powered units to a DC power source only. xxii Netra st D130 Installation and Maintenance Manual • November 1999...
  • Page 23 Vergewissern Sie sich, daß Spannung und Frequenz Nehmen Sie keine mechanischen oder elektrischen Ihrer Stromquelle mit der Spannung und Frequenz Änderungen an den Geräten vor. Sun Microsystems, übereinstimmen, die auf dem Etikett mit den übernimmt bei einem Sun-Produkt, das geändert wurde, elektrischen Nennwerten des Geräts angegeben sind.
  • Page 24 Netzteil ab. Die Einheiten, die mit Gleichstrom betrieben werden, werden mit einem 48V-Stecker geliefert, um dem Kunden den Anschluß an die Gleichstromquelle zu ermöglichen. Schließen Sie Gleichstromeinheiten ausschließlich an Gleichstromquellen an. xxiv Netra st D130 Installation and Maintenance Manual • November 1999...
  • Page 25 Ne pas apporter de modification mécanique ou électrique trouver en présence de hautes tensions dangereuses. au matériel. Sun Microsystems n’est pas responsable de la Tout objet conducteur introduit de la sorte pourrait conformité réglementaire d’un produit Sun qui a été...
  • Page 26 Conformité aux certifications Laser Les produits Sun qui font appel aux technologies lasers sont conformes aux normes de la classe 1 en la matière. xxvi Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 27: Normativas De Seguridad

    Los objetos extraños conductores de la No realice modificaciones de tipo mecánico o eléctrico en el electricidad pueden producir cortocircuitos que equipo. Sun Microsystems no se hace responsable del provoquen un incendio, descargas eléctricas o daños cumplimiento de las normativas de seguridad en los en el equipo.

  • Page 28: Cumplimiento De La Normativa Selv

    Aviso de cumplimiento con requisitos de láser Los productos Sun que utilizan la tecnología de láser cumplen con los requisitos de láser de Clase 1. xxviii Netra st D130 Installation and Maintenance Manual • November 1999...
  • Page 29 Class 1 Laser Product Luokan 1 Laserlaite Klasse 1 Laser Apparat Laser KLasse 1 GOST-R Certification Mark xxix...
  • Page 30 Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 31: Netra St D130 Storage Enclosure Overview

    For information on the drives, refer to the documents that you received with them. The Netra st D130 disk unit is a single-ended UltraSCSI unit that is 1.73 inches (or 1U) in height. The thinness of the unit enables you to stack up to 40 units in a single 72-inch tall rack.

  • Page 32: Components At The Front Of The Enclosure

    The front panel can be removed to allow access to the hard disk drives. The Netra st D130 storage enclosure can accept up to three 1-inch high drives. Removing the Front Panel FIGURE 1-2 Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 33: Front Panel Leds

    Amber A component other than a disk You must replace the entire drive has failed, such as the Netra st D130 storage power supply or a fan. The enclosure. Remove all disk System Summary Fault LED drives before returning the does not indicate if a disk drive enclosure (see “To Remove a...

  • Page 34: Components At The Back Of The Enclosure

    Components at the Back of the Enclosure Power connector Power switch SCSI IN port SCSI OUT port Back panel LEDs SCSI ID switch Netra st D130, Rear View FIGURE 1-4 Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 35: Power Switch

    Power Switch The Netra st D130 storage enclosure has one rocker power switch to control the power supply. Neutral Standby Power Switch FIGURE 1-5 On – The power supply provides power to the enclosure. Neutral – When the switch is released from the ON position, the switch settles into the Neutral position and the power supplies remain on.

  • Page 36: Back Panel Leds

    The Netra st D130 storage enclosure is the first device in the UltraSCSI or wide SCSI daisy-chain; another device follows it. The Netra st D130 storage enclosure is the last or only device in the UltraSCSI or wide SCSI daisy-chain.

  • Page 37: Figure 1-8 Auto Termination Indication Leds Lit In Ultrascsi Or Wide Scsi Daisy-Chain

    Note – UltraSCSI devices (such as the Netra st D130 storage enclosure) at the end of a daisy-chain do not require a terminator, but some wide SCSI devices at the end of a daisy-chain do require a terminator. Refer to the documentation that came with your wide SCSI device to determine if it needs a terminator or not.

  • Page 38: Internal Components

    FIGURE 1-9 Internal Components Power Supply The Netra st D130 storage enclosure has a single power supply that provides power to the internal components. The power supply in your system is either AC- or DC- powered. Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 39: Cooling System

    The power supply on the DC version converts incoming -48 VDC voltage to outgoing DC voltages. The DC version has two connectors so you can connect a single Netra st D130 storage enclosure to two different -48V DC power sources. Each DC power source should have a 10-amp circuit breaker.

  • Page 40: Figure 1-12 Airflow Requirements (Front And Rear)

    Airflow Requirements (Front and Rear) FIGURE 1-12 3. Airflow requirements differ for an open-rack system and a closed-rack system, as shown in the following illustrations. Airflow Requirements (Open Rack) FIGURE 1-13 Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 41: Disk Drives

    SCSI ID switch at the rear of the enclosure. Refer to the drive LEDs on the front of the Netra st D130 storage enclosure or the SCSI ID switch at the rear of the enclosure to determine the SCSI IDs that you have assigned to the drives in your enclosure.

  • Page 42: Foam Fillers

    Foam Fillers If you ordered a Netra st D130 storage enclosure with fewer than three disk drives, foam fillers occupy the holes for the empty slots. The foam fillers are air baffles. They allow the storage enclosure to maintain maximum cooling. If any slot does not contain a disk drive, you must fill the slot with a foam filler so the unit will cool properly.

  • Page 43: Electrical Requirements And Cable Assembly

    < 2.0 amps @ 100 VAC (150 W) Max. surge current 100 amp peaks Overcurrent protection devices must be provided as part of each host equipment rack. Circuit breakers are located between the AC source and the Netra st D130 storage enclosure.

  • Page 44: Dc Source Site Requirements

    Electrically isolated from any AC source Reliably connected to earth (the battery room positive bus is connected to ground) Capable of providing up to 200 watts of continuous power per feed pair Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 45: Overcurrent Protection Requirements

    Note – The DC version of the Netra st D130 storage enclosure must be installed in a restricted access location. Per the intent of the National Electrical Code, a restricted access location is an area intended for qualified or trained personnel only and has access controlled by some sort of locking mechanism, such as a key lock or an access card system.

  • Page 46: Assembling The Dc Input Power Cable

    Assembling the DC Input Power Cable Follow these instructions to assemble the DC input power cable, which will be used to connect the DC power supply in your Netra st D130 storage enclosure to the DC power source. Required Connection Materials...

  • Page 47: Figure 2-2 Strain Relief Housing

    Strain Relief Housing FIGURE 2-2 Cage Clamp Operating Lever FIGURE 2-3 The following figure shows the power connector on the DC power supply. -48V -48V RTN Power Connector on the DC Power Supply FIGURE 2-4 Chapter...

  • Page 48: Figure 2-5 Stripping The Insulation From The Wire

    DC connector where you want to insert the first wire and press down on the cage clamp operating lever. This opens the cage clamp for this section of the DC connector. Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 49: Figure 2-6 Opening The Dc Connector Cage Clamp Using The Cage Clamp Operating Lever

    Top of connector Opening the DC Connector Cage Clamp Using the Cage Clamp Operating FIGURE 2-6 Lever You can also open the DC connector cage clamp by inserting a small flat-blade screwdriver into the rectangular hole directly above the hole in the DC connector where you want to insert the first wire and pressing down on the screwdriver.

  • Page 50: Figure 2-7 Opening The Dc Connector Cage Clamp Using A Screwdriver

    8. Repeat Step 3 through Step 7 to create a second DC input power cable. The first DC input power cable should be connected to DC power source A and the second DC input power cable should be connected to DC power source B. Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 51: Figure 2-9 Inserting The Bottom Portion Of The Strain Relief Housing

    If you need to remove a wire from the DC connector, insert the cage clamp operating lever or a small screwdriver into the slot directly above the wire and press down FIGURE 2-6 FIGURE 2-7 To Install the Strain Relief Housings 1.

  • Page 52: Figure 2-10 Routing The Wires Out Of The Bottom Portion Of The Strain Relief Housing

    5. Lower the top portion of the strain relief housing so that the three prongs on the top portion insert into the openings in the DC connector, and push the top and bottom portions of the strain relief housing together until they snap into place. Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 53: Isolating The Chassis Ground Connection

    FIGURE 2-12 Isolating the Chassis Ground Connection Every Netra st D130 storage enclosure is shipped out of the factory with the chassis ground connected to the common output return through two screws on the power supply at the rear of the enclosure. If you want to isolate this connection, follow the instructions in the Netra st D130 Product Notes.
  • Page 54 Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 55: Installing The Netra St D130 Storage Enclosure

    “Installing the Netra st D130 Storage Enclosure” on page 27 “Powering On and Off” on page 33 Hardware Requirements The following hardware is included with every Netra st D130 storage enclosure: UltraSCSI cables Power connections, depending on the type of storage enclosure: AC version –...

  • Page 56: Preparing For Installation

    Netra st D130 storage enclosure must be capable of UltraSCSI speeds. You can connect a Netra st D130 storage enclosure to a wide or narrow SCSI-capable host adapter, but in such a case, the enclosure performs at a lower speed.

  • Page 57: To Set The Scsi Ids For The Drives

    Netra st D130 storage enclosure. Verify that the SCSI IDs that you want to use for the drives in your Netra st D130 storage enclosure are not being used already by your host system or by other peripherals connected to your host system.

  • Page 58: Connecting The Scsi Cables

    Netra st D130 Rear View (AC Version) FIGURE 3-2 4. Determine if this Netra st D130 storage enclosure is at the beginning or the end of the SCSI chain. If this storage enclosure is at the end of the SCSI chain (you are not connecting any other peripherals to your host system), go to “Connecting the Power Cable”...

  • Page 59: Figure 3-3 Daisy-Chaining Netra St D130 Storage Enclosures

    5. Get the .36-meter SCSI cable from the ship kit. 6. Connect one end of the SCSI cable to the SCSI OUT port of the first Netra st D130 storage enclosure. 7. Connect the other end of the SCSI cable to the SCSI IN port on the second Netra st D130 storage enclosure or peripheral.

  • Page 60: Connecting The Power Cable

    Device Connecting the Power Cable The procedures for connecting the power cable vary depending on whether you have the AC or the DC version of the Netra st D130 system. “AC Version” on page 31 “DC Version” on page 31...

  • Page 61: Figure 3-5 Netra St D130 Rear View (Ac Version)

    5. Secure the other end of the grounding cable to the earth ground in the building. If you are installing the Netra st D130 storage enclosure in a rack, you can secure the grounding cable to a a proper grounding point on the rack, as long as the rack is properly grounded to the earth ground in the building.

  • Page 62: Figure 3-7 Connecting The Dc Input Power Cable To The Dc Connector

    To disconnect the DC input power cable from the DC connector, squeeze the two tabs on the sides of the DC input power cable and gently disconnect the DC input power cable from the DC power supply. Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 63: Powering On And Off

    3. Verify that the storage enclosure is running properly. Refer to Chapter 1 “Netra st D130 Storage Enclosure Overview” for descriptions of the LEDs at the front and back of the Netra st D130 storage enclosure and what each LED indicates.

  • Page 64: To Power Off The Storage Enclosure

    Caution – Even with the power switch in the standby position, power remains connected to the enclosure, and potentially dangerous voltages is present in the power supply. You must unplug the power cable to completely remove power to the enclosure. Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 65: Adding, Removing, And Replacing Disk Drives

    Adding, Removing, and Replacing Disk Drives This chapter gives hardware and software instructions for adding, removing, and replacing disk drives in a Netra st D130 storage enclosure. This chapter is organized as follows: “Adding a Disk Drive” on page 35 “Removing and Replacing a Disk Drive”...

  • Page 66: To Add A Disk Drive

    Note – You cannot mix and match capacities of disk drives in the Netra st D130 storage enclosure. To Add a Disk Drive 1. Remove the front panel by pressing the latches on both ends and pulling the panel away from the enclosure.

  • Page 67: Performing The Software Configuration Procedures

    When you add a disk drive, you must create a new device entry for the drive in the /devices, /dev/dsk, and /dev/rdsk hierarchies. The new drive is assigned a name associated with the slot in the Netra st D130 storage enclosure into which the drive was installed.
  • Page 68 For example, if the Netra st D130 storage enclosure is connected to a host adapter corresponding to controller c2, and a drive was added to the second slot in a Netra st D130 storage enclosure with the SCSI ID switch in the leftmost position (which assigns SCSI IDs 2, 3, and 4 to the drives inside the enclosure), the new drive appears as /dev/dsk/c2t3d0s[0-7] and /dev/rdsk/c2t3d0s[0-7].

  • Page 69: Removing And Replacing A Disk Drive

    In all cases the hard disks are hot-pluggable. To Remove a Disk Drive Caution – If the Netra st D130 storage enclosure is running and a drive slot does not contain a disk drive or foam filler, the Netra st D130 storage enclosure will not cool properly and may overheat.

  • Page 70: Figure 4-3 Removing And Replacing A Disk Drive

    Netra st D130 storage enclosure. If you are returning a defective enclosure, leave the drive bays empty. If you are not returning a defective enclosure, insert a foam filler in the empty drive slot. Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 71: To Replace A Disk Drive

    To Replace a Disk Drive Note – You cannot mix and match capacities of disk drives in the Netra st D130 storage enclosure. 1. If necessary, refer to the documentation that came with your Veritas VxVM or Solstice DiskSuite software for any procedures that you might have to perform before you can replace the disk drive.
  • Page 72 Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 73: System Specifications

    A P P E N D I X System Specifications This appendix gives the system specifications for the Netra st D130 storage enclosure. “Physical Specifications” on page 43 “Electrical Specifications” on page 44 “Environmental Specifications” on page 45 Physical Specifications...

  • Page 74: Table A-2 Ac Power Requirements

    100 amp peaks DC Power Requirements TABLE A-3 Electrical Element Requirement Voltage -48 VDC Input current < 4.0 amps @ -40 VDC (150 W) Max. input surge current 20 amps peaks Netra st D130 Installation and Maintenance Manual • November 1999...

  • Page 75: Table A-4 Environmental Specifications

    Environmental Specifications Environmental Specifications TABLE A-4 Climate Control Location Minimum to Maximum Range Temperature (dry bulb) Operating 0˚C to 40˚C (32˚F to 104˚F) Storage -25˚C to 65˚C (-13˚F to 149˚F) Transit -25˚C to 65˚C (-13˚F to 149˚F) Short term (96 consecutive hrs) Operating -5˚C to 55˚C (23˚F to 131˚F) Nonoperating...
  • Page 76 Netra st D130 Installation and Maintenance Manual • November 1999...
  • Page 77 Index overcurrent protection, 15 power requirements, 14, 44 AC version power supply, 9 connecting power cables, 31 Declaration of Conformity, xix power requirements, 13, 44 description, 1 power supply, 9 Disk Drive LED, 4 airflow requirements, 10 disk drives Auto Termination Indication LED, 6 adding, 36 description, 11 naming conventions, 37...
  • Page 78 SCSI cables, connecting, 28 SCSI ID switch, 5 SCSI IDs, setting, 5, 27 SCSI ports, location, 28 software considerations, 12 Solaris device entry, 37 source site requirements AC version, 13 DC version, 14 Netra st D130 Installation and Maintenance Manual • November 1999...
