Summary of Contents for Sundance Spas Hawthorne

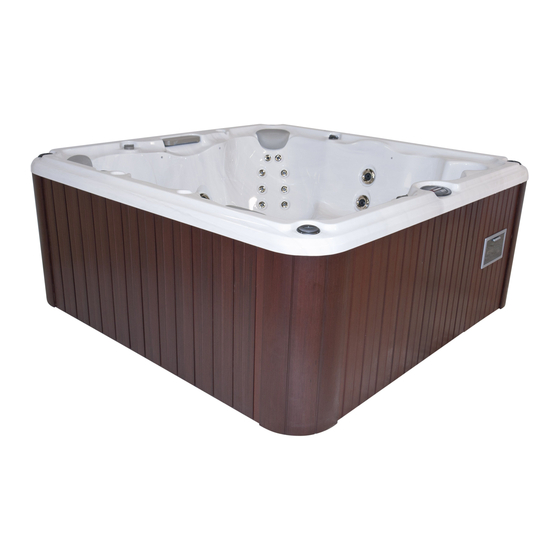

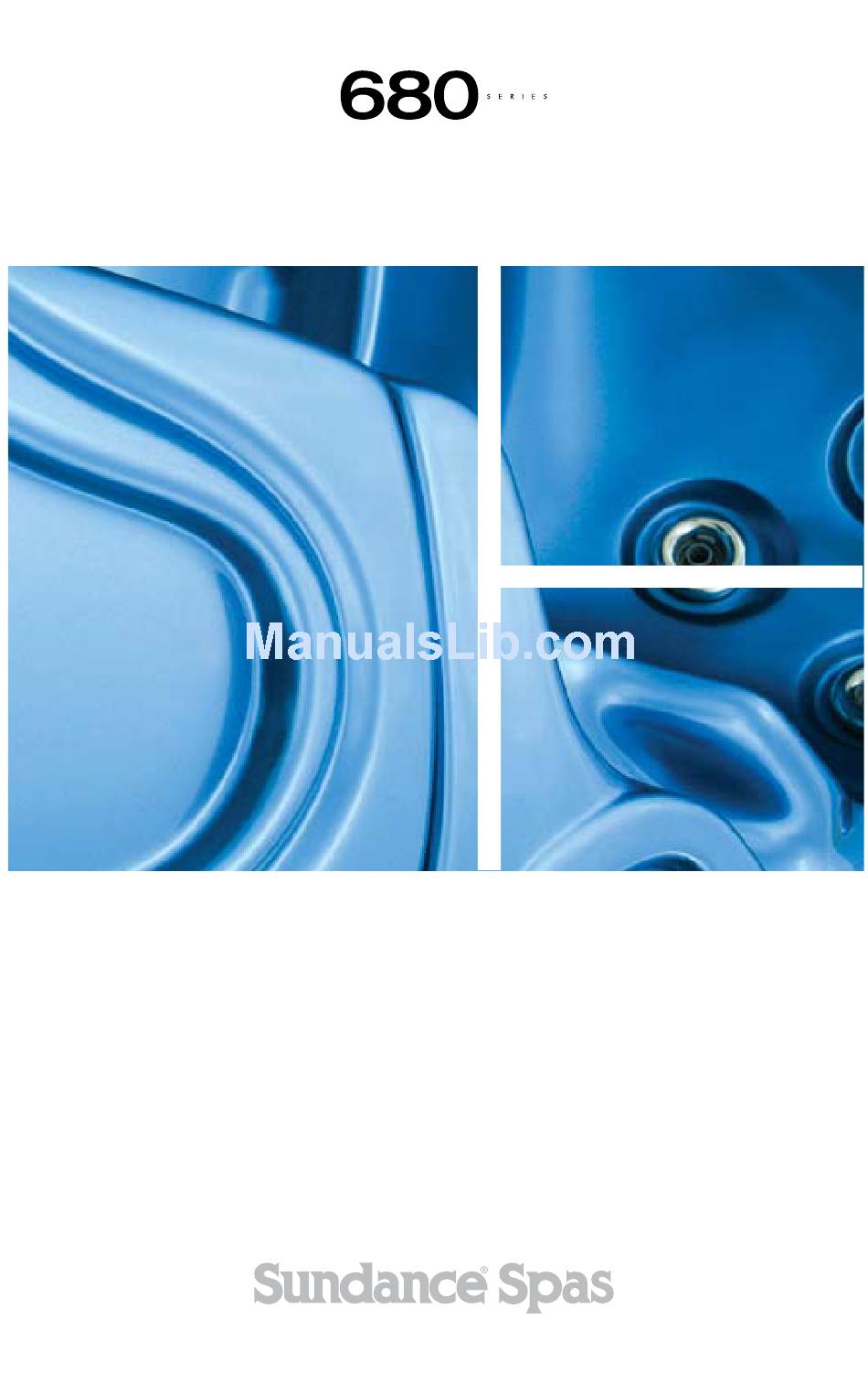

- Page 1 Hawthorne • Hartford O W N E R ´ S M A N U A L 6530-681, Rev. B...
- Page 2 Attention New Spa Owner! Congratulations on the purchase of your new Sundance® 680 series spa! The following is a list of automated functions and maintenance recommendations for your new spa. Automated functions have been listed below in an attempt to suppress any operational concerns you may have during startup and the first 24-hours of ownership! Maintenance recommendations are listed in an attempt to stress their importance in protecting your new spa.
-
Page 3: Table Of Contents
Table of Contents Important Spa Owner Information ..........1 FCC Notice ................... 1 Important Safety Instructions ............ 2 Important CSA Safety Instructions (Canada only) ......4 Hyperthermia ................. 5 Cautions ..................6 General Electrical Safety Instructions ........... 6 Choosing A Location ..............7 Outdoor Location ................ - Page 4 11.0 Spa Maintenance ............... 25 11.1 Cleaning The Filter Cartridges ............ 25 11.2 Draining and Refilling ..............26 11.3 Pillow Care .................. 27 11.4 Cleaning The Spa Interior ............27 11.5 Maintaining the Cover ..............27 11.6 Maintaining The Synthetic Cabinet ..........27 11.7 Winterizing ...................
-
Page 5: Important Spa Owner Information
1.0 Important Spa Owner Information Your Sundance® 680 series spa is constructed to the highest standards and is capable of providing many years of trouble-free use. However, because heat retentive materials are utilized to insulate the spa for efficient operation, an uncovered spa surface and wall fittings directly exposed to sunlight and high temperatures for an extended period is subject to permanent damage or discoloration. -
Page 6: Important Safety Instructions
3.0 Important Safety Instructions READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY! When installing and using this electrical equipment, basic safety precau- tions should always be followed, including: 1. WARNINg: To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. - Page 7 National Electrical Code/USA, ANSI/NFPA 70. The disconnect must be readily accessible and visible to the spa occupant but installed at least 5 feet (1.5m) from the spa water. 8. WARNINg: To Reduce the Risk of Injury: 9. The water in a spa should never exceed 104°F (40°C). Water temperatures between 100°F (38°C) and 104°F (40°C) are consid- ered safe for a healthy adult.
-
Page 8: Important Csa Safety Instructions (Canada Only)
3.1 Important CSA Safety Instructions (Canada only) When using this electrical equipment, basic safety precautions should always be followed, including the following: 1. READ AND FOLLOW ALL INSTRUCTIONS. 2. A green colored terminal or a terminal marked G, Gr, Ground, Grounding or the symbol* is located inside the supply terminal box or compartment. -
Page 9: Hyperthermia
WARNINg: Pregnant or possibly pregnant women should consult a physician before using a spa. WARNINg: Water temperature in excess of 38°C (104°F) may be injurious to your health. WARNINg: Before entering the spa, measure the water temperature with an accurate thermometer. WARNINg: Do not use a spa immediately following strenuous exercise. -
Page 10: Cautions
3.3 Cautions 1. Persons suffering from heart disease, diabetes, high or low blood pressure, and any condition requiring medical treatment, pregnant women, the elderly, or infants should consult with a physician before using a spa. 2. The Consumer Products Safety Commission/USA has stated that the water temperature in a spa should not exceed 104°F (40°C). -
Page 11: Choosing A Location
within 5 feet (1.5m) of the spa, or copper clad grounding rod buried within 5 feet (1.5m) of the spa. Bonding wire must be at least No. 8 AWG (8.4mm ) solid copper wire. This is a most important safety assurance feature. -
Page 12: Indoor Location
• The closeness to trees and shrubbery (remember that leaves and birds could create extra work in keeping the spa clean). • A sheltered environment (less wind and weather exposure can result in lower operation and maintenance costs). • The overall enhancement of your environment. It is preferable not to place the spa under an unguttered roof overhang since run-off water will shorten the life expectancy of the spa cover. -
Page 13: Power Requirements
• WARRANTY: Damage caused by not following these guidelines or any improper installation not in accordance with local codes or au- thorities is not covered under the spas warranty. Please consult your local state or city building ordinances. WARNINg: In addition to maintenance of filters and water chemistry, proper ventilation is recommended to reduce the risk of exposure to viruses and bacteria that could be present in the air or water. -
Page 14: Electrical Wiring Instructions
6.0 Electrical Wiring Instructions IMPORTANT NOTICE: The electrical wiring of this spa must meet the requirements of the National Electrical Code/USA (NEC) and any applicable state or local codes. The electrical circuit must be installed by a qualified electrician and approved by a local building/electrical inspection authority. - Page 15 7. Select the power supply inlet you want to use (Figure-A). Feed power cable to control box, then install it through the large opening provided in the bottom side of the box. 8. Connect wires, color to color, on terminal blocks TB1 and TB3 (Fig ure C, page 12).
-
Page 16: Spa Fill Up Procedure
Figure-C Main TB1 And TB3 Terminal Block Connections to Circuit Green Board All North American Models: 240 VAC, 3-Wire Connection (60Hz) 7.0 Spa Fill Up Procedure FOR BEST RESULTS, READ EACH STEP IN ITS ENTIRETY BE- FORE PROCEEDING WITH THAT STEP. 1. -
Page 17: Activate Jets Pumps
IMPORTANT: Always fill your spa through the filter bucket after draining. Failure to do so may cause air to be trapped in either pump, preventing the pump from circulating water. Remove the hose and replace the filter cartridge. DO NOT OVERTIGHTEN! FINGER TIGHT ONLY! 3. - Page 18 increases or decreases by one degree each time one of these but- tons is pressed. • The heater will turn off when the temperature corresponding to the thermostat setting is achieved. Important Heater Details: • The maximum temperature for which the spa can be set is 104°F (40°C) and the minimum is 65°F (18°C).
- Page 19 Water Fill Volume by Model Spa Model Approximate Fill Volume Sodium Dichlor Hawthorne ..400 US Gallons (1,514 Liters) .... 10 oz. Hartford ....340 US Gallons (1,287 Liters) ....8.5 oz. Massage Selector 10. Leave spa cover open during this step to allow...
- Page 20 CAUTION: Never leave your spa unattended for any reason while the cover is open and accessible to small children and animals. CAUTION: To prevent the unlikely possibility of contracting a waterborne illness, maintain water chemistry within step 6 parameters. If you or other bathers experience such a condi- tion, discontinue use and seek medical attention.
-
Page 21: Control Functions
8.0 Control Functions 8.1 Control Panel A. LED Display: Can display current water temperature (default display), water temperature set point, selected filtration/heating mode, and error messages. B. Heat Indicator: Lit when heater is on. C. Warmer ( + ) Button: Increases water temperature set point. D. -
Page 22: General Spa Features And Controls
8.2 general Spa Features And Controls Hartford model illustrated - Jet locations and features will vary by model. Control Panel floor gravity drain, heater return and Headrest Pillows (4 ea.) optional CD ozone return. Air Controls (4 ea.) 11. Filter lid with four cup holders and two Cup Holders (6 ea.) underlying filter cartridges. -
Page 23: Operating Instructions
9.0 Operating Instructions The spa control system has automatic functions that operate upon start-up and normal operation to protect the system. Upon power up, the readout displays the following information: 1. Control panel displays current software Spas with Spas with Spas without Spas without Circulation... -
Page 24: Optional Multi-Colored Led Light System Operation
9.4 Optional Multi-Colored LED Light System Operation The multi-colored LED spa light offers seven constant color varia- tions and three unique random modes for enhanced spa enjoy- ment. Press the light button once to activate the first light mode “Random Fade”, then continue pressing the button to either turn the light off or to select one of seven constant colors, random solid color mode or strobe mode as illustrated below. -
Page 25: Adjusting Individual Jet Flow
9.5 Adjusting Individual Jet Flow The water flow through individual jets in your spa can be adjusted or turned off by rotating the outside jet ring. Many jets also offer an adjustable center nozzle that allows you to change the water discharge angle. Simply tilt the center nozzle in these jets to the desired angle to customize your personal massage. -
Page 26: Without Circulation Pump Option
10.1 Standard Filtration/Heating Modes For Models without Circulation Pump Option Standard filtration/heating modes (F1-F3) are typically selected by cus- tomers in cold climates where heat up times are extended due to lower ambient temperatures. In either of these modes, the water temperature is regulated by the set temperature, low-speed jets pump 1 and heater which turns on as needed. -
Page 27: Filtration Modes For Spas Without Circulation Pump Option
10.6 Filtration Modes for Spas Without Circulation Pump Option If your spa is equipped with the circulation pump option, disregard this section and refer to page 24 for filter cycle programming details. Standard Filtration/Heating Modes (F1 - F3) (Heater automatically turns on during any heat call while in any Standard mode). -
Page 28: Filtration Modes For Spas With Circulation Pump Option
10.7 Filtration Modes for Spas with Circulation Pump Option If your spa is not equipped with the circulation pump option, disregard this section and refer to page 23 for filter cycle programming details. Standard Filtration/Heating Modes (F0 - F3) (Heater automatically turns on during any heat call while in any Standard mode). -
Page 29: Spa Maintenance
11.0 Spa Maintenance Regular maintenance of your spa will help it retain its beauty and per- formance. Your authorized Sundance dealer can supply you with all the information, supplies, and accessory products you will need to accom- plish this. To Remove: To Install: 11.1 Cleaning The Filter Cartridges Turn... -
Page 30: Draining And Refilling
life expectancy of a Sundance filter cartridge is approximately two years with proper care and water quality maintenance. Replacement cartridg- es can be purchased from your authorized Sundance dealer. 11.2 Draining and Refilling About every 3 months, you will want to replace the spa’s water. The fre- quency depends on a number of variables including the amount of use, attention paid to water quality maintenance, etc. -
Page 31: Pillow Care
6. Coil drain hose up and place back inside the spa equipment bay (Figure-A). 7. Reinstall synthetic cabinet door and screws, then refer to the “Spa Fill Up Procedure” (page 12). 11.3 Pillow Care Remove and clean each headrest by gently grasping both ends in each hand and pulling upward to release each pillow “snap.”... -
Page 32: Winterizing
11.7 Winterizing Your Sundance® spa is designed to automatically protect itself against freezing when operating properly. During periods of severe freezing tem- peratures, you should check periodically to be certain that the electrical supply to the spa has not been interrupted. In extreme, bitter cold weather less than -20°F (-29°C), choose the F3 “Standard”... -
Page 33: Water Quality Maintenance
12.0 Water Quality Maintenance Maintaining the quality of the water within specified limits will serve to enhance your enjoyment and prolong the life of the spa’s equipment. It is a fairly simple task, but it requires regular attention because the water chemistry involved is a balance of several factors. -
Page 34: Optional Cd Ozone Water Maintenance System
these additives. 12.3 Optional CD Ozone Water Maintenance System If you have elected to have your spa equipped with the optional Sun- dance CD ozone water purification system you will find that your water stays fresh and clear with significantly less chemical sanitizer usage. You will also probably be able to go longer between complete spa drain- ings. -
Page 35: Panel Displays Sn1
13.4 Panel displays SN1 Open sensor (heater is disabled) or shorted sensor (spa is deactivated). The high-limit temperature sensor is not functioning. Your authorized Sundance dealer must repair this. 13.5 Panel displays SN2 Open or shorted sensor (heater disabled). The temperature sensor is not functioning. -
Page 36: Panel Displays Ice
cartridge 1. Hold your garden hose over the filter cartridgte 1 wall fit- ting (with grate) while using a rag as a seal around hose end. Ask a helper to turn on water for 30 seconds, then turn off. Reinstall filter cartridge 1 and check spa (sec. -
Page 37: Poor Jet Action
• Jets may all be closed in spa. Verify all jets are in the open “on” posi- tion (sec. 9.5, page 21). • Pump may not be properly primed. This can happen after the spa is drained and refilled. Press the JETS 1 button on the control panel several times, never leaving the motor running for more than 5 to 10 seconds at a time. -
Page 38: Circuit Diagram For Models Without Circulation Pump Option
15.0 Circuit Diagram For Models Without Circulation Pump Option This wiring diagram is used for all Hawthorne and Hartford 240V 60Hz North American spa models without the Circulation Pump Option. Page 34... -
Page 39: Circuit Diagram For Models With Circulation Pump Option
16.0 Circuit Diagram For Models With Circulation Pump Option This wiring diagram is used for all Hawthorne and Hartford 240V 60Hz North American spa models with the Circulation Pump Option. Page 35... -
Page 40: Optional Sunsound Stereo Receiver Functions
17.0 Optional SunSound Stereo Receiver Functions 16 17 To start enjoying your new Sundance SunSound Stereo Receiver, please read the following operation instructions in their entirety. Power Button: Press PWR (Power) to turn deck on or off. Equalization Button: Repeatedly press EQ/LD to choose from DSP Off, Jazz, Pop, Classic, Rock or Vocal equalization options. - Page 41 Source Button: Press Source to change input from audio or CD mode to auxiliary mode. Press a second time to switch back. Volume Buttons: Press + (Volume Up) or - (Volume Down) to increase or decrease volume level. SEL Button: Press SEL to choose control function: 1) Bass 2) Treble 3) Balance...
- Page 42 16 17 13. Preset 4/RDM Button: In tuner mode, any station can be stored as preset 4 by simply pressing and holding this button for several seconds. To recall the station preset, simply press and release this button. In CD mode press this button to randomly play song tracks.
- Page 43 down to the next or previous track. To fast forward or rewind through a track, simply press and hold either button as desired during CD playback. 18. Reset Button (Not Illustrated): If keys do not function at all and the unit appears to be "locked up", use a ballpoint pen to press the Reset Button under the front panel (press OPEN to flip down front panel for access).
- Page 44 16 17 23. Display information DISP: • When a retail music CD is inserted, press DISP (6) to change modes as follows: Clock (displays for 5 seconds only). CD track no. / Playtime • When a CD containing MP3 files is inserted, press DISP (6) change modes as follows: Clock (displays for 5 seconds only).
- Page 45 Sampling frequency: 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48kHz Bit rates: 8-320 kbps MP3 decoding format: MPEG 1 & 2 Audio Layer 3 Folder names and file names can be displayed with up to 8 characters (see Display key). 10) The characters A-Z, 0-9 can be displayed on this unit, other characters may not be displayed correctly.
- Page 46 Page 42...
- Page 47 The following UL requirements must be observed for all spas with optional stereo components installed. “CAUTION - Risk of Electric Shock. Do not leave compartment door open”; “CAUTION - Risk of Electric Shock. Replace components only with identical components”; and Do not operate the audio/video controls while inside the spa.”...
