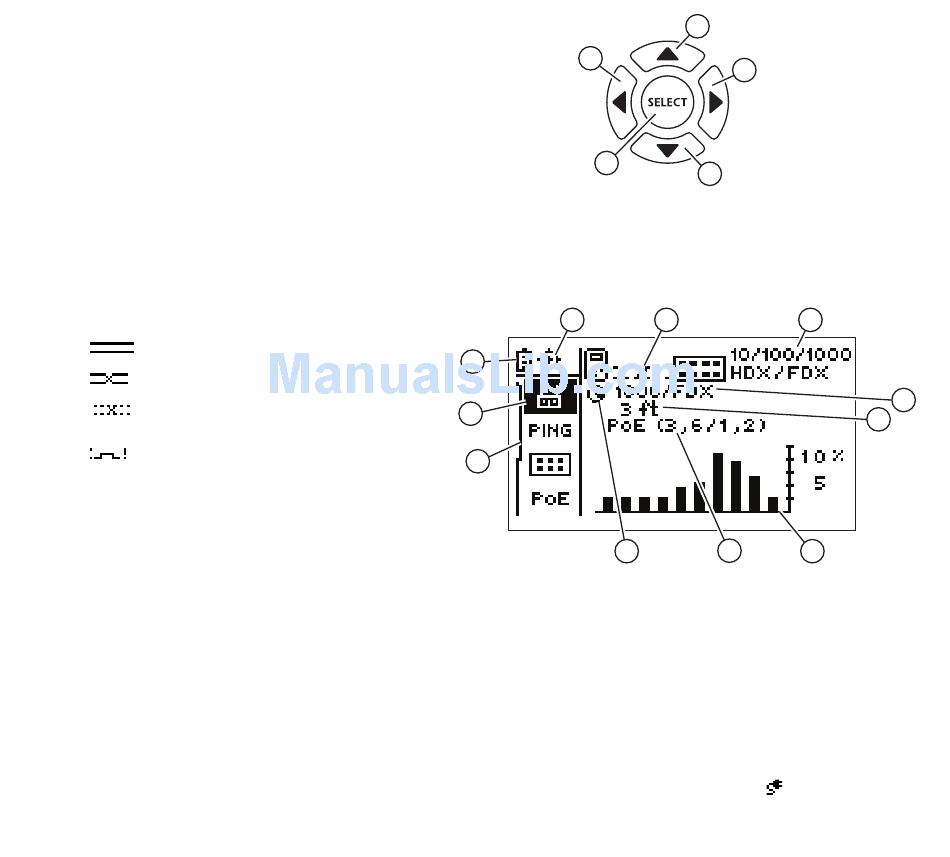

1. Scroll up thru the functions
2. Scroll right within a function
3. Scroll down thru the functions
4. Scroll left within a function
5. Select a function

Is this an active RJ45 LAN port?

Note: If both the RJ45 LAN and 1000BASE-X fiber ports are connected to your network, LinkRunner Duo will try to
link to the RJ45 LAN port first. If link has been established over fiber and you connect also to the RJ45 LAN port, no
change in link will occur.
Cable/Link Status:
1.
Straight patch
Crossover patch
Unknown patch (Auto-MDIX
port on hub or switch)
Link Level (displays when low)
Advertised speed/duplex
2.
Actual link speed/duplex
3.
Cable length from LinkRunner Duo to
4.
cable end or device (copper only)
Navigation arrows. Indicates which buttons are active.
5.
Highlighted function is the active function. While a function is active, you can scroll to other functions.
6.
Press the center button to select a new function.
Activity indicator.
7.
Network Utilization logarithmic scale. Above 10% Utilization, scale changes to 100%.
8.
PoE voltage present. Wire pairs with PoE voltage show in parentheses.
9.
Scroll bar. Indicates relative position on the page.
10.
Battery indicator. Shows voltage level as low, medium, or high. The AC adapter icon
11.
the AC adapter (part of the optional LI-ion battery pack) is being used.
4
5
5
11
6
10
7
1
2
3
1 2
9 8
will be displayed if
3
4
