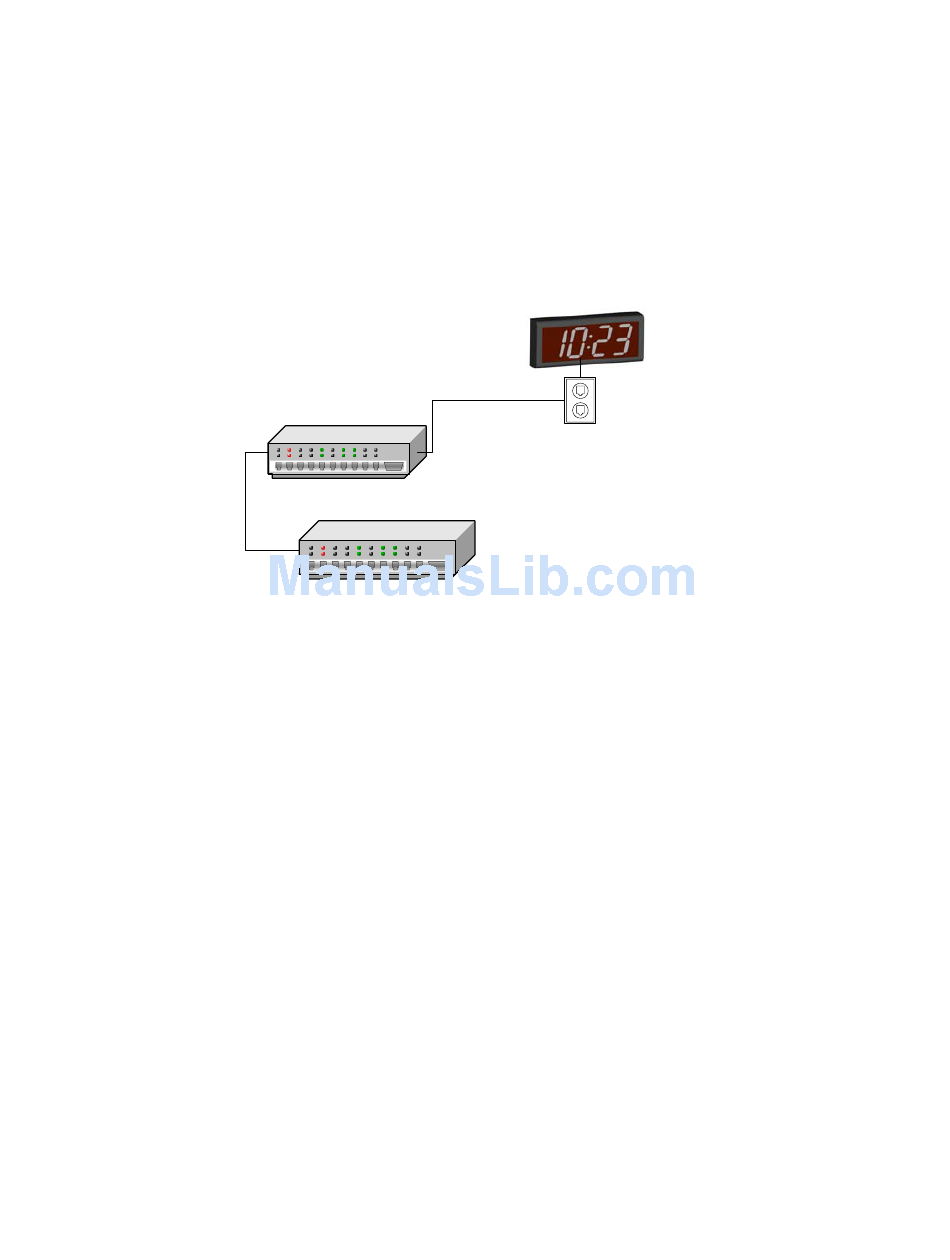

Non-PoE-Enabled Hub/Switch and Multiple Simplex
Ethernet Clocks
If the Ethernet is not currently PoE-enabled and is going to support the
Simplex Ethernet Clocks, a single or multiple Port Midspan Power Injector
must be added to the 10/100 BaseT Ethernet LAN.
Note: The power injector must be fully compatible with IEEE 802.3af.
©2007 Simplex Time Recorder Co. All rights reserved.
Multi-Port Midspan Power Injector
Non-PoE Enabled Hub/Switch
OnTime
TM
Clock
10/100BASE-T wall plate
Page 4
