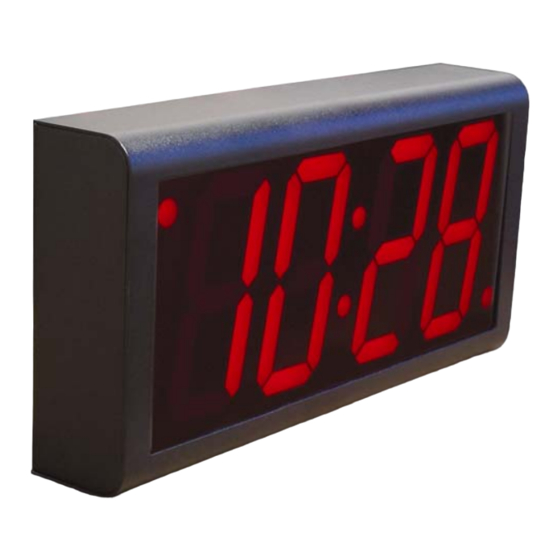

  • Page 1 Simplex Ethernet Clock Power Over Ethernet (POE) Installation Manual...
  • Page 2 Inova Part Number: 715437 While reasonable efforts have been taken in the preparation of this document to insure its accuracy, Simplex assumes no liability resulting from any errors or omissions in this manual, or from the use of the information contained herein.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Section 1 – Introduction and Network Planning ...........1 Section 2: System Integration ................2 Non-PoE Enabled Hub/Switch and Single Simplex Ethernet Clock ....3 Non-PoE-Enabled Hub/Switch and Multiple Simplex Ethernet Clocks ....4 Recording Location, Static IP Address, and Host Name ........5 Section 3: Unpacking ..................7...

  • Page 4: Section 1 - Introduction And Network Planning

    After you connect the clock, it will display the IP address associated with the device. The Simplex Ethernet clocks are linked together only in that they are connected to the network and use the same time source. By updating the clocks from the same time source, the clocks will remain accurate to 200ms of that source.

  • Page 5: Section 2: System Integration

    In the simplest example, the Ethernet is already PoE-enabled (802.3AF) and is supporting PoE devices such as IP phones. Simply mount the Simplex Ethernet Clock and connect it to a PoE-capable wall jack. ©2007 Simplex Time Recorder Co. All rights reserved.

  • Page 6: Non-Poe Enabled Hub/Switch And Single Simplex Ethernet Clock

    Ethernet Clock If the Ethernet is not currently PoE-enabled and is going to support a single Simplex Ethernet Clock, a Single Port Midspan Power Injector must be added to the 10/100 BaseT Ethernet LAN. Note: The power injector must be fully compatible with IEEE 802.3af.

  • Page 7: Non-Poe-Enabled Hub/Switch And Multiple Simplex Ethernet Clocks

    Ethernet Clocks If the Ethernet is not currently PoE-enabled and is going to support the Simplex Ethernet Clocks, a single or multiple Port Midspan Power Injector must be added to the 10/100 BaseT Ethernet LAN. Note: The power injector must be fully compatible with IEEE 802.3af.

  • Page 8: Recording Location, Static Ip Address, And Host Name

    Host Name. For example: 3rdFlrConfRm Please see page 53 in the Simplex Ethernet Clock Owner’s Manual for the procedure that can be used to change the Host Name of the Simplex Ethernet Clock.
  • Page 9 CLOCK LOCATION IP ADDRESS Host Name ©2007 Simplex Time Recorder Co. All rights reserved. Page 6...

  • Page 10: Section 3: Unpacking

    Unpack the mounting kit and check its contents against the illustration provided with the mounting kit. (Contact your local Simplex field office in the mounting kit is missing.) ©2007 Simplex Time Recorder Co. All rights reserved.

  • Page 11: Section 4: Installation Instructions

    Section 4: Installation Instructions The Simplex Ethernet Clock is available in a variety of mounting configurations. Please consult the appropriate system documentation for your installation requirements. ©2007 Simplex Time Recorder Co. All rights reserved. Page 8...

  • Page 12: Surface Mounting

    Surface Mounting The following is a recommended procedure for surface mounting. No mounting kit is required. ©2007 Simplex Time Recorder Co. All rights reserved. Page 9...
  • Page 13 4. Withdraw the fasteners until there is a .1/16” (.16cm) gap between the mounting surface and the back of the fastener head. 5. Insert the data cable into the jack located at the back of the Simplex Ethernet Clock. 6. Position the keyhole slots located on the rear of the clock over the fastener heads.

  • Page 14: Pendant Mounting - Single Or Double

    12 inches (30 cm). Securely attach the mounting means using fasteners suitable for the surface. 4. Lift the Simplex Ethernet Clock into position and insert the data cable into the jack located on the back of the clock.
  • Page 15 5. Position the keyhole slots located on the rear of the clock over the mounting tabs. 6. Pull the clock slightly downwards until the unit is seated. Repeat for the second clock if two clocks are being installed back-to- back. ©2007 Simplex Time Recorder Co. All rights reserved. Page 12...

  • Page 16: Cantilever Mounting - Single Or Double

    2. Using a #2 Phillips screwdriver and a 3/8” (.952 cm) wrench, assemble the Ethernet Clock Mount (Simplex p/n 714755) and the Ethernet Clock Cantilever Wall Mount (Simplex p/n 714756) as shown in the illustration in Section 4 of this manual. Join the parts using the 2 screws, 2 washers, and 2 nuts provided.
  • Page 17 4. Securely attach the mounting unit to the wall using fasteners suitable for the wall surface. 5. Lift the Simplex Ethernet Clock into place and insert the data cable into the jack located on the back of the clock. 6. Position the keyhole slots located on the rear of the clock over the mounting tabs on the clock mount.

  • Page 18: Section 5:Installation Wrap-Up And Verification

    Section 5:Installation Wrap-up and Verification 1. Verify that each Simplex Ethernet Clock powers up and displays an IP Address. 2. If the clocks are statically addressed, record the IP Address and location of each clock in the table provided in Section 3 of this manual.

  • Page 19: Section 6: Telnet Command Map

    Section 6: Telnet Command Map This section covers how to configure the Simplex Ethernet Clock once it has been installed. Once you have established a Telnet connection, log on using the following User ID and Password: User ID: iclock Password: timely After logging on, configure the clock using the following commands.
  • Page 20 [-p IP]Set primary DNS address. (Ignored if DHCP is enabled) • [-s IP]Set secondary DNS address. (Ignored if DHCP is enabled) • [-t dnstimeout]Set DNS timeout (0 is valid). (Ignored if DHCP is enabled) ©2007 Simplex Time Recorder Co. All rights reserved. Page 17...
  • Page 21 Used to enable or disable logging and to print the log file to the session screen netstat Lists all TCP connections nslookup Displays the name or IP of the given argument ©2007 Simplex Time Recorder Co. All rights reserved. Page 18...
  • Page 22 - The timezone offset from UTC to apply in hours:minutes. The minutes specification is optional, and defaults to 0. The valid offset range is: -12:59 to 12:59 Examples: United States: East: -5, Central: -6, Mountain: -7, Pacific: -8 ©2007 Simplex Time Recorder Co. All rights reserved. Page 19...
  • Page 23 - the file containing the new firmware code in tbin2 format user Configure and display the clocks user settings. [-p password] Sets the password to use for telnet logins. ©2007 Simplex Time Recorder Co. All rights reserved. Page 20...
