Section 2: System Integration
The diagrams below illustrate three options for system integration with
your PoE-capable LAN.

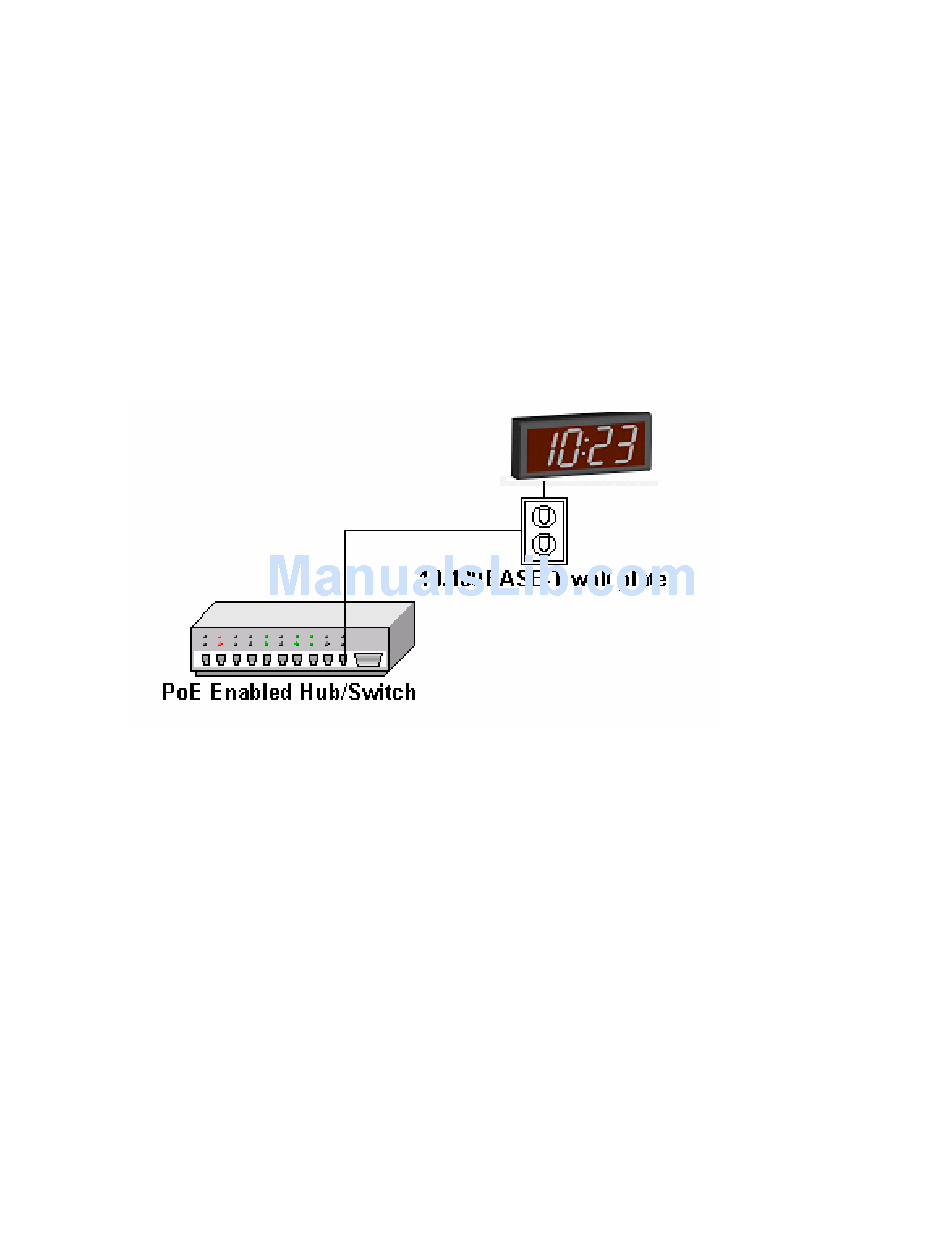

PoE-Enabled Hub/Switch
In the simplest example, the Ethernet is already PoE-enabled
(802.3AF) and is supporting PoE devices such as IP phones. Simply
mount the Simplex Ethernet Clock and connect it to a PoE-capable
wall jack.
©2007 Simplex Time Recorder Co. All rights reserved.
Page 2
