Theatre timers / interval timers analogue

Advertisement

Theatre Timers
Interval Timers Analogue

Features

UL Listed Under Two Categories:
-
UL 544, Medical and Dental Equipment
-
UL 863, Time Indicating and Recording
Twelve-Hour Elapsed Time Display of
Seconds, Minutes, and Hours
12 Inch Dial With:
-
Red Hour and Second Hand
-
Black Minute Hand
-
Black Markers and Seconds Numerals
-
Red Inner Ring Numerals for Minutes and Hours
Requires 6311-9502 Timer Control Featuring:
-
Red Timer-On LED
-
Yellow Reset Mode LED
-
Instant Hand Stop
-
Mounts on Two-Gang Switch Box (not supplied)
Dimensions 114 x 115 mm
-

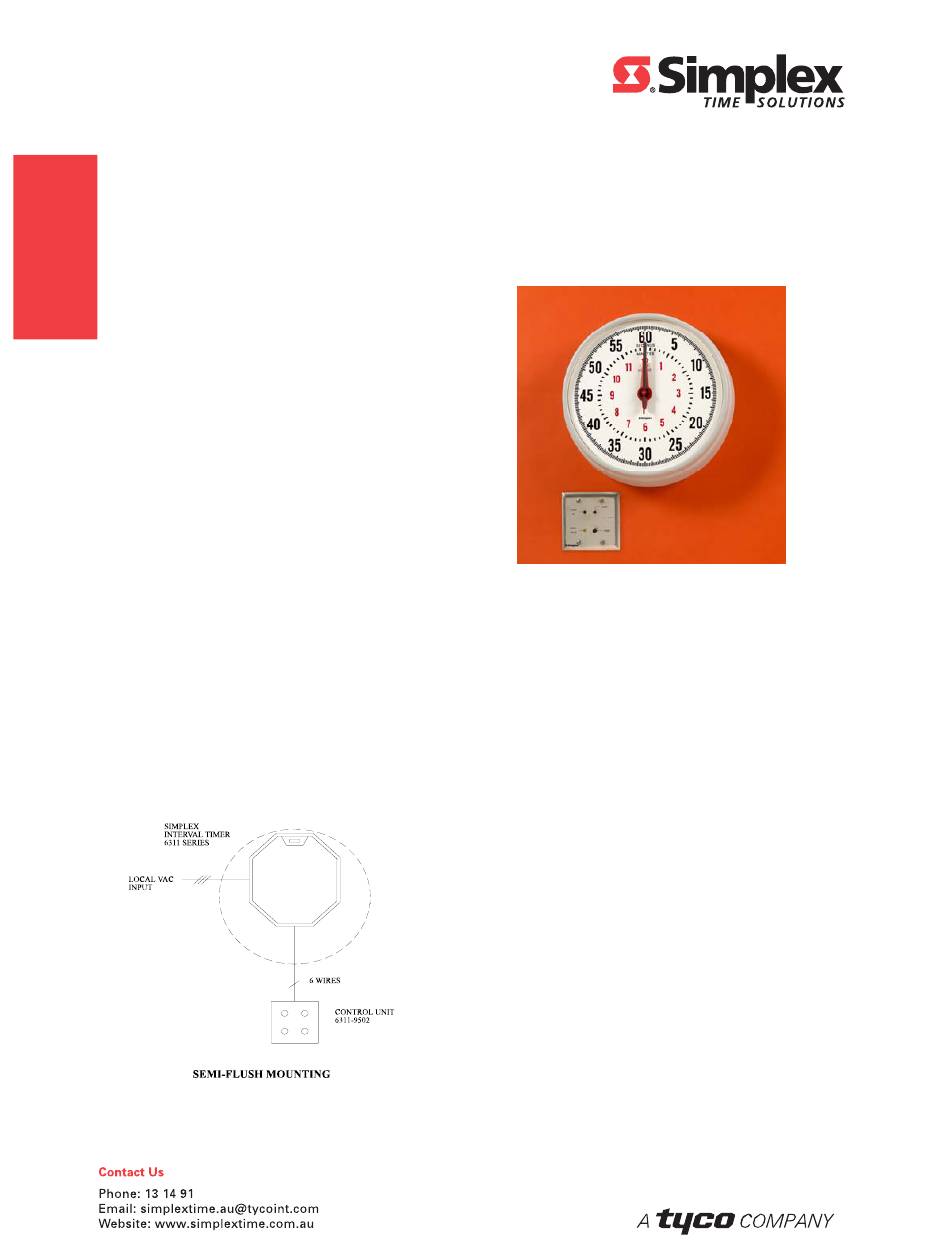

• Surface or Semi-Flush Mounting
High Impact ABS Case with Shatterproof Acrylic Lens

Applications

Simplex model 6311 interval timers are for use in hospital delivery rooms, operating rooms, laboratories,
schools, industrial applications, and wherever manual process timing is required.

Operation

Manual operation from a 6311-9502 timer control is started by switch activation (START) which is
indicated by the red timer-on LED. If the timing sequence must be stopped, the STOP position will
instantly stop the hands without coasting due to a "dead-stop" motor control feature. Reset is activated
by pushbutton, if the control switch is in the STOP/RESET position.

Specifications

Voltage:
20VAC, 60Hz
40VAC, 50Hz
Power:
VA max.
Reset Time:
45s min., 96s max.
Case Colour:
Light Grey
