Connecting to a 1-Gb MEDIASwitch

n
Use the following procedure to correctly connect an optical GBIC and
optical cable to a 1-Gb MEDIASwitch.
To connect an optical cable to the 1-Gb MEDIASwitch:
1. Locate the optical GBIC in the Media Server kit.
2. Route the optical cable from the Media Server to the MEDIASwitch, if
it has not been installed already.
3. Position the optical GBIC in front of a MEDIASwitch port (see
Figure 2). Make sure the optical cable connector is facing away from
the MEDIASwitch.

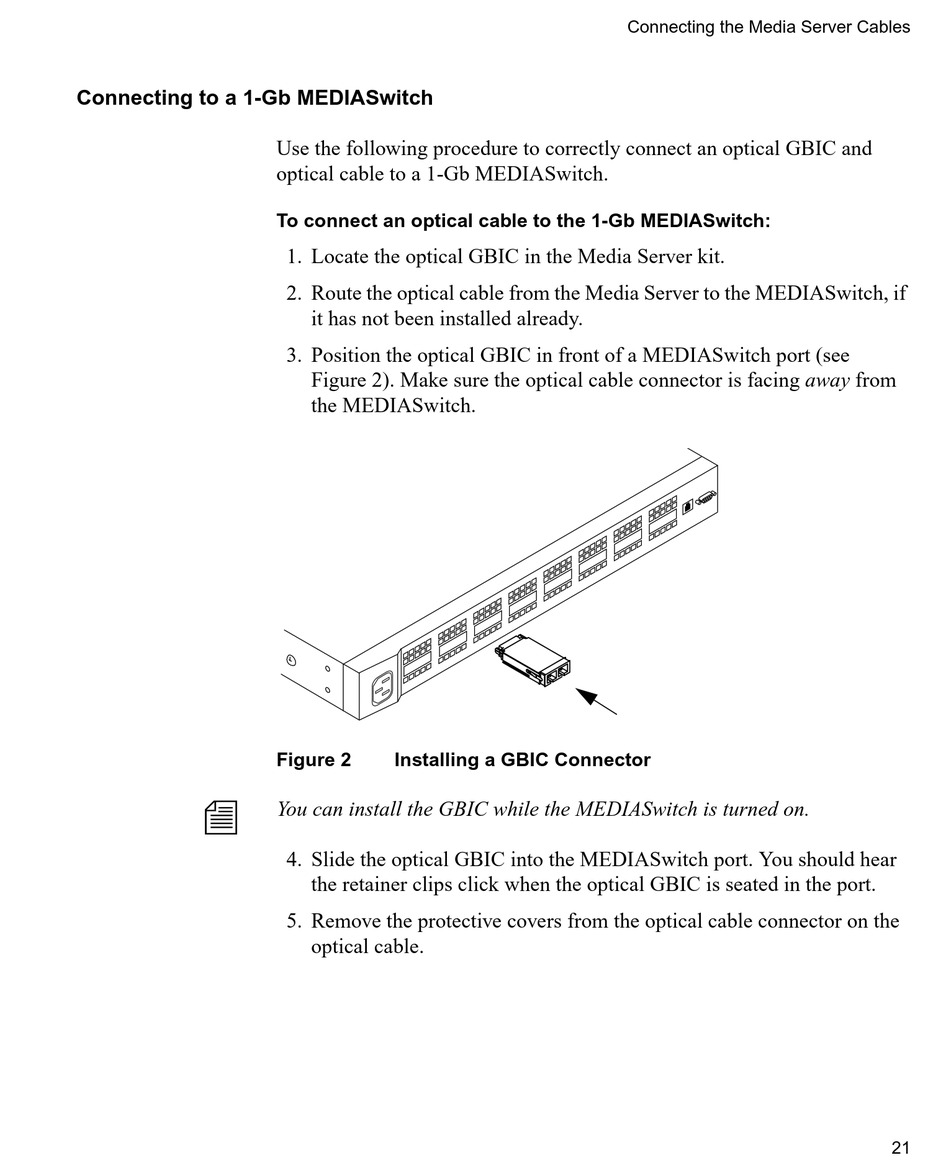

Figure 2 Installing a GBIC Connector
You can install the GBIC while the MEDIASwitch is turned on.
4. Slide the optical GBIC into the MEDIASwitch port. You should hear
the retainer clips click when the optical GBIC is seated in the port.
5. Remove the protective covers from the optical cable connector on the
optical cable.
