Motorola RNG200N Quick Start Manual

Hd dual tuner dvr.
Hide thumbs
RNG200N
HD Dual Tuner DVR
Quick Start Guide

   Also See for Motorola RNG200N

   Related Manuals for Motorola RNG200N

   Summary of Contents for Motorola RNG200N

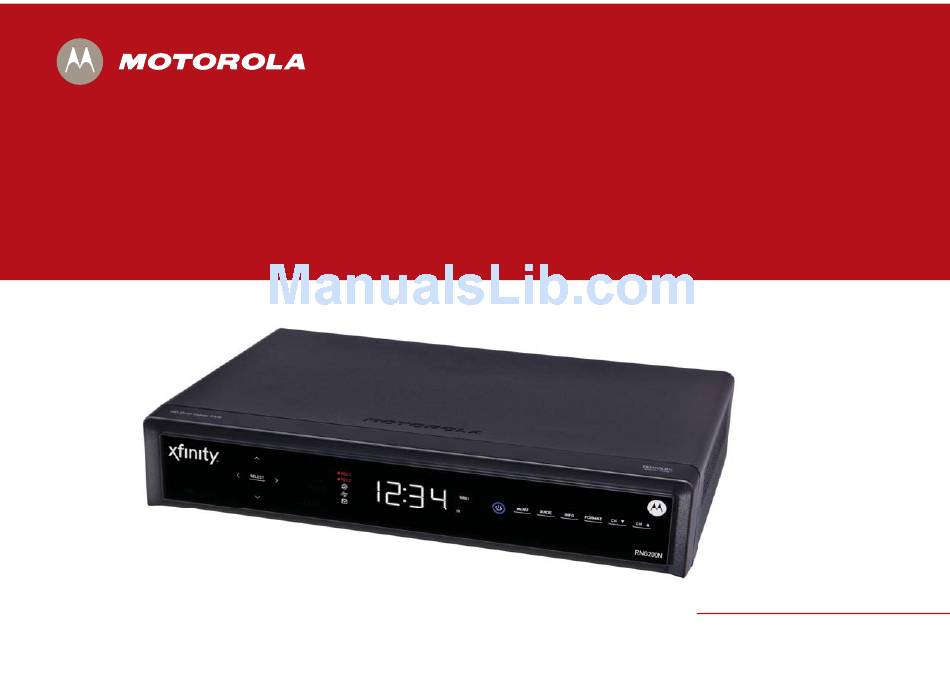

  • Page 1

    RNG200N HD Dual Tuner DVR Quick Start Guide...

  • Page 2: Before You Begin

    Before You Begin Introduction Congratulations on receiving a Motorola RNG200N HD Dual Tuner DVR. This document will help you set up your RNG200N to quickly get it up and running. READ THIS FIRST 1. Determine if you are connecting to a: High-Defi...

  • Page 3: Front Panel, Rear Panel

    IR Remote Input — Connects to a remote control set-top accessory cable Video — Composite video (SDTV) output IEEE-1394 — Audio and HDTV video device connection (US models only) Audio — Composite Audio L/R outputs Power cord connector — DC input *Feature is dependent upon application support. RNG200N Quick Start Guide...

  • Page 4: Cabling To An Hdtv For Video

    TV. L/R Audio connection or digital audio S/PDIF connection is required for sound with component video. Note: Because HDMI provides both video and audio output, no additional audio connections to the TV are required. RNG200N Quick Start Guide...

  • Page 5

    Connecting Your Device Cabling to an HDTV for Audio RNG200N Quick Start Guide...

  • Page 6

    A/V receiver’s input and the A/V receiver’s HDMI output directly to the TV. Because HDMI provides both video and audio output, no additional audio connections to the A/V Receiver and TV are required. RNG200N Quick Start Guide...

  • Page 7

    A/V receiver’s input and the A/V receiver’s HDMI output directly to the TV. Because HDMI provides both video and audio output, no additional audio connections to the A/V Receiver and TV are required. RNG200N Quick Start Guide...

  • Page 8

    Connecting Your Device Cabling to a Standard-Defi nition TV Note: This connection method does not support HDTV. For information, see Cabling to an HDTV for Video. RNG200N Quick Start Guide...

  • Page 9

    Cabling to an HDTV for Video. If degraded picture quality is observed while viewing copy- protected limited view programs, do not connect through a VCR. Instead, connect the set-top directly to the TV (see illustration on page 7). RNG200N Quick Start Guide...

  • Page 10

    30 seconds for the external drive to reach operating speed. 4. Connect one end of the eSATA cable to the set-top. 5. Connect the other end of the eSATA cable to the external drive. 6. Follow the on-screen instructions. RNG200N Quick Start Guide...

  • Page 11: Troubleshooting

    • Verify that you have the correct cables for the audio connections. • Verify that the audio cables are fi rmly connected between the set-top and the audio playback device (TV, receiver, DVD player, etc.). RNG200N Quick Start Guide...

  • Page 12

    If you use the IEEE-1394 connection, on-screen graphics, including closed captions and program guides, are No graphics or not displayed by the set-top. On-screen graphics and captions may still be overlaid by your TV, if enabled. program guides appear Alternatively, use HDMI or component video instead. on the TV screen RNG200N Quick Start Guide...

  • Page 13

    Some SD programs are broadcast in the letterbox format with black bars above and below the picture. Some widescreen TVs offer a zoom feature that may be able to remove the black bars (see your TV manual for information about zooming 4:3 video). RNG200N Quick Start Guide...

  • Page 14

    Verify the eSATA cable is connected securely at both ends to the set-top and external drive. Verify the external drive is plugged in and on. RNG200N Quick Start Guide...

  • Page 15: Recording Your Connections

    Disconnect the power from the set-top before connecting or changing cable connections. Do not place another component or object on top of the set-top. RNG200N Quick Start Guide...

  • Page 16

    MOTOROLA and the Stylized M Logo are registered in the U.S. Patent and Trademark Offi ce. HDMI is a trademark of HDMI Licensing LLC. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.
