1.
Tool: 5 mm Allen key
2.
30

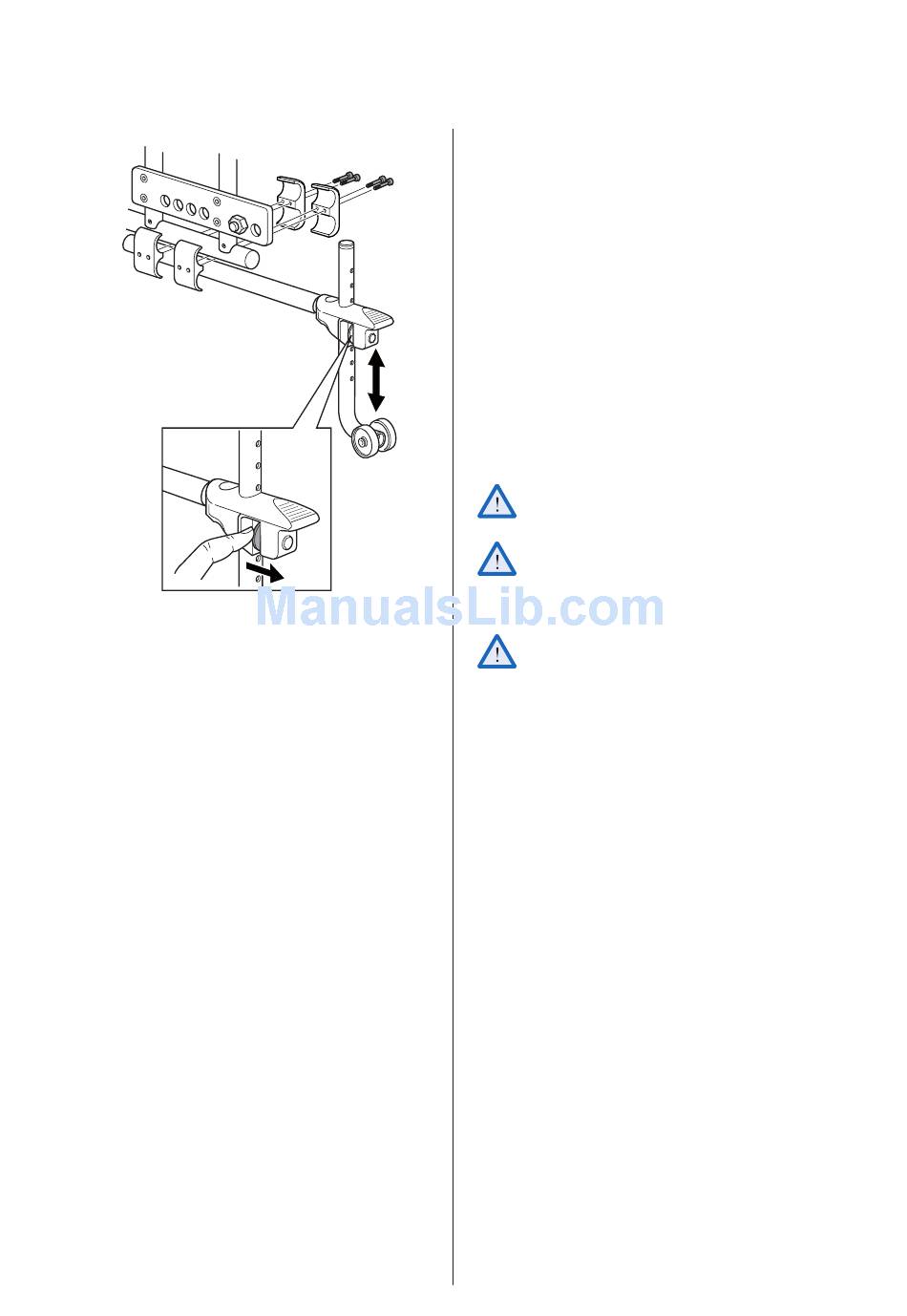

Anti-tip device, extended
The anti-tip device also acts as a step tube. It is height
A
adjustable and easy to adjust.
This extended anti-tip device is primarily used when
an extended rear wheel attachment is used. It can
also be used with the standard rear wheel attach-
ment.
1. Attach the anti-tip device to the frame tube with
brackets and screws (A).
2. Lift the spring loaded button and select the re-
quired height. Ensure that the anti-tip device
locks into its new position.
Never forget to fold down the anti-tip devices
or the wheelchair may tip over.
The distance between the anti-tip wheel and
the ground, and the distance between the anti-
tip wheel and rear wheel, should be approx.
5 cm.
For safety reasons we recommend the use of
two anti-tip devices
