Height Adjustment - Invacare XLT Power U-front Service Manual

4.
A
Tools: 4 mm Allen key
16
B

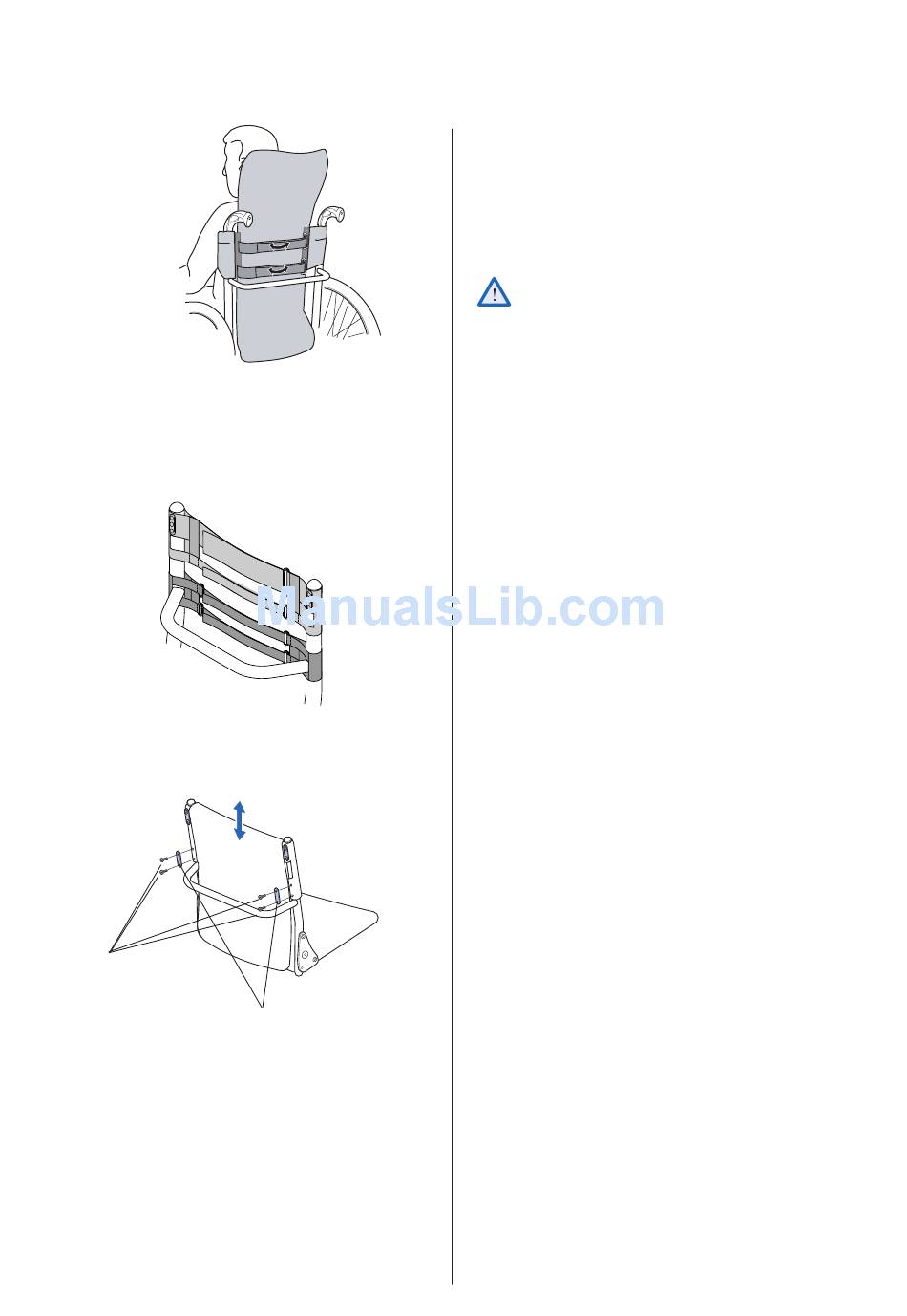

4. Adjust the shape of the backrest by adjusting the
Velcro straps.
The user should be seated in the chair when the
Velcro straps are adjusted. When adjustment is
complete fold the backcloth back into position
and secure it with the Velcro straps.
When you loosen the backrest, the tip-risk
increases. We recommend the use of anti-tip
devices.
For backrest heights of more than 35 cm use a back-
rest extension.

Height adjustment

With the height-adjustable backrest it is possible to
adjust the backrest height to suit the user without
changing the backframe. Proceed as follows:
Loosen and remove screws (A) and the small plastic
bracket (B) on the back of the back support. Adjust
the backrest extension to the desired height and refit
the screws.
INVACARE XLT Service Manual
®
