INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
WARNING: IF THE INFORMATION IN THIS MANUAL
IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLO-
SION MAY RESULT CAUSING PROPERTY DAM-
AGE, PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY: Do not store or use gasoline
or other flammable vapors or liquids in the vicin-
ity of this or any other appliance.
FOR YOUR SAFETY: What to do if you smell gas:
• DO NOT light any appliance.
• DO NOT touch any electrical switches.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow your gas suppliers
instructions.
• If your gas supplier cannot be reached, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
OTL Report No. 116-F-41-5
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
INSTALLATION
INSTRUCTIONS

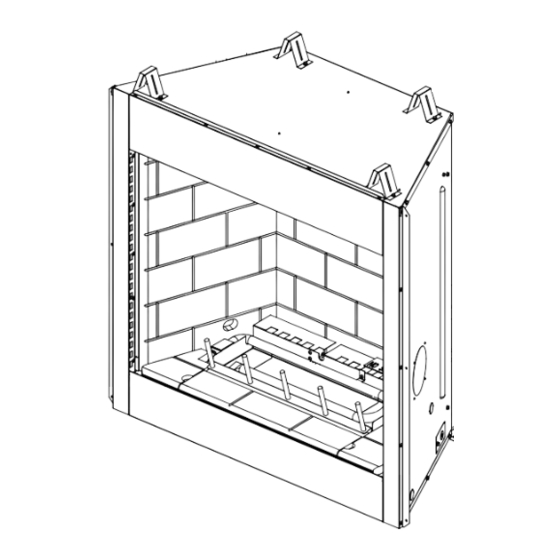

OUTDOOR GAS FIREPLACE
ELITE
OUTDOOR GAS FIREPLACE
P/N 850,034M REV. C 10/2006
MODELS
E36ODGNE
E36ODGNE-H
E36ODGPE
E36ODGPE-H
A French manual is available upon request. Order Form Number
850,034CF.
Ce manuel d'installation est disponible en francais, simplement en
faire la demande. Numéro de la pièce 850,034CF.
AVERTISSEMENT: ASSUREZ-VOUS DE BIEN SUIVRE
LES INSTRUCTIONS DONNÉ DANS CETTE NOTICE POUR
RÉDUIRE AU MINIMUM LE RISQUE D'INCENDIE OU
POUR ÉVITER TOUT DOMMAGE MATÉRIEL, TOUTE
BLESSURE OU LA MORT.
POUR VOTRE SÉCURITÉ: Ne pas entreposer ni utiliser
d'essence ni d'autre vapeurs ou liquides inflammables
dans le voisinage de cet appareil ou de tout autre
appareil.
POUR VOTRE SÉCURITÉ: Que faire si vous sentez une
odeur de gaz:
• Ne pas tenter d'allumer d'appareil.
• Ne touchez à aucun interrupteur. Ne pas vous servir
des téléphones se trouvant dans le batiment où
vous vous trouvez.
• Evacuez la piéce, le bâtiment ou la zone.
• Appelez immédiatement votre fournisseur de gaz
depuis un voisin. Suivez les instructions du
fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service dos incendies.
L'installation et service doit être exécuté par un qualifié
installeur, agence de service ou le fournisseur de gaz.
®
SERIES
E42ODGNE
E42ODGNE-H
E42ODGPE
E42ODGPE-H
1
Advertisement
Table of Contents
Related Manuals for Lennox E36ODGNE
Summary of Contents for Lennox E36ODGNE
- Page 1 INSTALLATION INSTRUCTIONS OUTDOOR GAS FIREPLACE ® ELITE SERIES OUTDOOR GAS FIREPLACE P/N 850,034M REV. C 10/2006 MODELS E36ODGNE E42ODGNE INSTALLER: Leave this manual with the appliance. E36ODGNE-H E42ODGNE-H CONSUMER: Retain this manual for future reference. E36ODGPE E42ODGPE E36ODGPE-H E42ODGPE-H This appliance is only for use with the type of gas A French manual is available upon request.
-
Page 2: Table Of Contents
54 , or the Natural Gas and Propane Installa- Fireplace Installation ......page 7 tion Code, CSA B149.1 . Routing Gas Line ......page 7 The Lennox Elite ® Series Outdoor Gas Fire- The appliance, when installed, must be elec- place is designed for outdoor use. -
Page 3: Requirements
NEW YORK AND MASSACHUSETTS Gas Pressure - All Models Orifice Sizes - Sea Level To High Altitude (All Models) REQUIREMENTS Tables 2 and 3 show the appliances' inlet and manifold gas pressure. These appliances are tested and approved for These appliances may be installed in the fol- installation at elevations of 0-4500 feet (0-1372 lowing USA locations with the following re- meters) above sea level, using the standard... -
Page 4: Location
Lennox does provide an optional drain pan to the appliance and to replace any parts of the assist weatherproofing the fireplace. control system and any gas control which If you plan to raise the fireplace and hearth have been under water. -
Page 5: Appliance Clearances
When Planning for the installation of the fireplace, the framing height must be in- creased from 46-1/2 inches to 47-1/4 inches, when installing the drain pan. An additional space below the fireplace will Threaded also be required to plumb a drain line. Threaded Reducer Elbow ³⁄₄... -
Page 6: Clearance Specifications
CLEARANCE SPECIFICATIONS (See Note 2) J or K = FIREPLACE OPENING = AIR SUPPLY INLET = AREA WHERE FIREPLACE IS NOT PERMITTED 2 in..clearances above grade, 3 ft. (USA) ..clearance to service regulator veranda, porch, deck or 6 ft. -
Page 7: Fireplace Installation
FIREPLACE INSTALLATION Step 2. Level the firebox by checking the top ROUTING GAS LINE edge of the firebox. Shim if necessary. Route a ¹⁄₂" (13 mm) gas line along the inside of Step 1. Frame these appliances as illus- Step 3. The fireplace should be secured to the trated in Figures 7 through 9 . -
Page 8: Fireplace Specifications
FIREPLACE SPECIFICATIONS Dimensions - Inches (millimeters) Model No. 41-3/4 23-1/2 E36ODG (940) (1061) (597) 47-3/4 29-1/2 E42ODG (1092) (1213) (749) (508) Weight And Volume Model Ship. Weight (lbs) Shipping Volume 35 Cu. Ft. E36ODG 200 lbs Top View E42ODG 38 Cu. Ft. 230 lbs Top Stand-Off Spacers (4... -
Page 9: Framing Specifications
FRAMING SPECIFICATIONS Opening E360DG E420DG Back Wall Of Corner Installation Chase/Enclosure 42-3/4" (1086) 48-3/4" (1238) Including Finishing 46-1/2" (1181) 46-1/2" (1181) Materials If Any 23-9/16" (599) 29-9/16" (751) 11-1/4" (286) 14-1/4" (362) 63-1/2" (1613) 69-1/2" (1765) 31-3/4" (807) 34-3/4" (883) 20-1/2"( 521) 20-1/2"( 521) 44-3/16"... -
Page 10: Field Wiring
FIELD WIRING SPARK TO PILOT IGNITOR INTERMITTENT ELECTRONIC WIRING DIAGRAM Caution: Label all wires prior to disconnec- tion when servicing controls. Wiring errors can cause improper and dangerous opera- tion. Verify proper operation after servicing. IGNITOR MODULE Refer to Figure 10 for the wiring schematic for these fireplaces. -
Page 11: Connecting Gas Line
CONNECTING GAS LINE Gas Flex Line Connector Codes require a shut-off valve mounted in the ³ ₈" NPT x ³ ₈ ¹ ₂" x ³ ₈" Flare supply line. Figure 12 illustrates two methods Flare Fitting Shut-Off Valve Valve for connecting the gas supply. The flex-line method is acceptable in the U.S., however, Canadian requirements vary depending on lo- ³... -
Page 12: Installing The Logs
WARNING: DO NOT OPERATE THE FIRE- PLACE FOR ANY EXTENDED PERIOD OF Rear Log TIME WITHOUT THE LAVA ROCK IN PLACE. THE PAN CAN OVER HEAT AND MAY WARP AND THE FIREPLACE MAY SHUT OFF AUTOMATICALLY. INSTALLING THE LOGS After verifying that the fireplace operates prop- erly, replace the cover and set the bottom refractory components in place. -
Page 13: Checking Appliance Operation
CHECKING APPLIANCE OPERATION Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning are similar to the flu with headaches, dizziness and/or nausea. If you have these signs, obtain fresh air immedi- With gas line installed run initial system check- ately. Turn off the gas supply to the appliance and have it serviced by a qualified professional, out before installing any additional accesso- as it may not be operating correctly. -
Page 14: Accessories And Components
INSTALLATION ACCESSORIES AND COMPONENTS Drain Pan The drain pan is used with the appliance. Drain Pan Cat. No. Model Description H4651 DPSS36 Drain Pan (36) H4652 DPSS42 Drain Pan (42) NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. -
Page 15: Gas Conversion Kits
GAS CONVERSION KITS WARNING: THIS CONVERSION KIT SHALL BE AVERTISSEMENT: CET ÉQUIPEMENT DE CONVERSION INSTALLED BY A QUALIFIED SERVICE AGENCY IN SERA INSTALLÉ PAR UNE AGENCE QUALIFIÉE DE SERVICE ACCORDANCE WITH THE MANUFACTURER'S IN- CONFORMÉMENT AUX INSTRUCTIONS DU FABRICANT ET STRUCTIONS AND ALL APPLICABLE CODES AND TOUTES EXIGENCES ET CODES APPLICABLES DE REQUIREMENTS OF THE AUTHORIZED HAVING... - Page 16 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. Lennox Hearth Products reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Consult your local distributor for fireplace code information.
