WARNING - SHOCK HAZARD! -- DO NOT operate this heater without the front face installed.
1. Ember Bed Rock
Open the bag of ember bed rock and spread it over the ember
tray. This will create the effect of burning embers. Not all of
the black and white rock needs to be used. See Figure 5.

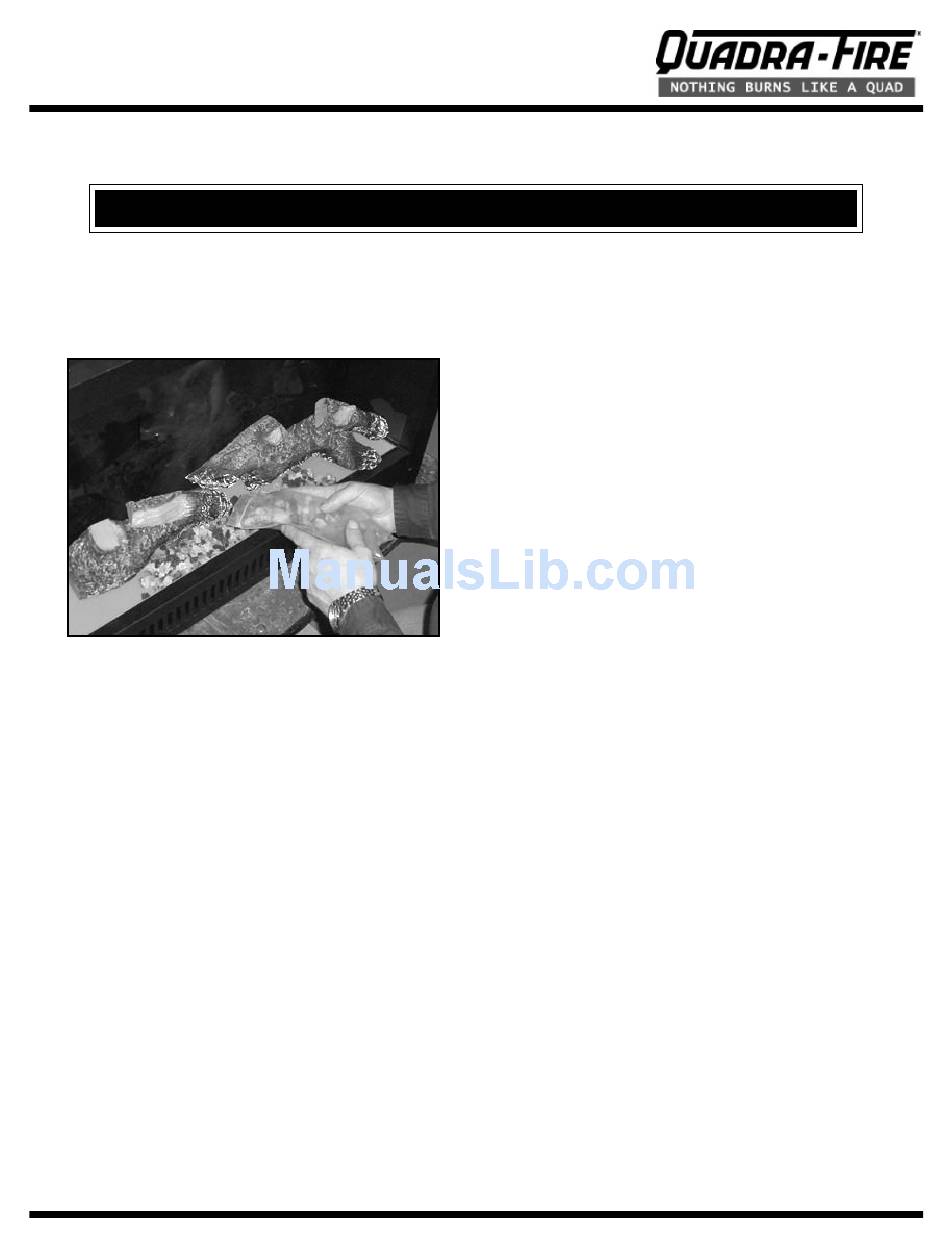

Figure 5 - Placing the Ember Bed Rock
The operating controls are located on the upper right edge of the heater.
1. Main Power Switch
The main power switch is a three-position switch.
a. Heater "ON" - Lights bright, thermostat active.
b. Heater "OFF" - All off.
c. Heater "ON" - Lights dim, thermostat active.
1) When the main power switch is turned "ON", it provides power to all functions.
2) When used in conjunction with the optional remote control, the switch should remain in an "ON" position.
2. Thermostat
a. Active only when lights are on.
b. The thermostat allows you to adjust the desired room temperature.
c. Set at maximum - always on below 104° F.
d. Set at minimum - always off above 32° F.
04/04
VILLAGE COLLECTION ELECTRIC FIREPLACE/INSERT
4038-827 Rev B
H. FINAL INSTALLATION
I. OPERATING INSTRUCTIONS
2. Install the Grate
(on top of the ember bed rock)
Unpack the grate and attach it to the hearth panel using the
screws provided. Use the holes found at either end of the
grate/hearth panel.
3. Install the Front Face
Install the front face following the instructions packaged with
the face.
Installation of other optional accessories may be done at this
time.
The heater is now ready to operate. See Section "I. Operating
Instructions".
11
