INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions on installation, operation, or service.
NOTICE: DO NOT DISCARD THIS MANUAL

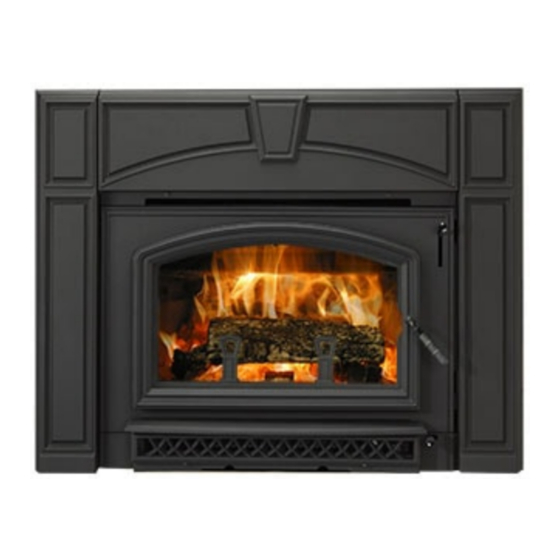

VOYAGEUR GRAND WOOD INSERT
Automatic Combustion Control (ACC)
Model(s):
VOYA-GRAND-MBK
VOYA-GRAND-PMH
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfi re and generate
poisonous gases (i.e. carbon monoxide).
Installation and service of this appliance should be
performed by qualifi ed personnel. Hearth & Home
Technologies recommends NFI certifi ed profession-
als, or technicians supervised by an NFI certifi ed
professional.
1
Owner's Manual
Operation & Care
7075-208F
WARNING
If the information in these instruc-
tions is not followed exactly, a
fi re may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfi re - If heater or chimney con-
nector glows, you are overfi ring. Overfi ring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specifi ed. Failure to
comply may cause house fi re.
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
fi replace.
•
Alert children and adults to hazards of high temperatures
•
High temperatures may ignite clothing or other
fl ammable materials.
•
Keep clothing, furniture, draperies and other fl ammable
materials away.
NOTE
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafi re.com
Pour obtenir une traduction française de ce manuel, s'il vous
plaît contacter votre revendeur ou visitez www.quadrafi re.com
February 25, 2016
Advertisement
Table of Contents
Related Manuals for Quadra-Fire VOYAGEUR GRAND VOYA-GRAND-MBK
Summary of Contents for Quadra-Fire VOYAGEUR GRAND VOYA-GRAND-MBK
- Page 1 Owner’s Manual Operation & Care INSTALLER: Leave this manual with party responsible for use and operation. OWNER: Retain this manual for future reference. Contact your dealer with questions on installation, operation, or service. NOTICE: DO NOT DISCARD THIS MANUAL WARNING If the information in these instruc- tions is not followed exactly, a fi...
-
Page 2: Congratulations
Hearth & Home Technologies welcomes you to our tradition old-fashioned when it comes to craftsmanship. Each unit of excellence! In choosing a Quadra-Fire appliance, you is meticulously fabricated and gold and nickel surfaces are have our assurance of commitment to quality, durability, and hand-fi... -
Page 3: Table Of Contents
VOYAGEUR GRAND Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury. • CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury. -
Page 4: Warranty
VOYAGEUR GRAND C. Warranty Hearth & Home Technologies Inc. LIMITED LIFETIME WARRANTY Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance... - Page 5 VOYAGEUR GRAND WARRANTY CONDITIONS: ‡ 7KLV ZDUUDQW\ RQO\ FRYHUV ++7 DSSOLDQFHV WKDW DUH SXUFKDVHG WKURXJK DQ ++7 DXWKRUL]HG GHDOHU RU GLVWULEXWRU $ OLVW RI ++7 DXWKRUL]HG GHDOHUV LV DYDLODEOH RQ WKH ++7 EUDQGHG ZHEVLWHV ‡ 7KLV ZDUUDQW\ LV RQO\ YDOLG ZKLOH WKH ++7 DSSOLDQFH UHPDLQV DW WKH VLWH RI RULJLQDO LQVWDOODWLRQ ‡...
-
Page 6: Quick Start Guide
VOYAGEUR GRAND D. Quick Start Guide Note: These are generic drawings and may not represent your specifi c model. 10 Pieces of Newspaper, 10-20 Pieces of Dry Kindling ITEMS NEEDED FOR FIRST FIRE: and a Few Pieces of Dry Split Wood. OPEN AIR CONTROLS ADD NEWSPAPER LOAD WOOD... -
Page 7: Listing And Code Approvals
Quadra-Fire is a registered trademark of Hearth & Home Technologies. February 25, 2016 7075-208F... -
Page 8: Operating Instructions
VOYAGEUR GRAND User Guide Operating Instructions WARNING HOT SURFACES! Glass and other surfaces are hot during operation AND cool down. Hot glass will cause burns. • DO NOT touch glass until it is cooled • NEVER allow children to touch glass •... -
Page 9: Fire Safety
VOYAGEUR GRAND B. Fire Safety Hearth & Home Technologies WILL NOT warranty stoves To provide reasonable fi re safety, the following should be given that exhibit evidence of over-fi ring. Evidence of over-fi ring serious consideration: includes, but is not limited to: Install at least one smoke detector on each fl... -
Page 10: Burning Process
fl ames. placed on the burning of wood for home heating. During this stage of burning: In order to improve the situation, we at Quadra-Fire have • The fl ames must be maintained and not allowed to go out developed cleaner-burning wood appliances that surpass ensure the cleanest possible fi... -
Page 11: Automatic Combustion Control (Acc)
VOYAGEUR GRAND G. Automatic Combustion Control (ACC) Typically, when you build a fi re, you open the air controls fully and monitor the fi re to prevent it from going into an overfi re situation and/or burning your wood up too quickly before you shut down the air controls to the desired burn rate. -
Page 12: Burn Rates And Operating Effi Ciency
VOYAGEUR GRAND *NOTE: These are approximate settings, and will vary with I. Burn Rates and Operating Effi ciency type of wood or chimney draft. Due to altitude and other This wood heater has a manufacturer-set minimum low environmental circumstances, this operational information is a guideline only. -
Page 13: Building A Fire
VOYAGEUR GRAND 1. Open the Burn Rate Air and Start-Up Air Controls fully. INCORRECT POSITIONS 2. Place several wads of crushed paper on the fi rebox fl oor. Heating the fl ue with slightly crumpled newspaper before adding kindling keeps smoke to a minimum. 3. -
Page 14: Fuel Reloading Instructions
VOYAGEUR GRAND L. Fuel Reloading Instructions Processed Solid Fuel Fire Logs • NOT permitted for use in this appliance 1. This appliance has a large door with an exceptional view of the fi re. • Opens to about 90 degrees and has a built-in stop. •... -
Page 15: Operating The Blower Control Box With Snap Disc
VOYAGEUR GRAND Storing Wood Steps to ensure properly seasoned wood: • Stack wood to allow air to circulate freely around and through woodpile. • Elevate wood pile off ground to allow air circulation underneath. • Smaller pieces of wood dry faster. Any piece over 6 in. Blower Controls Under Ash Lip (152 mm) in diameter should be split. -
Page 16: Clear Space
VOYAGEUR GRAND R. Opacity (Smoke) P. Clear Space Opacity is the measure of how cleanly your appliance is • Do NOT place combustible objects within 4 ft (1.2 m) of burning. the front of appliance. Figure 16.1. Opacity is measured in percent: •... -
Page 17: Maintenance And Service
VOYAGEUR GRAND Maintenance and Service When properly maintained, your fi replace will give you WARNING! Risk of Fire! - Do not use chimney cleaners or many years of trouble-free service. Contact your dealer to fl ame colorants in your appliance. It will corrode your pipe. answer questions regarding proper operation, troubleshoot- Creosote - Formation and Need for Removal ing and service for your appliance. -
Page 18: Glass Cleaning
VOYAGEUR GRAND E. Glass Cleaning F. Inspect Firebrick • Frequency: As desired • Frequency: After each ash removal • By: Homeowner • By: Homeowner Replace the fi rebrick if they become crumbly and/or if there • Clean glass with a non-abrasive glass cleaner. Abrasive is a 1/4 inch (6.35mm) gap between the bricks. -
Page 19: Quick Reference Maintenance Guide
VOYAGEUR GRAND G. Quick Reference Maintenance Guide Start the fi rst inspection after the fi rst 2 months of use, or if performance changes, and adjust your schedule according- CAUTION! Allow the appliance to completely cool ly. Maintenance is required for safe operation and must be down before performing any cleaning or maintenance. -
Page 20: Troubleshooting Guide
VOYAGEUR GRAND Troubleshooting Guide With proper installation, operation, and maintenance your wood stove will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist you or a qualifi ed service person in the diagnosis of a problem and the corrective action to be taken. -
Page 21: Service Parts Replacement
VOYAGEUR GRAND Service Parts Replacement A. Glass Replacement - Door Assembly Quadra-Fire appliances are equipped with ceramic super heat- (Replace with 5mm ceramic glass only) resistant glass, which can only be broken by impact or misuse. WARNING! Risk of Fire or Injury! Ensure that the fi... -
Page 22: Snap Disc Replacement
VOYAGEUR GRAND C. Snap Disc Replacement D. Wiring Diagram 1. The grille on the blower access assembly is hinged. Blower Swing the grille downward to expose the 2 screws. Fig- ure 21.1 on page 21. 2. Remove the 2 screws from the blower access assembly and slide assembly away from the appliance 3. -
Page 23: Baffl E Removal
VOYAGEUR GRAND F. Baffl e Removal 1. Remove all ash from the fi rebox, and extinguish all hot embers before disposal into a metal container. 2. It is easier to remove both baffl e boards and ceramic blanket after the tube channel assembly has been partially disassembled and the right side lowered. -
Page 24: Tube Channel Assembly Replacement
VOYAGEUR GRAND G. Tube Channel Assembly Replacement Removing Tube Channel Assembly 1. Remove the 3 right side bricks. Bend Back Tabs 2. Remove the baffl e protection channel by bending back Baffle Protection the tabs using needle nose pliers located at the right and Channel left side of the protection cover. -
Page 25: Reference Materials
VOYAGEUR GRAND Reference Materials A. Service & Maintenance Log Date of Service Performed By Description of Service February 25, 2016 7075-208F... -
Page 26: Service Parts & Accessories
VOYAGEUR GRAND B. Service Parts & Accessories VOYAGEUR - Grand Service Parts Beginning Manufacturing Date: Oct 2012 Cast Iron Wood Insert - Large Ending Manufacturing Date: Active VOYA-GRAND-MBK, VOYA-GRAND-PMH Part number list on following page. 02/16 7075-208F February 25, 2016... -
Page 27: Side View
VOYAGEUR GRAND VOYAGEUR - Grand Service Parts Beginning Manufacturing Date: Oct 2012 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor. - Page 28 VOYAGEUR GRAND VOYAGEUR - Grand Service Parts Beginning Manufacturing Date: Oct 2012 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
- Page 29 VOYAGEUR GRAND VOYAGEUR - Grand Service Parts Beginning Manufacturing Date: Oct 2012 Ending Manufacturing Date: Active #14 Access Assembly 14.1 14.2 14.3 14.6 14.5 14 4 IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
- Page 30 VOYAGEUR GRAND VOYAGEUR - Grand Service Parts Beginning Manufacturing Date: Oct 2012 Ending Manufacturing Date: Active 17.2 #17 Control Assembly 17.1 17.3 17.4 17.5 IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
- Page 31 VOYAGEUR GRAND VOYAGEUR - Grand Service Parts Beginning Manufacturing Date: Oct 2012 Ending Manufacturing Date: Active #25 Cast Surround Assemblies 25.3 25.2 25.1 25.4 25.5 IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Stocked Hearth and Home Technologies does not sell directly to consumers.
- Page 32 VOYAGEUR GRAND VOYAGEUR - Grand Service Parts Beginning Manufacturing Date: Oct 2012 Ending Manufacturing Date: Active #25 Metal Surround Assemblies 26.3 26.2 26.1 26.4 26.5 IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Stocked Hearth and Home Technologies does not sell directly to consumers.
- Page 33 VOYAGEUR GRAND February 25, 2016 7075-208F...
- Page 34 VOYAGEUR GRAND 7075-208F February 25, 2016...
- Page 35 VOYAGEUR GRAND February 25, 2016 7075-208F...
-
Page 36: Contact Information
Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafi re.com CAUTION DO NOT DISCARD THIS MANUAL...
