INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions on installation, operation, or service.
NOTICE: DO NOT DISCARD THIS MANUAL

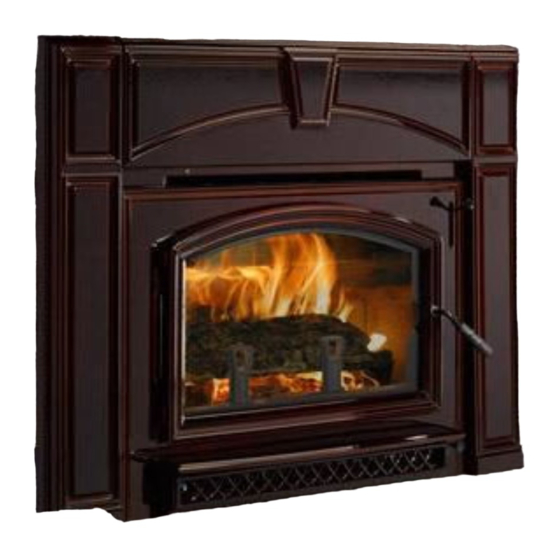

VOYAGEUR GRAND WOOD INSERT
Automatic Combustion Control (ACC)
Model(s):
VOYA-GRAND-MBK
VOYA-GRAND-PMH
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfire and generate
poisonous gases (i.e. carbon monoxide).
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
Technologies recommends NFI certified profession-
als, or technicians supervised by an NFI certified
professional.
1
Owner's Manual
Operation & Care
7075-208D
WARNING
If the information in these instruc-
tions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfire - If heater or chimney con-
nector glows, you are overfiring. Overfiring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
Do not touch glass until it is cooled
NEVER allow children to touch glass
Keep children away
CAREFULLY SUPERVISE children in same room as
fireplace.
Alert children and adults to hazards of high temperatures
High temperatures may ignite clothing or other
flammable materials.
Keep clothing, furniture, draperies and other flammable
materials away.
NOTE
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafire.com
Pour obtenir une traduction française de ce manuel, s'il vous
plaît contacter votre revendeur ou visitez www.quadrafire.com
July 8, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VOYA-GRAND-MBK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Quadra-Fire VOYA-GRAND-MBK

  • Page 1 Automatic Combustion Control (ACC) • Do not store or use gasoline or other flam- Model(s): mable vapors and liquids in the vicinity of VOYA-GRAND-MBK this or any other appliance. VOYA-GRAND-PMH • Do not overfire - If heater or chimney con- nector glows, you are overfiring.
  • Page 2: Congratulations

    Hearth & Home Technologies welcomes you to our tradition old-fashioned when it comes to craftsmanship. Each unit of excellence! In choosing a Quadra-Fire appliance, you is meticulously fabricated and gold and nickel surfaces are have our assurance of commitment to quality, durability, and hand-finished for lasting beauty and enjoyment.
  • Page 3: Table Of Contents

    VOYAGEUR GRAND Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury. • • CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
  • Page 4: Warranty

    VOYAGEUR GRAND Castile Pellet Insert C. Warranty Hearth & Home Technologies Inc. LIMITED LIFETIME WARRANTY Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer. WARRANTY COVERAGE: HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance...
  • Page 5 Castile Pellet Insert VOYAGEUR GRAND WARRANTY CONDITIONS: �� ���������������������������������������������������������������������������������������������������������������������� ���������������������������������������������������������������� �� ������������������������������������������������������������������������������������������������� �� ���������������������������������������������������������������������������������������������������������������������������� ��������������������������������������������������������������������������������������������������������������������� ����������������������������������������������������������������������������������� �� ������������������������������������������������������������������������������������������������������������������� ������������������������������������������� WARRANTY EXCLUSIONS: ������������������������������������������� �� ��������������������������������������������������������������������������������������������������������������������� ������������������������������������������������������������������������������������������ �� �������������������������������������������������������������������������������������������������������������������� ����������������������������������������������������������������������������������������������������������������� �� ���������������������������������������������������������������������������������������������������������������� �������������������������������������������������������������������������������������������������������������������������- ��������������� �� �������������������������������������������������������������������������������������������������������������- ��������������������������������������������������������������� �� ����������������������������������������������������������������������������������������������������������������������� �������������������������������������������������������������������������������������������������������������������������� ��������������������������������������������������������������������������������������������������������������������- ��������������������������������������������������������������������������������������������������������������� ��������������������������������������������������������������������������������������������������������������������...
  • Page 6: Quick Start Guide

    VOYAGEUR GRAND D. Quick Start Guide Note: These are generic drawings and may not represent your specific model. 10 Pieces of Newspaper, 10-20 Pieces of Dry Kindling ITEMS NEEDED FOR FIRST FIRE: and a Few Pieces of Dry Split Wood. OPEN AIR CONTROLS ADD NEWSPAPER LOAD WOOD...
  • Page 7: Listing And Code Approvals

    Quadra-Fire is a registered trademark of Hearth & Home Technologies. July 8, 2015 7075-208D...
  • Page 8: Operating Instructions

    VOYAGEUR GRAND User Guide Operating Instructions WARNING HOT SURFACES! Glass and other surfaces are hot during operation AND cool down. Hot glass will cause burns. DO NOT touch glass until it is cooled • • NEVER allow children to touch glass •...
  • Page 9: Fire Safety

    VOYAGEUR GRAND B. Fire Safety Hearth & Home Technologies WILL NOT warranty stoves To provide reasonable fire safety, the following should be given that exhibit evidence of over-firing. Evidence of over-firing serious consideration: includes, but is not limited to: Install at least one smoke detector on each floor of your •...
  • Page 10: Burning Process

    During this stage of burning: In order to improve the situation, we at Quadra-Fire have • The flames must be maintained and not allowed to go out developed cleaner-burning wood appliances that surpass to ensure the cleanest possible fire.
  • Page 11: Automatic Combustion Control (Acc)

    VOYAGEUR GRAND G. Automatic Combustion Control (ACC) Typically, when you build a fire, you open the air controls fully and monitor the fire to prevent it from going into an overfire situation and/or burning your wood up too quickly before you shut down the air controls to the desired burn rate.
  • Page 12: Burn Rates And Operating Efficiency

    VOYAGEUR GRAND *NOTE: These are approximate settings, and will vary with I. Burn Rates and Operating Efficiency type of wood or chimney draft. Due to altitude and other This wood heater has a manufacturer-set minimum low environmental circumstances, this operational information burn rate that must not be altered.
  • Page 13: Building A Fire

    VOYAGEUR GRAND INCORRECT POSITIONS 1. Open the Burn Rate Air and Start-Up Air Controls fully. 2. Place several wads of crushed paper on the firebox floor. Heating the flue with slightly crumpled newspaper before adding kindling keeps smoke to a minimum. 3.
  • Page 14: Fuel Reloading Instructions

    VOYAGEUR GRAND L. Fuel Reloading Instructions Processed Solid Fuel Fire Logs • NOT permitted for use in this appliance 1. This appliance has a large door with an exceptional view of the fire. • Opens to about 90 degrees and has a built-in stop. •...
  • Page 15: Operating The Blower Control Box With Snap Disc

    VOYAGEUR GRAND Storing Wood Steps to ensure properly seasoned wood: • Stack wood to allow air to circulate freely around and through woodpile. • Elevate wood pile off ground to allow air circulation underneath. • Smaller pieces of wood dry faster. Any piece over 6 in. Blower Controls Under Ash Lip (152 mm) in diameter should be split.
  • Page 16: Clear Space

    VOYAGEUR GRAND R. Opacity (Smoke) P. Clear Space Opacity is the measure of how cleanly your appliance is • Do NOT place combustible objects within 4 ft (1.2 m) of burning. the front of appliance. Figure 16.1. Opacity is measured in percent: •...
  • Page 17: Maintenance And Service

    VOYAGEUR GRAND Maintenance and Service When properly maintained, your fireplace will give you WARNING! Risk of Fire! - Do not use chimney cleaners or many years of trouble-free service. Contact your dealer to flame colorants in your appliance. It will corrode your pipe. answer questions regarding proper operation, troubleshoot- Creosote - Formation and Need for Removal ing and service for your appliance.
  • Page 18: Glass Cleaning

    VOYAGEUR GRAND E. Glass Cleaning F. Inspect Firebrick • Frequency: As desired • Frequency: After each ash removal • By: Homeowner • By: Homeowner Replace the firebrick if they become crumbly and/or if there • Clean glass with a non-abrasive glass cleaner. Abrasive is a 1/4 inch (6.35mm) gap between the bricks.
  • Page 19: Quick Reference Maintenance Guide

    VOYAGEUR GRAND G. Quick Reference Maintenance Guide Start the first inspection after the first 2 months of use, or if performance changes, and adjust your schedule according- ly. Maintenance is required for safe operation and must be CAUTION! Allow the appliance to completely cool performed to maintain your warranty.
  • Page 20: Troubleshooting Guide

    VOYAGEUR GRAND Troubleshooting Guide With proper installation, operation, and maintenance your wood stove will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist you or a qualified service person in the diagnosis of a problem and the corrective action to be taken.
  • Page 21: Service Parts Replacement

    VOYAGEUR GRAND Service Parts Replacement A. Glass Replacement - Door Assembly Quadra-Fire appliances are equipped with ceramic super heat- (Replace with 5mm ceramic glass only) resistant glass, which can only be broken by impact or misuse. WARNING! Risk of Fire or Injury!
  • Page 22: Snap Disc Replacement

    VOYAGEUR GRAND C. Snap Disc Replacement D. Wiring Diagram 1. The grille on the blower access assembly is hinged. Blower Swing the grille downward to expose the 2 screws. Fig- ure 21.1 on page 21. 2. Remove the 2 screws from the blower access assembly and slide assembly away from the appliance 3.
  • Page 23: Baffle Removal

    VOYAGEUR GRAND F. Baffle Removal 1. Remove all ash from the firebox, and extinguish all hot embers before disposal into a metal container. 2. It is easier to remove both baffle boards and ceramic blanket after the tube channel assembly has been partially disassembled and the right side lowered.
  • Page 24: Tube Channel Assembly Replacement

    VOYAGEUR GRAND G. Tube Channel Assembly Replacement Removing Tube Channel Assembly 1. Remove the 3 right side bricks. Bend Back Tabs 2. Remove the baffle protection channel by bending back Baffle Protection the tabs using needle nose pliers located at the right and Channel left side of the protection cover.
  • Page 25: Reference Materials

    VOYAGEUR GRAND Reference Materials A. Service & Maintenance Log Date of Service Performed By Description of Service July 8, 2015 7075-208D...
  • Page 26: Service Parts & Accessories

    VOYAGEUR GRAND B. Service Parts & Accessories VOYAGEUR - Grand Service Parts Beginning Manufacturing Date: Oct 2012 Cast Iron Wood Insert - Large Ending Manufacturing Date: Active VOYA-GRAND-MBK, VOYA-GRAND-PMH Part number list on following page. 11/15 7075-208D July 8, 2015...
  • Page 27: Side View

    VOYAGEUR GRAND VOYAGEUR - Grand Service Parts Beginning Manufacturing Date: Oct 2012 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
  • Page 28 VOYAGEUR GRAND VOYAGEUR - Grand Service Parts Beginning Manufacturing Date: Oct 2012 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
  • Page 29 VOYAGEUR GRAND VOYAGEUR - Grand Service Parts Beginning Manufacturing Date: Oct 2012 Ending Manufacturing Date: Active #14 Access Assembly 14.1 14.2 14.3 14.6 14.5 14 4 IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
  • Page 30 VOYAGEUR GRAND VOYAGEUR - Grand Service Parts Beginning Manufacturing Date: Oct 2012 Ending Manufacturing Date: Active #17 Control Assembly 17.2 17.1 17.3 17.4 17.5 IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Stocked Hearth and Home Technologies does not sell directly to consumers distributor.
  • Page 31 VOYAGEUR GRAND VOYAGEUR - Grand Service Parts Beginning Manufacturing Date: Oct 2012 Ending Manufacturing Date: Active #25 Cast Surround Assemblies 25.3 25.2 25.1 25.4 25.5 IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Stocked Hearth and Home Technologies does not sell directly to consumers.
  • Page 32 VOYAGEUR GRAND VOYAGEUR - Grand Service Parts Beginning Manufacturing Date: Oct 2012 Ending Manufacturing Date: Active #25 Metal Surround Assemblies 26.3 26.2 26.1 26.4 26.5 IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Stocked Hearth and Home Technologies does not sell directly to consumers.
  • Page 33 VOYAGEUR GRAND July 8, 2015 7075-208D...
  • Page 34 VOYAGEUR GRAND 7075-208D July 8, 2015...
  • Page 35 VOYAGEUR GRAND July 8, 2015 7075-208D...
  • Page 36: Contact Information

    Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafire.com CAUTION DO NOT DISCARD THIS MANUAL...
