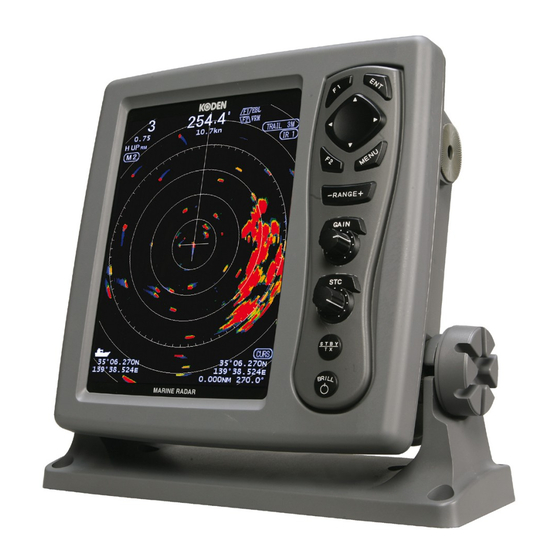

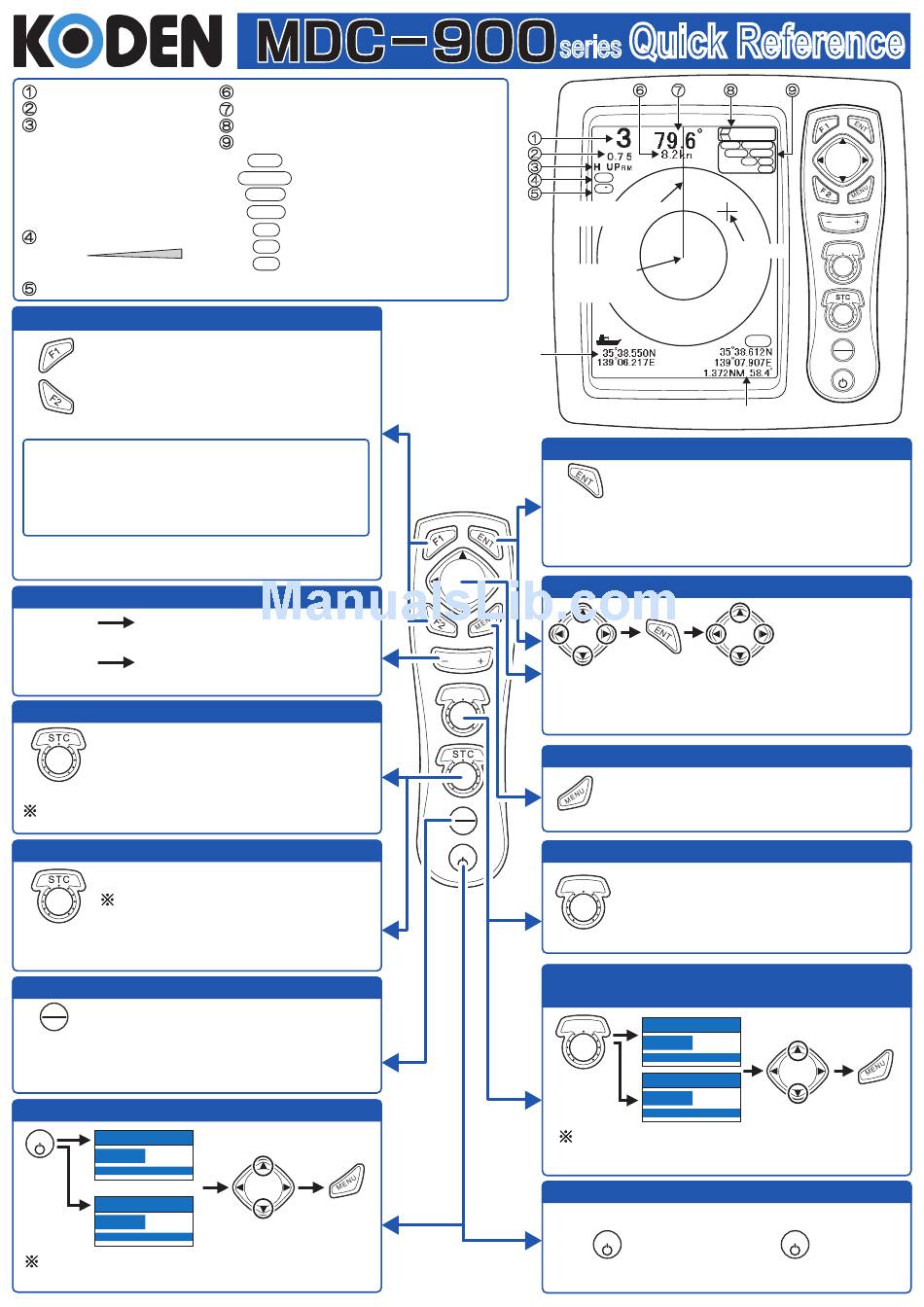

Koden MDC-900 Series Quick Reference

Range
Range Rings Interval
Mode
H UP: Head Up
N UP: North Up
C UP: Course Up
WPT UP: WPT Up
RM: Relative Motion
TM: True Motion
Pulse
Short Long
SP < M1 < M2 < L1 < L2
Off Center State
Execute the preset function. ([F1] / [F2] keys)
The operation differs depending on the
preset function.
Operate while referring to the operation
guide on the display.
Press
Functions which can be preset to [F1] / [F2] keys
[FTC], [Mode], [Display Select], [Off Center],
[Enhance], [Trail Time], [EBL], [VRM], [Color],
[PI (Parallel Cursor)], [Alarm Mode], [ACQ], [Delete],
[POB], [Target], [Other Ship], [Pulse], [Process]
By keep pressing the [F1] / [F2] key, a function assigned
to each key can be selected.
Change the range. ([- RANGE +] key)
Press [+] The observation range is widened.
(The image shrinks.)
-
Press [ ] The observation range is narrowed.
(The image expands.)
Adjust the STC. ([STC] knob)
When rotating clockwise the [STC] knob, the
effect of suppressing the reflection from sea
surface becomes stronger.
When rotating counterclockwise the [STC]
knob, suppressing the reflection from sea
Rotate
surface becomes weaker.
In PPI/PPI, the upper and lower screens change
simultaneously.
Display the video of CCD camera. ([STC] knob)
The video of the CCD camera is displayed.
The full screen and the half screen are
toggled by pressing the [STC] knob.
Press
To clear the CCD camera video, press any other key.
Start the transmission. ([STBY/TX] key)
STBY The transmission starts, and the picture is
TX
displayed.
Press
To stop the transmission, press the [STBY/TX] key
again.
Adjust the brilliance. ([BRILL] key)
LCD BRILL
BRILL
10
Press
PANEL BRILL
10
The [LCD BRILL] and the [PANEL BRILL] are
toggled by pressing the [BRILL] key.
SPD
Heading
State of [F1]/[F2] key assignment
Display Setting Information
FTC set value
FTC 3
Trail Time
TRAIL 6M
Alarm Mode
ALM IN
Sleep Setting
SLP 5M
Interference Rejection Setting
IR 2
Enhance Setting
ENH 1
PROCESS: OFF/ON
PRC
When set to OFF, the data is not displayed.
own ship's information
Press
Press
series
1
2
3
M 1
4
OFF
CENT
5
heading line
own ship's
position
Delete the heading line. ([ENT] key)
Keep pressing
When releasing the [ENT] key, the heading line
appears again, and the + cursor returns to the own ship
position,
Measure the distance/heading of 2-points. ([ENT] key)
RANGE
Press
The cursor
GAIN
moves.
Press the [MENU] key to finish.
Open the menu. ([MENU] key)
The menu is displayed.
Press the [MENU] key again to close the menu.
(For the menu, see the back side.)
STBY Press
TX
Adjust the gain. ([GAIN] knob)
BRILL
GAIN
Rotate
Change the range/gain of the lower screen in the
PPI/PPI. ([GAIN] knob)
GAIN
Press
The [SUB-SCREEN RANGE] and the
[SUB-SCREEN GAIN] are toggled by pressing the
[GAIN] knob.
Turn on/off the power. ([BRILL] key)
Turn on the power.
BRILL
Press
Quick Reference
6 7 8 9
F1
EBL
F2
VRM
FTC 3 TRAIL 6M
ALM IN SLP 5M
IR 2 ENH 1
PRC
+ cursor
CURS
+ cursor information
While pressing the [ENT] key,
the heading line disappears.
The distance/direction
from the origin to the
+ cursor is displayed.
Press Press
The origin
is set.
When rotating clockwise the [GAIN] knob,
the gain increases.
When rotating counterclockwise the [GAIN]
knob, the gain decreases.
SUB-SCREEN RANGE
5.0
SUB-SCREEN GAIN
5.0
Press
Turn off the power.
BRILL
Turn off the power. Keep pressing
the key for more than 3 seconds.
