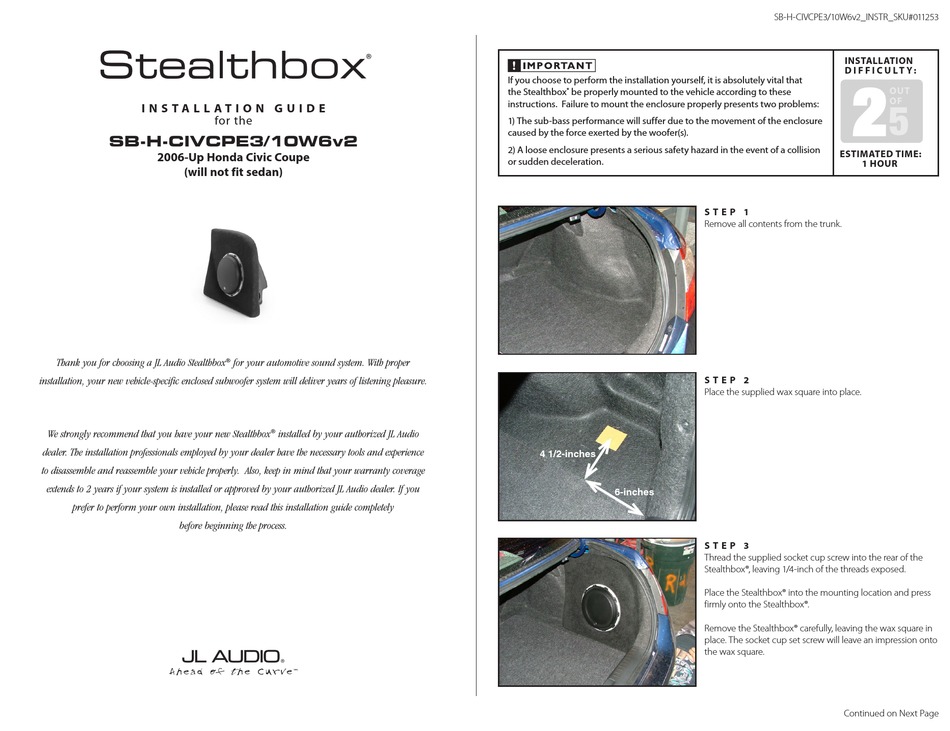

I n s t a l l a t I o n G u I d e
for the
SB-H-CIVCPE3/10W6v2
2006-up Honda Civic Coupe
(will not fit sedan)
Thank you for choosing a JL Audio Stealthbox
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage
extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this installation guide completely
before beginning the process.
® for your automotive sound system. With proper
® installed by your authorized JL Audio
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
4 1/2-inches
6-inches
SB-H-CIVCPE3/10W6v2_INSTR_SKU#011253
InstallatIon
d I F F I C u l t Y :
2
estImated tIme:
1 HouR
s t e P 1
Remove all contents from the trunk.
s t e P 2
Place the supplied wax square into place.
s t e P 3
Thread the supplied socket cup screw into the rear of the
Stealthbox®, leaving 1/4-inch of the threads exposed.
Place the Stealthbox® into the mounting location and press
firmly onto the Stealthbox®.
Remove the Stealthbox® carefully, leaving the wax square in
place. The socket cup set screw will leave an impression onto
the wax square.
Continued on Next Page
