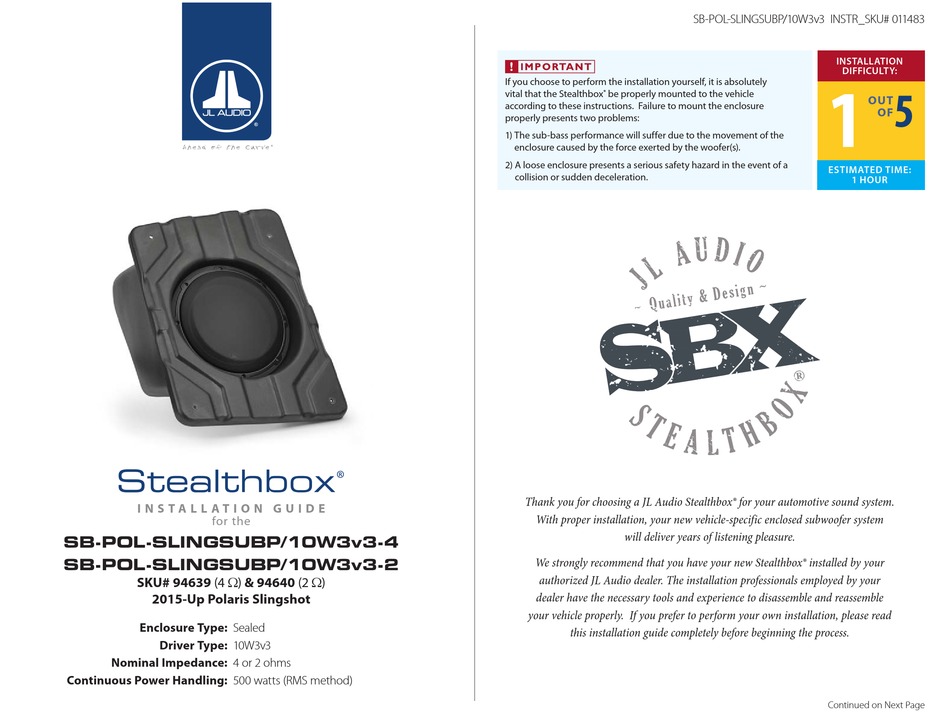

I N S T A L L A T I O N G U I D E
for the
SB-POL-SLINGSUBP/10W3v3-4
SB-POL-SLINGSUBP/10W3v3-2
SKU# 94639 (4 W) & 94640 (2 W)
2015-Up Polaris Slingshot
Enclosure Type: Sealed
Driver Type: 10W3v3
Nominal Impedance: 4 or 2 ohms
Continuous Power Handling: 500 watts (RMS method)
If you choose to perform the installation yourself, it is absolutely
vital that the Stealthbox
be properly mounted to the vehicle
®
according to these instructions. Failure to mount the enclosure
properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the
enclosure caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a
collision or sudden deceleration.
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your
authorized JL Audio dealer. The installation professionals employed by your
dealer have the necessary tools and experience to disassemble and reassemble
your vehicle properly. If you prefer to perform your own installation, please read
this installation guide completely before beginning the process.
SB-POL-SLINGSUBP/10W3v3 INSTR_SKU# 011483
INSTALLATION
DIFFICULTY:
1
OUT
ESTIMATED TIME:
1 HOUR
Continued on Next Page
5
OF
Advertisement
Related Manuals for JL Audio Stealthbox SB-POL-SLINGSUBP/10W3v3
Summary of Contents for JL Audio Stealthbox SB-POL-SLINGSUBP/10W3v3
- Page 1 1 HOUR Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. I N S T A L L A T I O N G U I D E With proper installation, your new vehicle-specific enclosed subwoofer system for the will deliver years of listening pleasure.
- Page 2 150249 Foam Tape (not shown) Note: For optimum performance, JL Audio recommends applying the included Foam Strips (or sound damping material) to surrounding plastic panels to reduce unwanted vibrations. Page 2 • JL Audio, Inc., 2017 Continued on Next Page...
- Page 3 Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox® amplifier. Other kits are available should you be using more than one amplifier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for both channels of the amplifier.
- Page 4 Top Bracket and ABS Plate, around the front of the compartment latch, and back through the opposite inner hole in the ABS Plate and Top Bracket, into the storage compartment, as shown. Page 4 • JL Audio, Inc., 2017 Continued on Next Page...
- Page 5 Button Head Screws. Pass an assembly through each of the holes in the bottom of the enclosure, and thread it into the M6 - 1 U-Nut. Do not fully tighten at this time. Page 5 • JL Audio, Inc., 2017 Continued on Next Page...
- Page 6 . j l a u d i o . c o m All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox®” and the Stealthbox logo, and “How we play®” are registered trademarks of JL Audio, Inc.
