Stealthbox™
Fits 2000 Extended-Cab Full-Size GM Pickup Trucks
and Suburban, Tahoe, Yukon, Yukon XL SUV's
Installation Guide:
This Stealthbox is a product which requires professional installation skills and tools. Please read this installa-
tion guide thoroughly before beginning the project. It will guide you step by step through the installation.
Several of the steps in this process may require two people to accomplish.
It is absolutely vital that the enclosure be properly mounted to the vehicle according to these instructions.
Failure to mount the enclosure properly presents two problems: 1) The sub-bass performance will suffer due
to the movement of the enclosure caused by the force exerted by the woofer and 2) A loose enclosure
presents a serious safety hazard in the event of a collision or sudden deceleration.

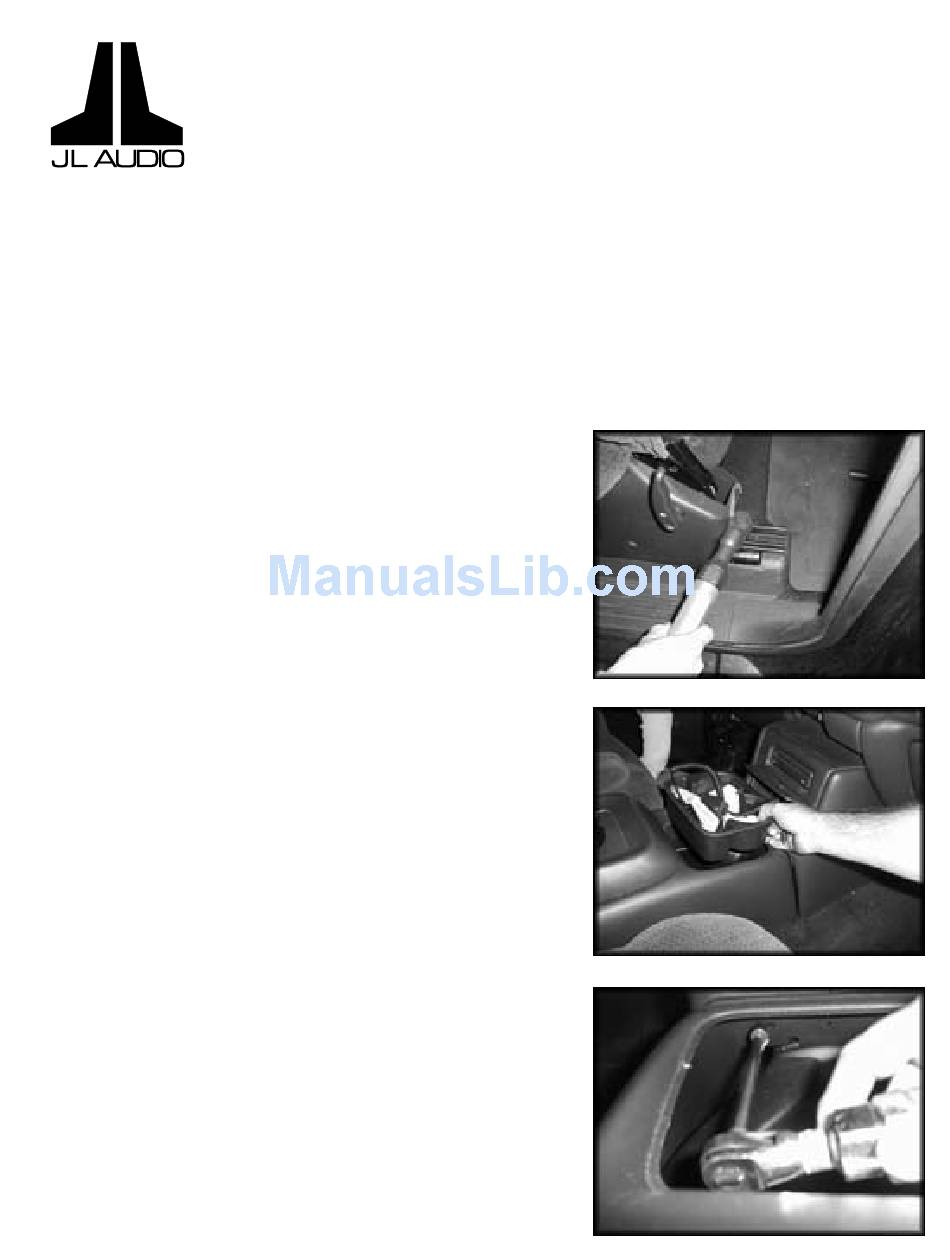

STEP 1: Remove the front seats by removing the nuts and bolts
at the front and rear. A socket can be used if the proper Torx bit
is not available (11mm in rear and 15mm in front).
STEP 2: Remove the cup holder tray in order to access the
mounting screws.
STEP 3: Remove the mounting screws at the forward edge of the
console body.
SB-GM-SLVCNSL/10W3-D6, JL AUDIO, Inc 2000 • Page 1
Sheet SKU#011142 Revision 8/15/00
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for JL Audio Stealthbox SB-GM-SLVCNSL/10W3-D6
Summary of Contents for JL Audio Stealthbox SB-GM-SLVCNSL/10W3-D6
- Page 1 STEP 2: Remove the cup holder tray in order to access the mounting screws. STEP 3: Remove the mounting screws at the forward edge of the console body. SB-GM-SLVCNSL/10W3-D6, JL AUDIO, Inc 2000 • Page 1 Sheet SKU#011142 Revision 8/15/00...
- Page 2 STEP 8: Remove the cup holder. STEP 9: Remove the two screws as shown in the picture to the right. These screws secure the internal storage tray from the rear. SB-GM-SLVCNSL/10W3-D6, JL AUDIO, Inc 2000 • Page 2 Sheet SKU#011142 Revision 8/15/00...
- Page 3 Remove the console body from the vehicle. STEP 12: Remove and discard the duct. STEP 13: Modify the internal storage tray by cutting around its perimeter approximately 1 1/2" below the upper lip. SB-GM-SLVCNSL/10W3-D6, JL AUDIO, Inc 2000 • Page 3 Sheet SKU#011142 Revision 8/15/00...
- Page 4 STEP 16: Run speaker wire to the console area. STEP 17: Bolt the bracket to the bottom of the Stealthbox (Ensure proper operation of the Stealthbox prior to mounting it to the bracket). SB-GM-SLVCNSL/10W3-D6, JL AUDIO, Inc 2000 • Page 4 Sheet SKU#011142 Revision 8/15/00...
- Page 5 STEP 19: Install the original tray (modified in steps 13 and 18) with the new provided insert. STEP 20: Connect the speaker wire to the Stealthbox. Mount the bracket/Stealthbox into the vehicle. SB-GM-SLVCNSL/10W3-D6, JL AUDIO, Inc 2000 • Page 5 Sheet SKU#011142 Revision 8/15/00...
- Page 6 Driver Type: JL AUDIO 10W3-D6 Subwoofer Cont. Power Handling: 250 Watts Nominal Impedance: 3 10369 N. Commerce Pkwy, Miramar, Florida 33025-3921 Voice: (954) 443-1100 Fax: (954) 443-1111 SB-GM-SLVCNSL/10W3-D6, JL AUDIO, Inc 2000 • Page 6 Supplied Hardware: (4) 1/4" X 2" Bolts (4) 1/4" Washers (4) #8 Flat Head Screws (4) 1/4"...
