Fits 92-97 gm suburbans, 88-97 gm full- size trucks, 92-97 gmc yukons and chevy tahoes (2 and 4 door models)

Advertisement

Quick Links

This Stealthbox is designed to mount between the front bucket seats, replacing the center console.
It is not designed for installation in vehicles with bench seats.
Please read this installation guide thoroughly before beginning the project. It will guide you step by
step through the process. This product requires professional installation skills and tools. We highly
recommend that an authorized JL AUDIO dealer performs the installation.
It is absolutely vital that the Stealthbox be properly mounted to the vehicle according to these instruc-
tions. Failure to mount the enclosure properly will result in
inferior bass performance and potential danger in the event of
a collision or sudden jolt to the vehicle.

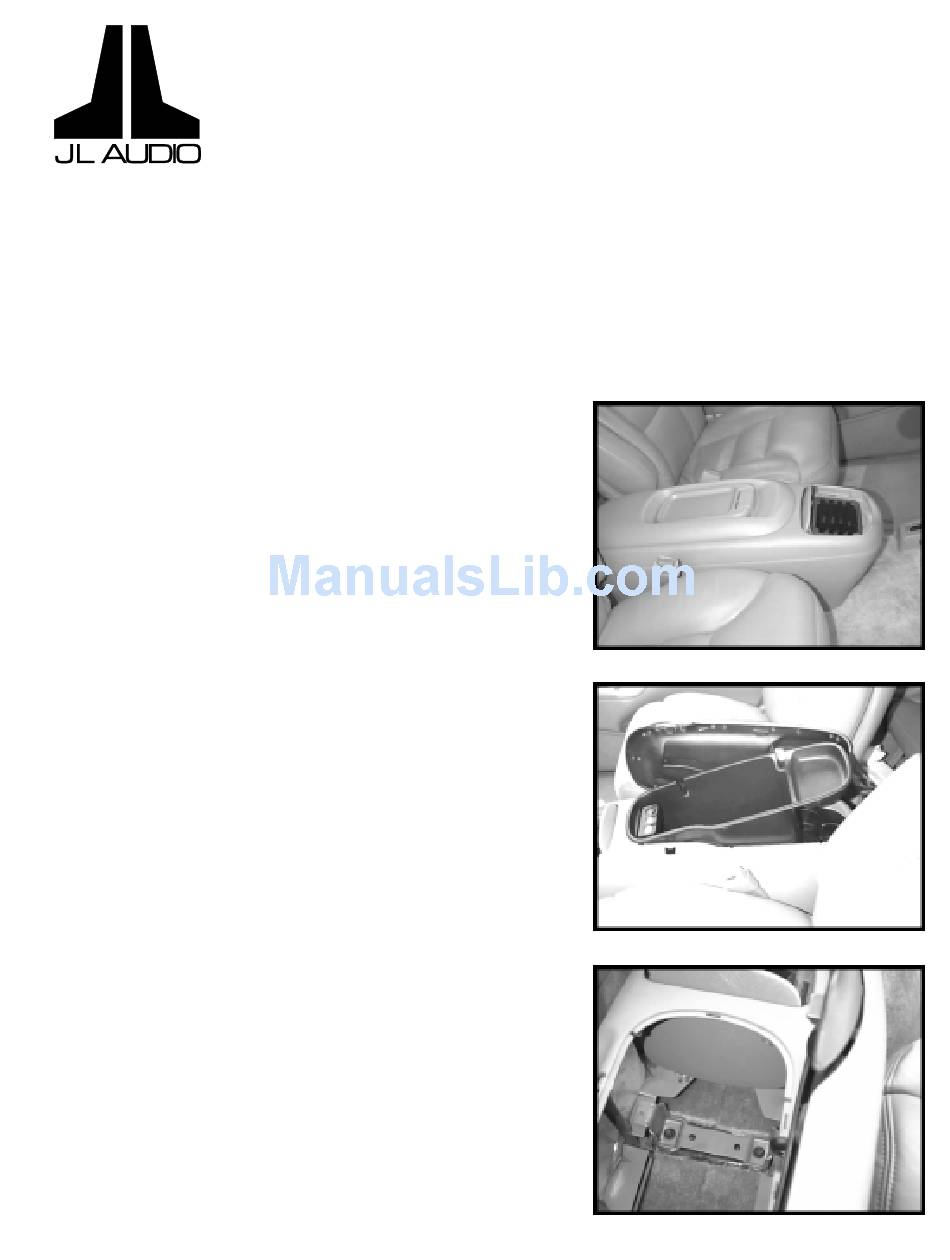

STEP 1: Remove the storage bin from the front portion of the
center console by gently prying it out. Save this piece for later
use.
STEP 2: Remove the inner storage bin from the console by
gently prying it out. Save this piece in the event that the
original console is ever reinstalled.
STEP 3: Using a 10mm socket, remove the two bolts that
hold the front console bracket to the floor.
SB-GM-BURB/10W3 - JL AUDIO, Inc 2001 • Page 1
SB-GM-BURB/10W3 STEALTHBOX
Fits 92-97 GM Suburbans, 88-97 GM Full-
Size Trucks, 92-97 GMC Yukons and Chevy
Tahoes (2 and 4 Door Models)
Installation Guide:
Sheet SKU#011118 Revision 5/21/01
