Summary of Contents for Windsor Expert

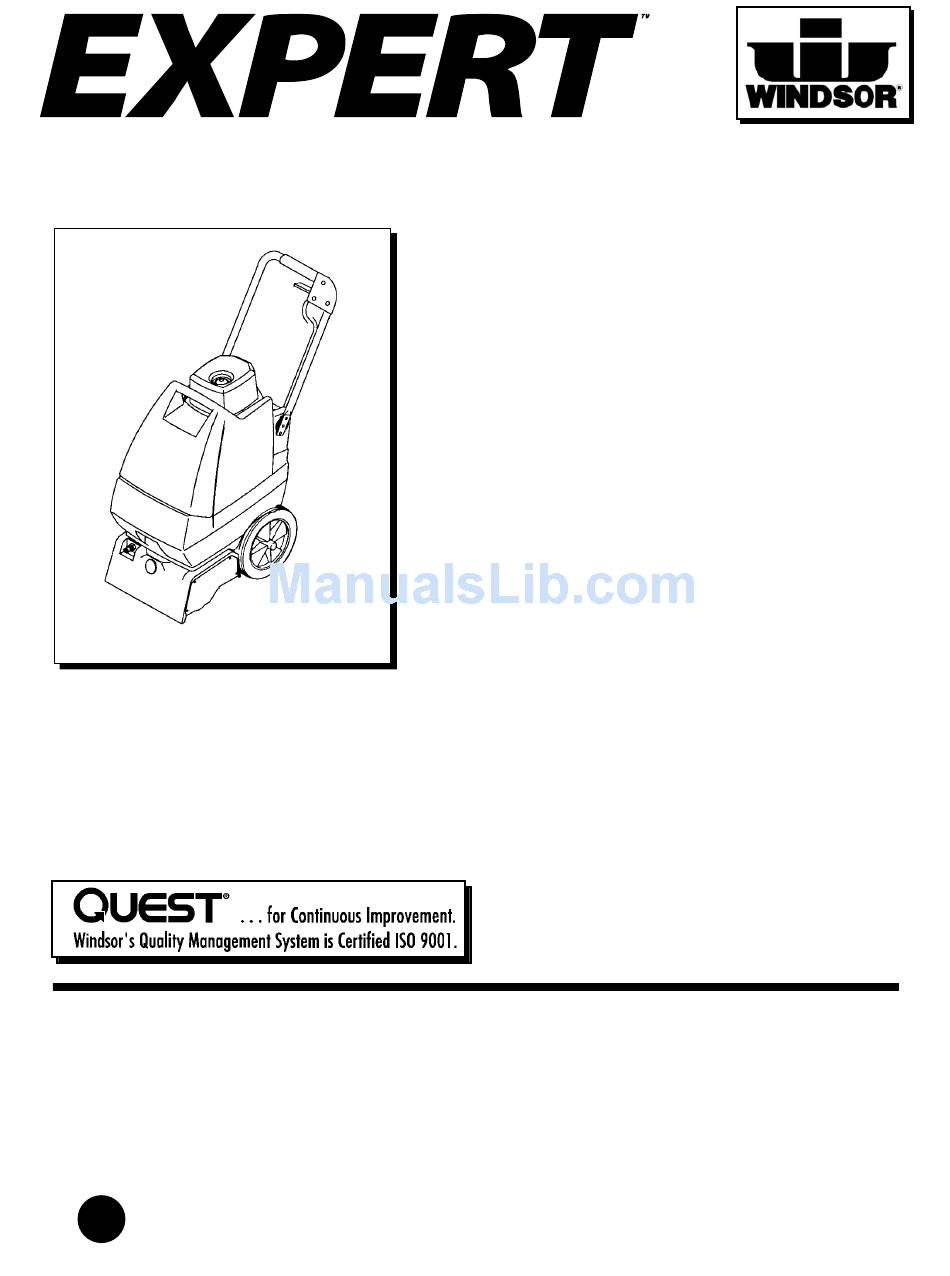

- Page 1 CARPET EXTRACTOR MODEL POWER SOURCE 115V ELECTRIC Read these instructions before using the machine 98363 08/14/07...
-
Page 2: Machine Data Log/Overview
DATE OF PURCHASE __________________________ SERIAL NUMBER ______________________________ SALES REPRESENTATIVE # _____________________ DEALER NAME ________________________________ OPERATIONS GUIDE NUMBER ___________________ PUBLISHED __________________________________________ YOUR DEALER Name: __________________________________________________________________________________________________ Address: _______________________________________________________________________________________________ For the name and address of your dealer contact: Windsor Industries Phone Number: _________________________________________________________________________________________ EXP 98363 08/25/04... -
Page 3: Table Of Contents
TABLE OF CONTENTS Machine Data Log/Overview......1 Table of Contents..........2 HOW TO USE THIS MANUAL How to use this Manual.........1-1 SAFETY Important Safety Instructions ......2-1 Hazard Intensity Level ........2-2 Grounding Instructions........2-3 OPERATIONS How It Operates..........3-1 Controls............3-2 Operating Instructions........3-3 MAINTENANCE Protect From Freezing........4-1 Daily/ Regular Maintenance......4-1 Periodic Maintenance. -
Page 4: How To Use This Manual
HOW TO USE THIS MANUAL The SAFETY section contains important information This manual contains the following sections: regarding hazard or unsafe practices of the machine. Levels of hazards is identified that could HOW TO USE THIS MANUAL result in product or personal injury, or severe injury SAFETY resulting in death. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. This machine is for commercial use. WARNING: To reduce the risk of fire, electric shock, or injury: Connect to a properly grounded outlet. -
Page 6: Hazard Intensity Level
Unless Operation Guide is Read and understood. In Flammable or Explosive areas. In areas with possible falling objects. WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts. EXP 98363 08/25/04... -
Page 7: Grounding Instructions
GROUNDING INSTRUCTIONS THIS PRODUCT IS FOR COMMERCIAL USE ONLY. PROPER GROUNDING ELECTRICAL: Grounding Pin Metal Screw In the USA this machine operates on a standard 15 amp 115V, 60 hz, A.C. power circuit . The amp, hertz, and voltage are listed on the data label found on each Grounded Adaptor machine. -
Page 8: Operations
OPERATIONS HOW IT OPERATES: CHEMICALS This machine is a portable, easy to use carpet extractor designed for use indoors, in a household or light Use only the suitable chemicals listed below. industrial environment. Using incompatible chemicals will damage the When operating as a carpet extractor, cleaning solution machine. -
Page 9: Controls
CONTROLS Brush Switch On/Off. Turns brush motor on and off. VIEW: TOP of CONTROL Solution Switch On/Off. Turns solution pump on and off. Vac Switch On/Off . Turns vacuum motor on and off. Main Handle. Solution Lever. Controls the amount of flow of solution to the floor. -
Page 10: Operating Instructions
Chemical Section. Using incompatible ACCESSORY TOOLS chemicals will damage the machine. Carefully read ingredients on manufacturer’s label before This extractor is easily adapted for use with Windsor using any product in this machine. accessory tools: Contact Customer Service for details. OPERATING THE MACHINE... -
Page 11: Maintenance
MAINTENANCE 3. Periodically inspect all hoses, electrical cables, filters, PROTECT FROM FREEZING gaskets and connections on your machine. Frayed If it becomes necessary to store in temperatures that or cracked hoses should be repaired or replaced to could drop below 40°F, the pumping system, hoses eliminate vacuum or solution pressure loss. -
Page 12: Service Schedule
MAINTENANCE SERVICE SCHEDULE MAINTENANCE DAILY WEEKLY QUARTERLY Check machine for cord damage Check recovery dome and gasket for damage and cleanliness Check brush – should be clean with no lint or strings attached Inspect vac shoe for blockage; remove fibers with coat hanger, etc. Check hoses for wear, blockages, or damage Check handles, switches, and knobs... -
Page 13: To Access Pump & Brush Motor
MAINTENANCE TO ACCESS PUMP AND BRUSH MOTOR SPRAY JET Situate machine in order to access bottom Note: To prevent a clogged jet due to alkali build-up, cover. Remove screws (6) and bottom cover. the spray system should be flushed with 1 to 2 To remove brush motor, loosen nuts at brush gallons of clean hot water at the end of each day. -
Page 14: Vacuum Motor Replacement
Place trip under conditions of abuse. stop in groove. Motor Vacuum Carbon Brushes Replacement (Windsor) End Cap WARNING: The green If armature commutator is grooved, extremely pitted or not Carbon ground wire must be concentric, the motor will need to be replaced or sent to a Brushes attached for safe operation. -
Page 15: Wiring Diagram
WIRING DIAGRAM 115V EXPERT EXP 98363 08/25/04... -
Page 16: Troubleshooting Chart
TROUBLESHOOTING CHART PROBLEM CAUSE SOLUTION Is the cord plugged in. Plug in cord. No Power, Nothing Circuit breaker tripped in building. Reset breaker Runs Faulty switch. Call for service. Faulty power cord or pigtail. Call for service. Vacuum circuit breaker tripped. Reset breaker Vacuum Motor Will Not Faulty main vacuum switch. - Page 17 TROUBLESHOOTING CHART PROBLEM CAUSE SOLUTION Remove belt cover on right side of machine. Belt broken. Inspect belt. Replace if necessary. Faulty switch. Replace. Brush Not Turning Faulty circuit breaker. Replace If the belt, circuit breaker, and switch have been tested and found to be in Faulty brush motor.
-
Page 18: Vac/Solution Tank/Control Panel
VAC/SOLUTION TANK/CONTROL PANEL “-“ IN LOWER CORNER 98363 12/04/04... - Page 19 STRAINER, 3/8” NPT 60 MESH 35222 GASKET, 2 ID X 2.75 X 3/8 THK PORON 50746 LABEL, WIRING DIAGRAM 70517 SCREW, 8-32 X 1/2 FHMS SS 51254 LOCK, HANDLE EXPERT TANK 50776 LABEL, FOR SAFETY 35193 GASKET, REAR COVER 03102 AXLE, WHEEL 87146 WASHER, 1/2 ID X 1”...
-
Page 20: Brush/Brush Motor/Frame
BRUSH/BRUSH MOTOR/FRAME EXP 98363 08/25/04... - Page 21 BRUSH/BRUSH MOTOR/FRAME PARTS LIST SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 41279 HOUSING, BRUSH W/VAC SHOE 27674 COVER, ACCESS PORT 39276 HOSE, 1.5 BLK VAC X 14” 35195 GASKET, .25 X .75 X 2.00 L 27759 CUFF, 1.5” BLACK HOSE 67138 RING, 3/8 EXTERNAL SNAP 57104...
-
Page 22: Pump Assembly
PUMP ASSEMBLY EXP 98363 08/25/04... -
Page 23: Pump Assembly Parts List
WASHER, #10 LOCK EXT. STAR 140034 BRACKET, PUMP 40009 HOSEBARB, 1/4 MPT X 1/4 40065 HOSEBARB, 1/4 MPT X 1/4 X 90° 65164 PUMP ASM, EXPERT 70581 SCR, 10-32 X 3/8 HHTFW/WASH 78024 TEE, 1/4 BRANCH 40033 HOSEBARB, 1/4 MPT X 3/8 90° 20042... -
Page 24: Solution Lever/Main Handle
SOLUTION LEVER/MAIN HANDLE EXP 98363 08/25/04... - Page 25 WIRE ASM, 19” GRN/18 78008 X 78008 20016 CLAMP, 1/4 ID HOSE 73866 SPACER, 1/2 OD X .219 ID X 1/2 NYLON 140308 BRACKET, VALVE EXPERT 70745 SCR, #10-5/8 PPHST HI LO BLK 66086 PIN, ROLL 3/16 X 5/8 EXP 98363 02/23/05...
-
Page 26: Recovery Tank
RECOVERY TANK TO REAR COVER 4(3) EXP 98363 08/25/04... - Page 27 62465 PLATE, COVER 70114 SCR, 10-32 X 3/4 POLYFAST 35167 GASKET, COVER 75212 TANK, RECOVERY 34140 FILTER, VAC INTAKE 78162 TUBE, 1.5 PVC X 4.88” 27417 CORD, 1/8 X 1/2” 500009 LABEL, WARNING 500016 LABEL, EXPERT 5-10 EXP 98363 08/25/04...
-
Page 28: Solution Plumbing/Spray Jet
SOLUTION PLUMBING/SPRAY JET 5-11 EXP 98363 08/25/04... - Page 29 CLAMP, 1/4 ID HOSE 20042 CLAMP, 3/8 HOSE 31028 ELBOW, 1/8 45° STREET 39509 HOSE, 3/8” CLEAR X 15.5” 62800 PLATE, GUARD EXPERT 40064 HOSE BARB, 1/8” FPT X 1/4” OPEN 44066 JET, BRASS MINI-QUICK 44052 JET BODY, MINI-QUICK W/SEAL...
-
Page 30: Spare Parts And Accessories
GASKET, BOTTOM COVER 73169 STRAIN RELIEF, CORD HOOK 34140 FILTER, VAC INTAKE 41258 BRUSH SET, 120V 5.7 VAC, AMETEK 140687 BRUSH SET, 120V VAC, WINDSOR ACCESSORIES 89227 STANDARD WAND SPOTTING WAND HANDTOOL W/1/4 MQD DHTK DHT ACCESSORY KIT DOUBLE DRY HAND TOOL...
