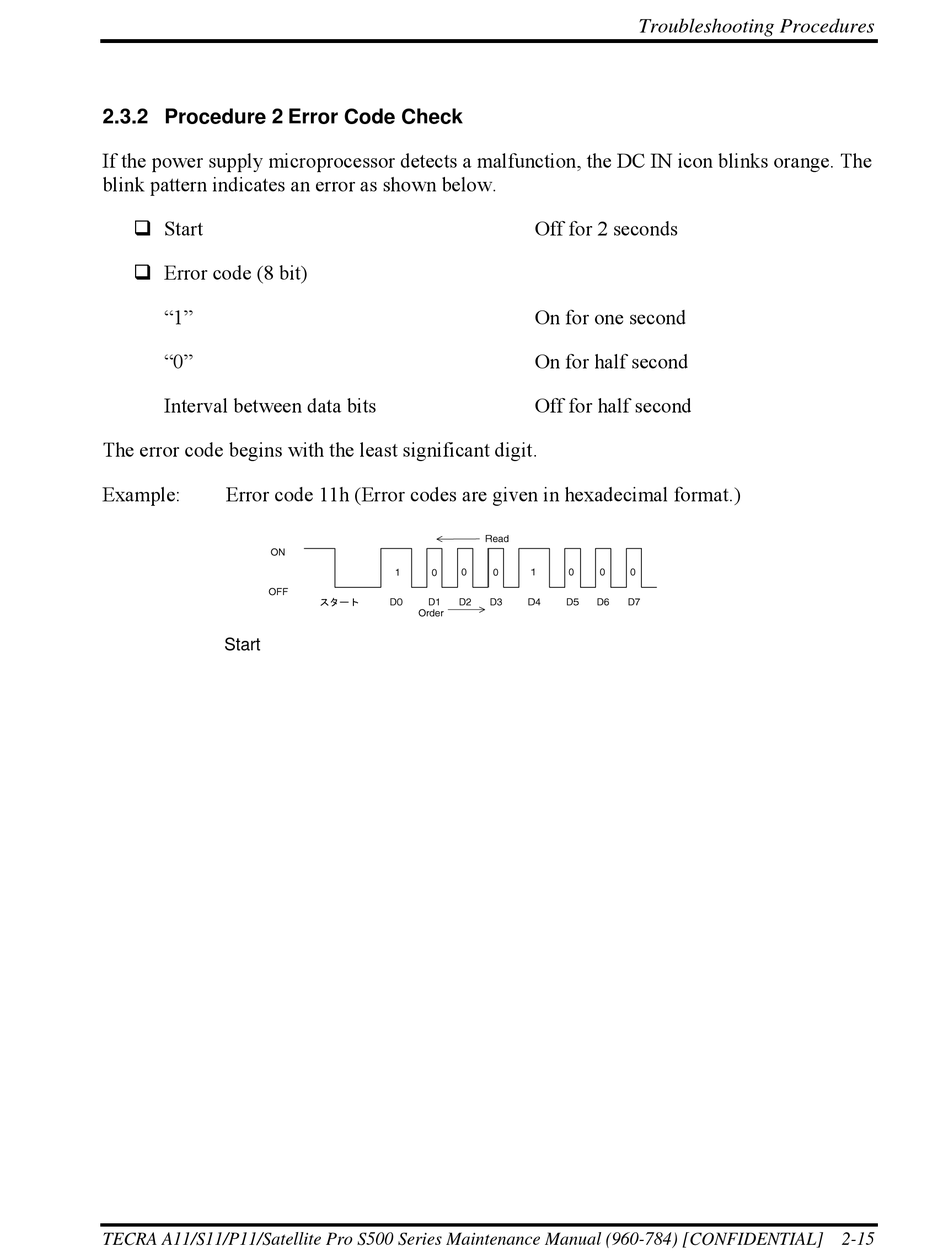

2.3.2 Procedure 2 Error Code Check

If the power supply microprocessor detects a malfunction, the DC IN icon blinks orange. The
blink pattern indicates an error as shown below.
 Start
 Error code (8 bit)
"1"
"0"
Interval between data bits
The error code begins with the least significant digit.
Example:
Error code 11h (Error codes are given in hexadecimal format.)
Start
TECRA A11/S11/P11/Satellite Pro S500 Series Maintenance Manual (960-784) [CONFIDENTIAL] 2-15
Troubleshooting Procedures
Off for 2 seconds
On for one second
On for half second
Off for half second
