Direction Indicator

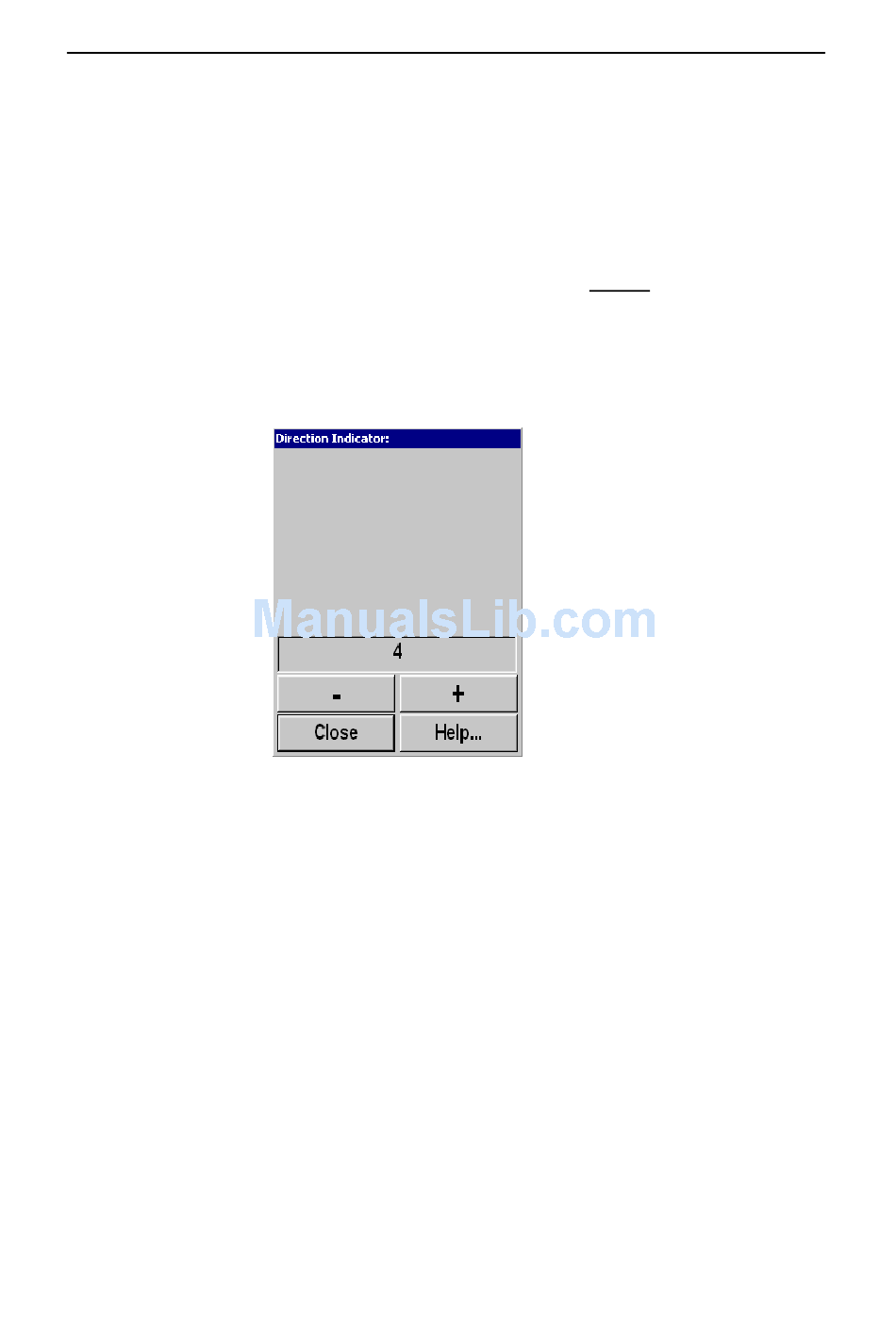

The Direction Indicator is accessed from the Vertical View menu
when Data Source is set to Indicator.
The Data Source parameters are explained on page 92.
→
The Vertical View menu is activated by pressing the View button
on the Sonar Operating Panel (or the middle mouse button) while
positioning the cursor in any of the vertical views, and then
selecting View menu on the View pop-up menu.
The Trawl Menu is accessed in the same manner, but with the
cursor located in the Trawl view.
Here the vertical slices can be trained independent of the audio
channel.
The direction indicator is shown in the horizontal presentation as
a yellow dotted line.
