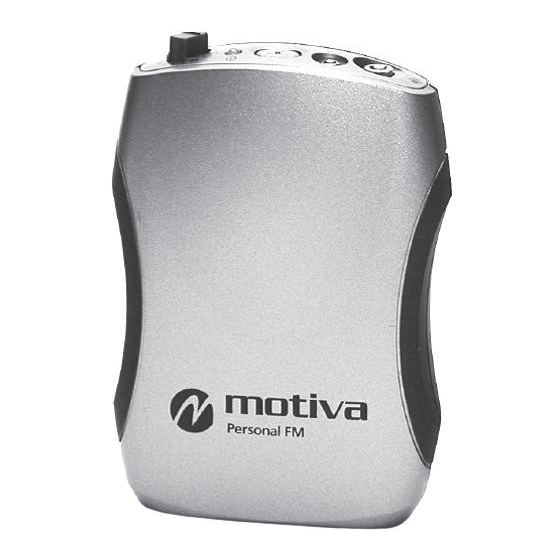

Williams Sound Transmitter T36 User Manual
Personal wireless fm listening system
Hide thumbs
Also See for Transmitter T36:
- Instructions for use and care manual (8 pages) ,
- Instructions for use and care manual (6 pages)
Related Manuals for Williams Sound Transmitter T36
Summary of Contents for Williams Sound Transmitter T36

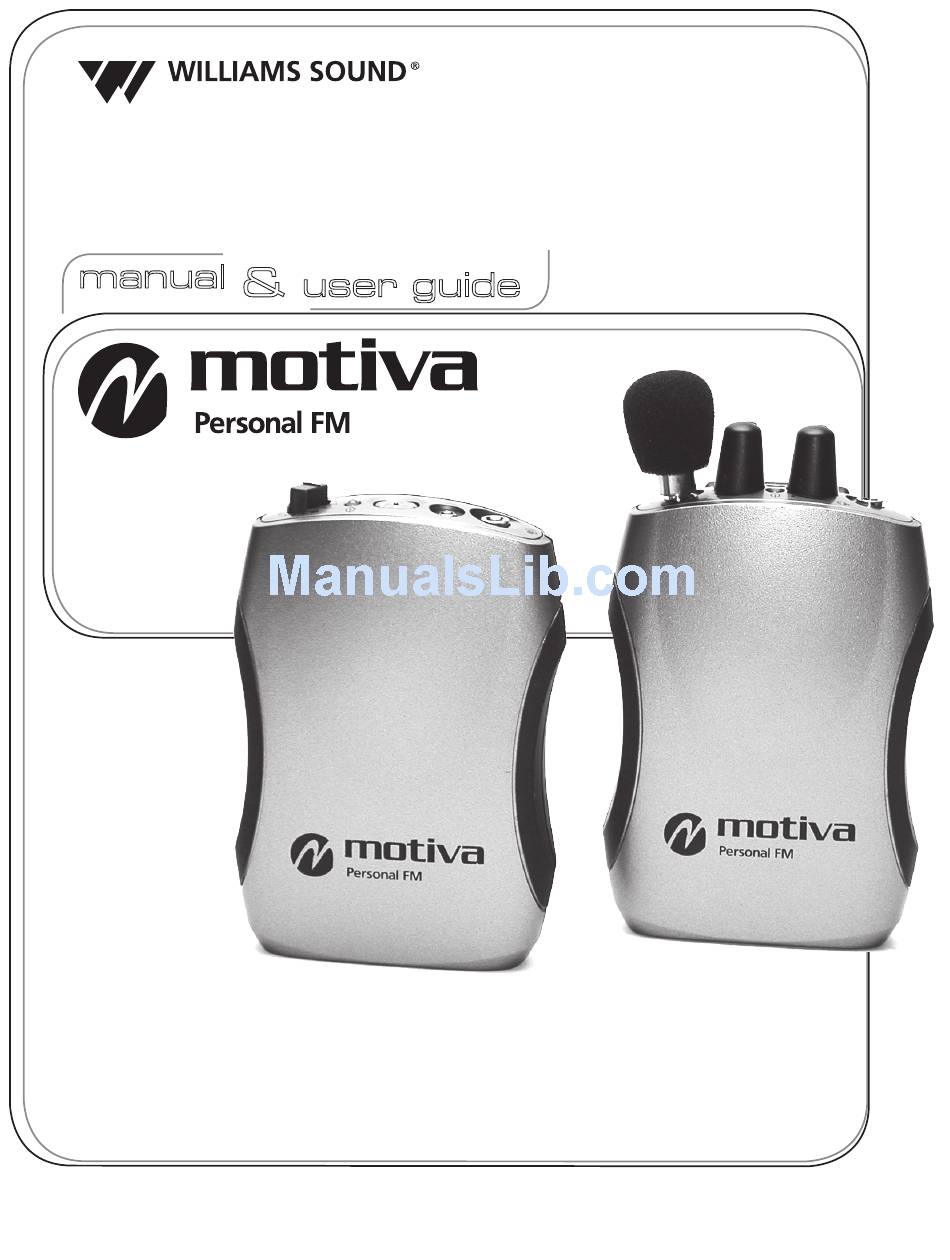

- Page 1 H e l p i n g P e o p l e H e a r manual & user guide ™ Wireless FM Listening System Models PFM 360, PFM 330, PFM 360 RCH & PFM 330 RCH Transmitter Model PFM T36 Optional Receiver Models PFM R36, R33 MAN 146B...
-
Page 3: Table Of Contents
To avoid difficulties, please read through these instructions as you begin using the system. Then save them for questions that arise as you continue to use your Williams Sound Personal FM System. If you have problems with the PFM system, don’t hesitate to call us toll-free at 1-800-843-3544. -
Page 4: System Components
System Components Belt Clip Transmitter (PFM T36) with removable Belt Clip Lavalier microphone (MIC 090) Mini earphone (EAR 013) Stereo auxiliary input cable (WCA 087) System Carry Case (CCS 041) Tuning Tool (PLT 011) Instructions (MAN 146) PFM System 330 Only: Personal FM Receiver (PFM R33) (4) AA Alkaline non-rechargeable batteries (BAT 001) PFM System 360 Only:... -
Page 5: Safety Information
Product Recycling: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to an electronics recycling center or return the product to the factory for proper disposal. -
Page 6: Using The Pfm T36 Transmitter
Using the PFM T36 Transmitter IMPORTANT: If Alkaline (nonrechargeable) batteries are being installed, slide the battery selec- tion switch in the battery compartment to the “Alkaline” position. See FIG 1 below. If installing NiMH (or rechargeable) batteries, slide the battery selection switch to the “NiMH” position. FIG. -
Page 7: Gain Control
7. Lapel clip microphones should be attached to a collar or lapel, as close to the speaker’s mouth as practical. If using an optional headset microphone, position the mic as close to the side of the mouth as possible without touching the mouth See FIG 3. FIG. -
Page 8: Auxiliary Input Level
AUXILIARY INPUT LEVEL The auxiliary input level can be used to adjust the auxiliary input level only. To adjust, open the battery door and locate the Auxiliary Input Level (see FIG 4). Use the supplied small screwdriver and rotate to increase “+”... -
Page 9: Using The Pfm R33 / 36 Receiver
Using the PFM R33 / R36 Receiver IMPORTANT: If Alkaline (nonrechargeable) batteries are being installed, slide the battery selec- tion switch in the battery compartment to the “Alkaline” position. See FIG 5 below. If installing NiMH (or rechargeable) batteries, slide the battery selection switch to the “NiMH” position. FIG. - Page 10 6. Adjust the receiver tone control to your needs. Locate the tone control inside the battery door. Use the supplied small screwdriver to rotate the “Tone Control”. A low setting (fully counter-clockwise “-”) emphasizes lower frequencies. A medium setting (rotated to a vertical position) has some low frequency cut.
- Page 11 Optional Controls: MAX GAIN CONTROL Adjust the “Max Gain” if you have sensitive hearing due to hearing loss. This feature limits the maxi- mum volume output by the receiver in case of sudden bursts of sound. To adjust the “Max Gain”, use the supplied small screwdriver and turn it to a comfortable maximum volume level.
-
Page 12: Belt Clip Installation
BELT CLIP INSTALLATION To Install: Position the belt clip on the rear of the device as shown in FIG 8A. Turn the belt clip 180° left or right as shown in FIG 8B. The belt clip is now installed and ready for use. To Remove: Turn the belt clip 180°... -
Page 13: Battery Information
CHG 3512 or CHG 3512 PRO multi-charger. For ordering information, please contact Williams Sound at 800-843-3544. Additional information on the CHG 3502 is listed below. WARNING: Use this charger with Williams Sound NiMH rechargeable batteries only. DO NOT use non-rechargeable batteries, such as alkaline and carbon zinc, which may heat up and burst, causing possible injury and damage to the equipment. -
Page 14: Limited Warranty
Williams Sound products are engineered, designed and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams Sound warrants the T36 transmitter, R36 and R33 receivers against defects in materials and workmanship for FIVE (5) years. During the first five years from the purchase date, we will promptly repair or replace. -
Page 15: System Specifications
SYSTEM SPECIFICATIONS FM RECEIVER, MODEL PFM R33 Dimensions: 4.6” L x 2.8” W x 1.1” H (116 mm x 71 mm x 28 mm) Weight: 3.4 oz (96 g), no batteries Color: Titanium and Black Housing Material: Shatter-resistant PC/ABS plastic Battery Type: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001), 70 mA nominal current drain, approximately 21 hours life, or Two (2) -
Page 16: Fm Receiver, Model Pfm R36
SYSTEM SPECIFICATIONS FM RECEIVER, MODEL PFM R36 Dimensions: Weight: Color: Housing Material: Battery Type: Operating Frequencies: FM Deviation: Sensitivity: Freq Response: Signal-to-Noise Ratio: Receive Antenna: External Controls: Internal Controls (Inside battery compartment) Indicators: Mic Input: Audio Output: Approvals/Directives: Warranty: Statement for compliance to “RSS-Gen Issue 2 June 2007” for Industry Canada and part 15 of the FCC Rules: Operation is subject to the following two conditions: (1) this device may not cause interfer- ence, and (2) this device must accept any interference, including interference that may cause undesired opera-... -
Page 17: Fm Transmitter, Model Pfm T36
SYSTEM SPECIFICATIONS FM TRANSMITTER, MODEL PFM T36 Dimensions: 4.1” L x 2.8” W x 1.1” H (104 mm x 71 mm x 28 mm) Weight: 2.6 oz (74 g), no batteries Housing Material: Shatter-resistant PC/ABS plastic Battery Type: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001), 70 mA nominal current drain, 30 hours approx. - Page 18 H e l p i n g P e o p l e H e a r Man 146B 10321 West 70th St., Eden Prairie, MN 55344 U.S.A. 800.843.3544 • 952.943.2252 • Fax 952.943.2174 williamssound.com...
