GE Monogram ZEW145 Installation Instructions Manual page 4

ZEW166
Product
Downdraft Grill Cooktop Component
Dimensions
(240 volt)
Parts supplied:
• Grease collection jar
• 48" flexible conduit
• One set clamping screws
• One downdraft joiner strip
• JXBA55 blower motor assembly
NOTE: The downdraft plenum is shipped with the discharge
outlet on the left side. It can be changed to the right side.
5-3/8"
ZGW124
Gas Cooktop Component,
with right hand controls
ZGW125
Gas Cooktop Component,
with left hand controls
Parts supplied with each:
• 1/2" inlet pipe
• Pressure regulator
• One joiner strip
• Two sets clamping screws
• One chassis support brace
NOTE: Gas components are designed for natural
gas operations and cannot be converted to LP
operation.
If installation includes a drawer beneath gas
cooktop, make allowance for gas inlet pipe.
Gas inlet extends 1-1/4" from bottom.
4
6"
10"
90°
Elbow
Blower
Motor
Assembly
17-1/2"

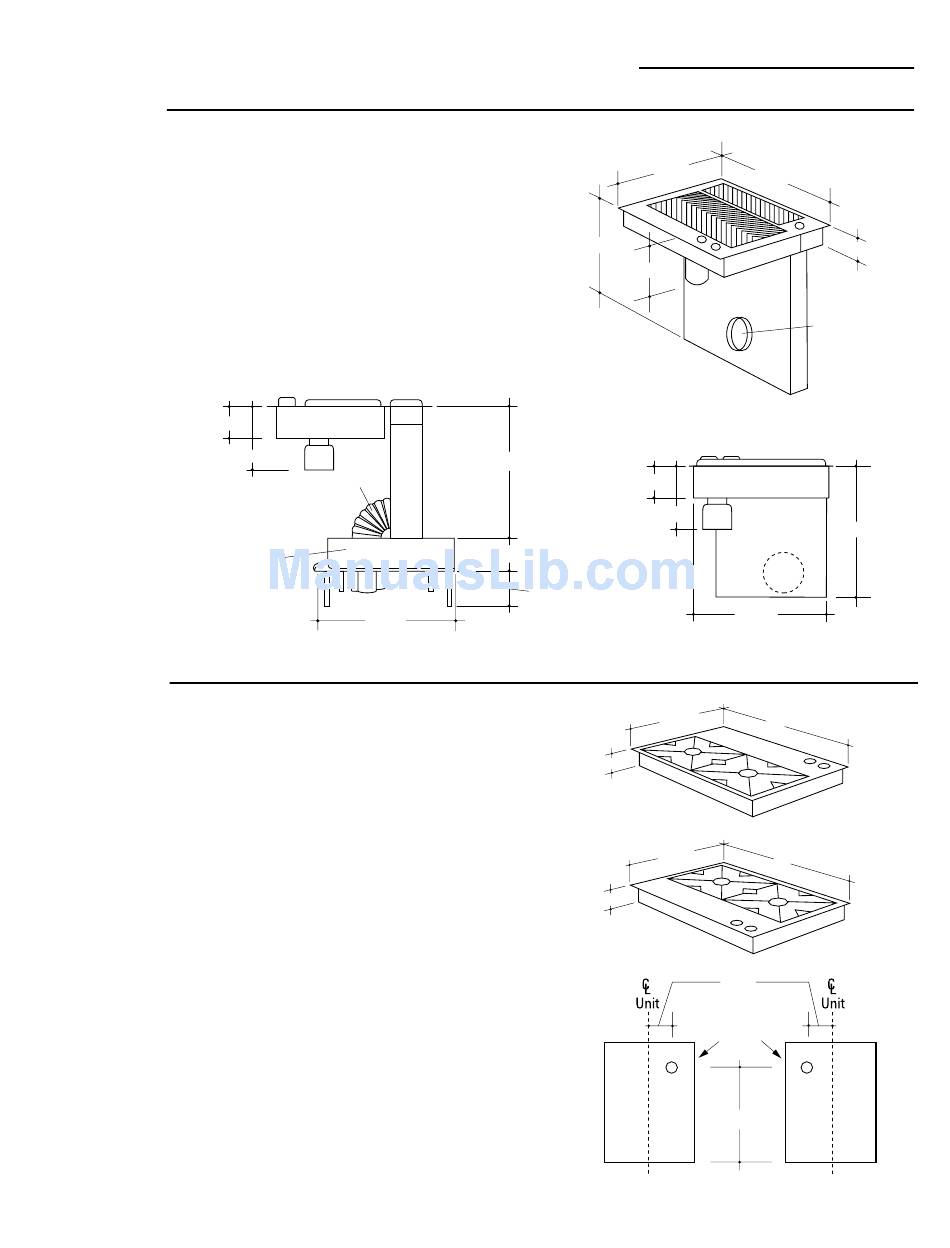

Front View, Downdraft Grill With Blower Motor Assembly
Design Information
Component Cooktop System
21-1/2"
14-1/2"
10"
14-1/2"
5-3/8
3-1/4"
Adjustable
5" to 8"
15-1/2"
3-1/4"
15-1/2"
3-1/4"
Gas
Inlet
Pipe
ZGW124
Right Hand
Controls
21-5/16"
5-3/8"
Shipped With
Discharge On
Left Side
10"
14-1/2"
16-3/4"
Left Side View, Downdraft Grill
21"
21"
4-7/16"
Top View
Countertop
Cutout
Gas
Inlet
Pipe
17-1/8"
ZGW125
Left Hand
Controls
