GE Monogram ZEW145 Installation Instructions Manual page 15

Joining
Multiple
Cooktops
(Continued)

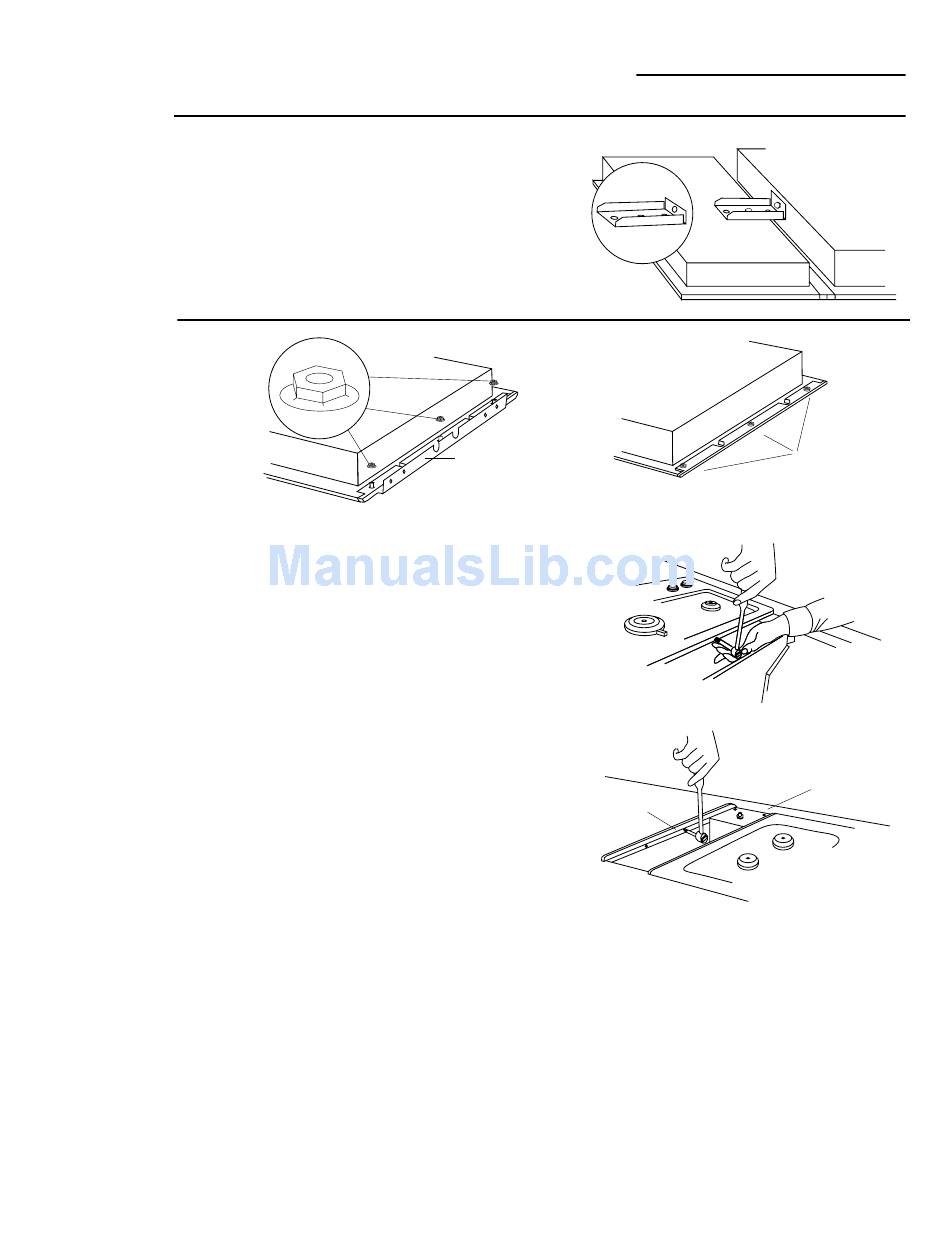

Attach chassis support brace to different
height cooktops
• When attaching grill to radiant or gas, place
the support brace as shown.
• Remove one screw from the center of each
cooktop chassis.
• Position brace and tighten screws.
• Repeat these steps for three cooktops.
Joining Cooktop to Downdraft Vent
• Remove all grates, knobs, burner caps and drip
pans.
• Lay cooktop upside down.
• Remove endcap on side of cooktop to be joined
by removing three nuts with a 5/16" nutdriver.
Important: Pre-tap holes in downdraft joiner and
endcaps by driving supplied screws through
holes and then backing out before installation.
This will make the joining process easier.
• Replace endcap with downdraft joiner strip
using the same three nuts.
– If the vent is to be installed at the end of
the countertop opening, attach downdraft
endcap to that side.
• Place the downdraft vent and cooktop into the
cutout.
• Remove two screws from the front of cooktop
chassis. Drive the two screws into holes below
the downdraft vent flange as shown. Use a
phillips screwdriver bit socket.
• If downdraft vent is installed at the end of the
cutout, secure the downdraft endcap to the
countertop by driving two phillips head screws
as shown.
• To finalize installation, proceed to "Securing
cooktop(s) to countertop.
• If additional cooktop(s) are to be installed,
proceed to "Joining additional cooktop to
downdraft vent or downdraft grill."
Installation
Component Cooktop System
Downdraft
Joiner Strip
Downdraft
Endcap
Grill
Gas or
Halogen
Remove
These Nuts
Front of Countertop
15
