HTP PH100-55 Installation Manual

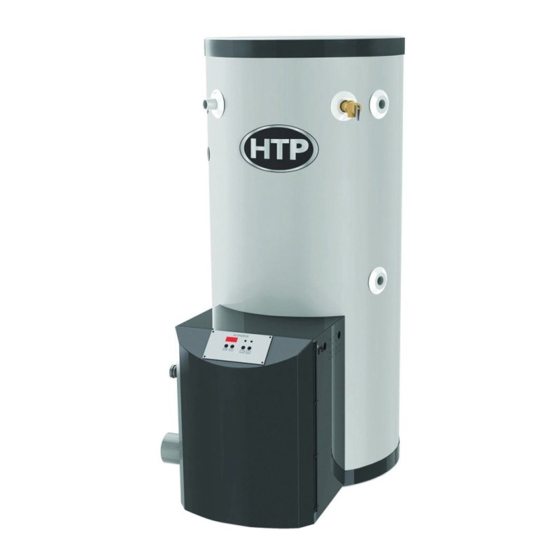

Phoenix gas-fired water heater
Hide thumbs Also See for PH100-55:
Table of Contents

Advertisement

Quick Links

This manual must be used by a qualified installer/service technician. Read all instructions in this manual
before installing. Perform steps in the given order. Failure to comply could result in substantial property
damage, severe personal injury, or death.
NOTICE: HTP reserves the right to make product changes or updates without notice and will not be held
liable for typographical errors in literature.
120 Braley Rd. P.O. Box 429
Phoenix Gas-Fired
PH100-119 / 130-119 / 160-119 / 199-119
East Freetown, MA 02717-0429
Water Heater
MAINTENANCE
Phoenix Water Heater Models*
PH100-55 / 130-55 / 160-55 / 199-55
PH100-80 / 130-80 / 160-80 / 199-80
Phoenix Sanitizer Booster Models*
130-55SA / 199-55SA
*A suffix of "LP" denotes propane gas
*A suffix of "S" denotes solar model
INSTALLATION
START-UP
PARTS
www.htproducts.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH100-55 and is the answer not in the manual?

Questions and answers

Luis R Santos
May 28, 2025

Where can I get the ignition replacement kit

0

Related Manuals for HTP PH100-55

Summary of Contents for HTP PH100-55

  • Page 1 Perform steps in the given order. Failure to comply could result in substantial property damage, severe personal injury, or death. NOTICE: HTP reserves the right to make product changes or updates without notice and will not be held liable for typographical errors in literature.
  • Page 2 IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE. DO NOT STORE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
  • Page 3 The following defined terms are used throughout this manual to bring attention to the presence of hazards of various risk levels, or to important product information. DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 4: For The Installer

    FOR THE INSTALLER This manual must only be used by a qualified heating installer/service technician. Read all instructions in this manual before installing. Perform steps in the order given. Failure to comply could result in severe personal injury, death or substantial property damage. This appliance must be installed by qualified and licensed personnel.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS PART 1 – GENERAL SAFETY INFORMATION ..................7 A. PRECAUTIONS ............................ 7 B. IMPROPER COMBUSTION........................7 C. GAS ............................... 7 D. WHEN SERVICING THE HEATER ...................... 7 E. HEATER WATER ..........................7 PART 2 – HOW THE HEATER OPERATES ....................8 PART 3 –...
  • Page 6 C. FAILURE TO OPERATE........................47 PART 11 – TROUBLESHOOTING ......................47 A. ERROR CODE ............................ 47 B. HEATER ERROR ..........................47 C. LOCKOUT ............................48 PART 12: MAINTENANCE ......................... 54 MAINTENANCE NOTES ..........................57 HTP CUSTOMER INSTALLATION RECORD FORM ................ 58...

  • Page 7: Part 1 - General Safety Information

    PART 1 – GENERAL SAFETY INFORMATION A. PRECAUTIONS This appliance is for indoor installations only. Clearance to combustible materials: 0” top, bottom, sides and back. Unit must have room for service: 24” front and 12” sides are minimum recommended service clearances.

  • Page 8: Part 2 - How The Heater Operates

    Condensate neutralizers are made up of lime crystals, marble or phosphate chips. Neutralizers can be installed in the field by the installer and purchased from HTP (p/n 7450P-212). It is also very important not to expose the condensate line to freezing temperatures or any type of blockage.

  • Page 9: Part 3 - Prepare Water Heater Location

    allow condensate to drain properly. Support of the condensation line may be necessary to avoid blockage of the condensate flow. Spark Ignition The burner flame is ignited by applying high voltage to the system spark electrode. This causes a spark from electrode to ground.

  • Page 10: Clearances For Service Access

    C. CLEARANCES FOR SERVICE ACCESS Figure 1 If you do not provide the minimum clearances shown, it might not be possible to service the heater without removing it from the space. The space must be provided with combustion/ventilation air openings correctly sized for all other appliances located in the same space as the heater.

  • Page 11: Direct Vent Installation Of Exhaust And Intake

    Vents must be properly supported. Heater intake and exhaust connections are not designed to carry heavy weight. Vent support brackets must be within 1’ of the heater and the balance at 4’ intervals. Heater must be readily accessible for visual inspection for the first 3’ from the heater. 1.

  • Page 12: Prevent Combustion Air Contamination

    Do not attempt to vent this appliance by any means other than those described in this manual. Doing so will void the warranty, and may result in severe personal injury or death. Failure to provide an adequate supply of fresh combustion air can cause poisonous flue gases to enter living space, which could result in severe personal injury or death.

  • Page 13: Water Chemistry

    When removing an existing heater, follow the steps below. 1. Seal any unused openings in the common venting system. 2. Visually inspect the venting system for proper size and horizontal pitch to determine if there is blockage, leakage, corrosion or other deficiencies that could cause an unsafe condition.

  • Page 14: Part 4 - Prepare The Heater

    number. The minerals in the water precipitate out when the water is heated and cause accelerated lime and scale accumulation on a heat transfer surface. If the hardness of the water exceeds the maximum level of 25 grains per gallon, water should be softened to a hardness level no lower than 5 grains per gallon.

  • Page 15: Part 5 - Heater Piping

    PART 5 – HEATER PIPING Never use dielectric unions or galvanized steel fittings when connecting to a stainless steel storage tank or heater. Use only copper or brass fittings. Teflon thread sealant must be used on all connections. A. GENERAL PIPING INFORMATION Use two wrenches when tightening water piping at heater.

  • Page 16: Temperature And Pressure Relief Valve

    C. TEMPERATURE AND PRESSURE RELIEF VALVE To avoid water damage or scalding due to relief valve operation: • Discharge line must be connected to relief valve outlet and run to a safe place of disposal. Terminate the discharge line in a manner that will prevent possibility of severe burns or property damage should the relief valve discharge.

  • Page 17: Water Piping

    Undersized expansion tanks cause system water to be lost from the relief valve, causing make-up water to be added. Eventual heater failure can result due to excessive make-up water addition. SUCH FAILURE IS NOT COVERED BY WARRANTY. 2. The expansion tank must be located as shown in the Heater Piping Details, or following recognized design methods.

  • Page 18: Piping Diagrams

    H. PIPING DIAGRAMS Figure 4 – LP-179-L - NOTE: This drawing is meant to demonstrate system piping only. The installer is responsible for all equipment and detailing required by local codes. In Massachusetts, you must install a vacuum relief valve per 248 CMR. With air handlers, outdoor reset is available with an outdoor sensor. See Part 9, Section D.
  • Page 19 PHOENIX WITH AIR HANDLER ON SIDE Figure 5 – LP-179-M - NOTE: This drawing is meant to demonstrate system piping only. The installer is responsible for all equipment and detailing required by local codes. In Massachusetts, you must install a vacuum relief valve per 248 CMR.
  • Page 20 Figure 6 – LP-179-N - NOTE: This drawing is meant to demonstrate system piping only. The installer is responsible for all equipment and detailing required by local codes. In Massachusetts, you must install a vacuum relief valve per 248 CMR.
  • Page 21 Figure 7 – LP-179-U - NOTE: This drawing is meant to demonstrate system piping only. The installer is responsible for all equipment and detailing required by local codes. In Massachusetts, you must install a vacuum relief valve per 248 CMR.
  • Page 22 Figure 8 – LP-179-O - NOTE: This drawing is meant to demonstrate system piping only. The installer is responsible for all equipment and detailing required by local codes. In Massachusetts, you must install a vacuum relief valve per 248 CMR.
  • Page 23 Figure 9 – LP-179-Z - NOTE: This drawing is meant to demonstrate system piping only. The installer is responsible for all equipment and detailing required by local codes. In Massachusetts, you must install a vacuum relief valve per 248 CMR. NOTE: For proper operation, it is important to pipe recirculation lines with thermostatic mixing valve as shown above.
  • Page 24 The standard Phoenix Water Heater does not meet the required temperature settings for sanitizer booster applications. Use only the Phoenix Sanitizer Booster that delivers temperatures of 184 F. Inlet water to the booster must be supplied at 140 PHOENIX SANITIZER BOOSTER INSTALLATION p/n PH130-55SA / PH199-55SA Figure 10 LP-179-SA - NOTE: In Massachusetts, you must install a vacuum relief valve per 248 CMR.

  • Page 25: Part 6 - Electrical Connections

    The heater has the capability of an outdoor reset. Connecting an outdoor sensor allows the heater to operate at optimum efficiency. HTP offers an outdoor sensor, p/n 7250P-319 The outdoor sensor must be a 12K NTC sensor. Use a minimum 22 AWG wire for runs of 100 feet or less and minimum 18 AWG wire for runs up to 150 feet.

  • Page 26: Gas Piping

    The gas supply shall have a maximum inlet pressure of less than 14" water column (350 mm), ½ pound pressure (3.5 kPa), and a minimum of 3.5" water column. The entire piping system, gas meter and regulator must be sized properly to prevent pressure drop greater than 0.5" WC as stated in the National Fuel Gas Code.

  • Page 27: Gas Valve

    C. GAS VALVE Do not do a gas conversion on this water heater without an officially approved conversion kit and instructions supplied by HTP. Figure 13 – Gas Valve LP-179-P...

  • Page 28: Part 8 - Venting, Combustion Air And Condensate Removal

    PART 8 – VENTING, COMBUSTION AIR AND CONDENSATE REMOVAL The heater must be vented as detailed in this Venting Section. Ensure exhaust and intake piping complies with these instructions regarding vent system. Inspect finished combustion air intake and exhaust piping thoroughly to ensure all joints are well secured, airtight, and comply with all applicable code requirements, as well as with the instructions provided in this manual.

  • Page 29: Exhaust And Intake Air Vent Pipe Location

    C. EXHAUST AND INTAKE AIR VENT PIPE LOCATION 1. DETERMINE EXHAUST VENT LOCATION a. The vent piping for this water heater is approved for zero clearance to combustible construction. b. See illustration within this section of clearances for location of exit terminals of direct-vent venting systems.

  • Page 30: Exhaust And Intake Air Vent Sizing

    Figure 14 – Venting D. EXHAUST AND INTAKE AIR VENT SIZING 1. The exhaust and intake vent size is 2" for the PH100 and PH130 and 3" for the PH160 and PH199. 2. The total combined equivalent length of exhaust vent and intake air pipe should not exceed 85 feet.

  • Page 31: Longer Vent Runs

    a. The equivalent length of elbows, tees, and other fittings are listed in the Friction Loss Table below: FRICTION LOSS EQUIVALENT IN PIPING AND FITTINGS EQUIVALENT FEET FITTINGS OR PIPING 2” 3” 4” 90 DEGREE ELBOW* 5’ 5’ 3’ 45 DEGREE ELBOW 3’...

  • Page 32: Exhaust Vent And Intake Air Pipe Installation

    7. A screened straight coupling is provided with the heater for use as an outside exhaust termination. 8. A screened inlet air tee is provided with the heater to be used as an outside intake termination. 9. The following information on Table 5-8 lists optional intake air/exhaust vent terminations available from HTP. DESCRIPTION STOCK CODE 2”...

  • Page 33: Venting Drawings

    G. VENTING DRAWINGS 1. DIRECT VENT INSTALLATION OF EXHAUST AND INTAKE If installing a direct vent option, combustion air must be drawn from the outdoors directly into the appliance intake, and exhaust must terminate outside. There are three basic direct vent options detailed in this manual: 1.
  • Page 34 Figure 16 – LP-179-D NOTE: This drawing is meant to demonstrate system venting only. The installer is responsible for all equipment and detailing required by local codes.
  • Page 35 Figure 17 – LP-179-E NOTE: This drawing is meant to demonstrate system venting only. The installer is responsible for all equipment and detailing required by local codes.
  • Page 36 Figure 18 – LP-179-F NOTE: This drawing is meant to demonstrate system venting only. The installer is responsible for all equipment and detailing required by local codes.
  • Page 37 Figure 19 – LP-179-G NOTE: This drawing is meant to demonstrate system venting only. The installer is responsible for all equipment and detailing required by local codes.

  • Page 38: Indoor Combustion Air Installation In Confined Or Unconfined Space

    Figure 20 – LP-179-AA NOTE: This drawing is meant to demonstrate system venting only. The installer is responsible for all equipment and detailing required by local codes. 2. INDOOR COMBUSTION AIR INSTALLATION IN CONFINED OR UNCONFINED SPACE This heater requires fresh, uncontaminated air for safe operation and must be installed in a mechanical room where there is adequate combustion and ventilating air.
  • Page 39 Combustion air from the indoor space can be used if the space has adequate area or when air is provided through a duct or louver to supply sufficient combustion air based on the appliance input. Never obstruct the supply of combustion air to the appliance.
  • Page 40 Figure 22...

  • Page 41: Condensate Removal System

    If the heater condensate outlet is lower than the drain, you must use a condensate removal pump (kit p/n 554200 available from HTP). If required by local authorities, a condensate filter of lime crystals, marble, or phosphate chips will neutralize slightly acidic condensate. This can be installed in the field and purchased from HTP (p/n 7450P-212).

  • Page 42: Part 9 - Start-Up Procedure

    Plastic pipe must be the only material used for the condensate line. Steel, brass, copper or other materials will be subject to corrosion or deterioration. A second vent may be necessary to prevent a condensate line vacuum lock if a long horizontal run is used. An increase in condensate line diameter may be necessary to allow condensate to drain properly.

  • Page 43: Status Menu

    Note: Due to the highly advanced control on this appliance, which compensates for varying inlet water temperature, the actual differential temperature may vary slightly from your setting. Press {S3} again to display the factory default temperature measurement in Fahrenheit. Change the default to Celsius by pressing {S1}.
  • Page 44 An ASSE 1017 thermostatic mixing valve MUST be installed when using outdoor reset. Failure to do so could result in substantial property damage, serious injury, or death. 1. Connect the outdoor sensor to the terminals marked “outdoor”. 2. Press and hold {S3}. You will see a flashing and a temperature value.

  • Page 45: Test Mode

    E. TEST MODE This function is intended to simplify the gas valve adjustment if needed. Listed below are the recom- mended limits on each heater and the combustion settings. Automatic modulation does not take place when the controller is in Test mode, only temperature limitation based on the heater set point. The user will be allowed to increase or decrease the fan speed by pressing in either the {S1} {S2}...

  • Page 46: Internal Wiring

    G. INTERNAL WIRING Figure 25...

  • Page 47: Part 10 - Shutdown

    PART 10 – SHUTDOWN A. SHUTDOWN PROCEDURE If the burner is not operating, disconnect the electrical supply. If the burner is operating, lower the set point value to 70 F and wait for the burner to shut off. Continue to wait for the combustion blower to stop, so all latent combustion gases are purged from the system.

  • Page 48: Lockout

    C. LOCKOUT 1. When a fault condition occurs the controller will illuminate the red “fault” indication light and display a fault code in the format (Example: |F00|) on the display module. 2. Note the fault code and refer to Table 12 for an explanation of the fault code along with several suggestions for corrective actions.
  • Page 49 1. Check line voltage. Must be between 1753 100 – 128 volts. 1481 2. If available, connect a PC and, using HTP service software, check the 24v 1256 supply display in the lower left corner of 1070 the screen. The number displayed here must be greater than 128 and should be greater than 250.
  • Page 50 If the display flashes a code other than F01, follow the troubleshooting guide for that code. 7. If the flue temperature increases to over 190 F, consult HTP for further assistance. Interrupted or shorted upper 1. Check the electrical connection to the appropriate temperature sensor.
  • Page 51 Figure 26...
  • Page 52 Figure 27 – LP-179-J...
  • Page 53 Figure 28 – LP-179-H...

  • Page 54: Part 12: Maintenance

    PART 12: MAINTENANCE Periodic maintenance should be performed once a year by a qualified service technician to assure that all the equipment is operating safely and efficiently. The owner should make necessary arrangements with a qualified heating contractor for periodic maintenance of the heater. Installer must also inform the owner that the lack of proper care and maintenance of the heater may result in a hazardous condition.

  • Page 57: Maintenance Notes

    MAINTENANCE NOTES...

  • Page 58: Htp Customer Installation Record Form

    Customer: Please only sign after the installer has reviewed the installation, safety, proper operation and maintenance of the system. In the case that the system has any problems, please call the installer. If you are unable to make contact, please contact your HTP Sales Representative. Distributor/Dealer: Please insert contact details.
