Engine Alignment

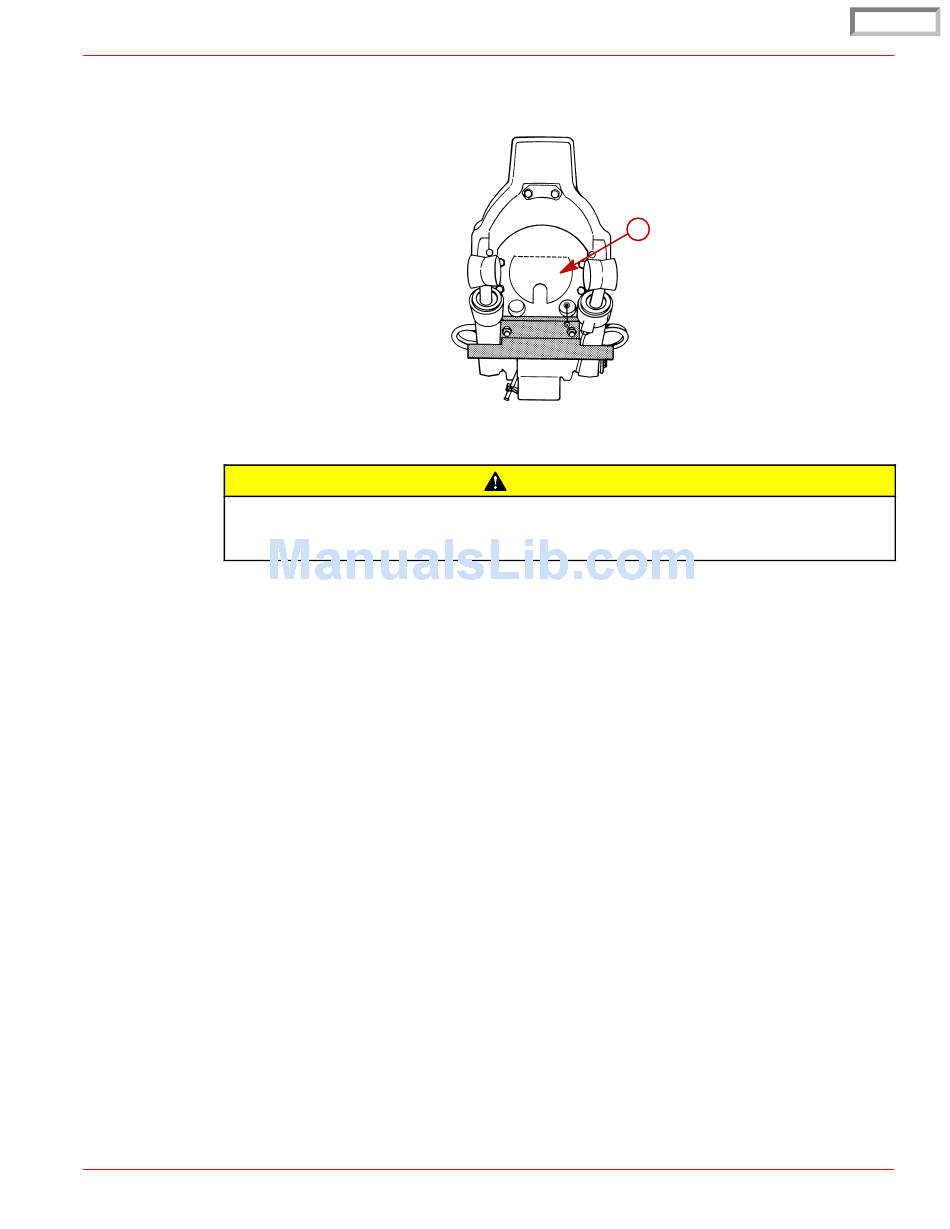

1. Ensure that the dust cover is removed or folded back out of the way.
a -
DO NOT use an alignment tool from another manufacturer. Alignment tools other
than Quicksilver Alignment Tool may cause improper alignment and damage to
gimbal bearing and/or engine coupler.
2. Attempt to insert the solid end of the alignment tool through the gimbal bearing and into
the engine coupler splines.
3. If the tool does not fit, remove it and carefully raise or lower the front end of the engine
using the center alignment eye and attempt to insert the alignment tool.
