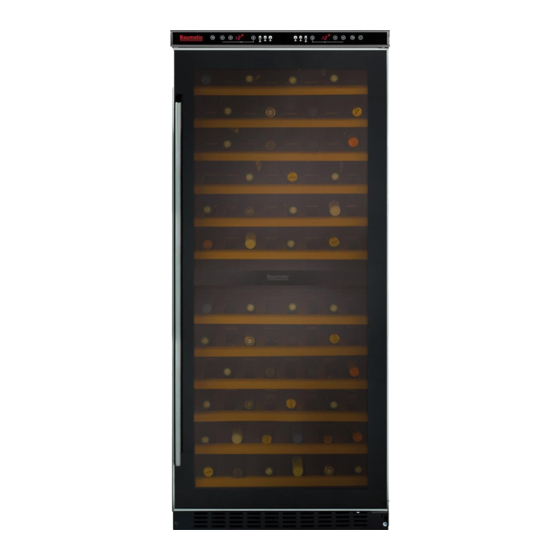

- Page 1 BWC614SS 140 cm 92 Bottle dual temperature wine cooler...
- Page 2 User manual for your Baumatic BWC614SS 140 cm 92 Bottle dual temperature wine cooler NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference, for you or any person not familiar with the operation of the appliance.
-
Page 3: Table Of Contents
7-10 Dimensions Description of the appliance Control panel Description of the product features 9-10 Using your Baumatic wine cooler 10-16 Before switching on During first use Switching on the appliance and setting the temperature 11-12 Changing between Fahrenheit and Celsius... -
Page 4: Environmental Note
This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the... -
Page 5: Important Safety Information
Important safety information Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line. - Page 6 Child safety o Packaging material should be kept away from children. o Children should not be allowed to touch the controls or play with the appliance. General safety o Do not pull on the power supply cable to remove the plug from your mains supply socket.
-
Page 7: Specifications Of Your Wine Cooler
Specifications of your wine cooler o Gross capacity: 275 litres o Net capacity: 265 litres o Bottle capacity: 92 x 0.75 litre Bordeaux style wine bottles o Electronic push button control operation o LED display o Celsius and Fahrenheit switch o 12 Adjustable wooden shelves with telescopic runners o Adjustable temperature o Digital thermometer... -
Page 8: Description Of The Appliance
Description of the appliance 1) Digital control panel 2) Stainless steel door frame 3) Stainless steel handle 4) Middle zone divider 5) Adjustable wooden shelves 6) Adjustable feet... -
Page 9: Control Panel
Control panel The control panel is located at the top of the appliance. 1) Power button 2) Celsius / Fahrenheit selector button 3) Temperature minus button 4) Temperature plus button 5) LED display 6) Light control button 7) Amber LED indicator for sparkling wine 8) Green LED indicator for white wine 9) Red LED indicator for red wine This icon indicates that the control panel is for the upper cooling... -
Page 10: Using Your Baumatic Wine Cooler
For easy access to the bottles stored, pull the shelves out approximately 1/3. The shelves are designed with an emergency stop to prevent them being removed too far when loaded. Using your Baumatic wine cooler Before switching on o Make sure that it has been installed by a suitably qualified... -
Page 11: During First Use
o There can be an odour when you first switch on the appliance. It will lessen as the appliance starts to cool. During first use IMPORTANT: When you use the wine cooler for the first time or restart the appliance after it has been turned off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED display. -
Page 12: Changing Between Fahrenheit And Celsius
decrease by the same amount if you press the minus (3) button once. o When you set a new temperature for either of the zones, the display will show this temperature for 5 minutes before showing the actual zone temperature. During this time, the zone temperature will adjust accordingly. -
Page 13: Loading The Wine Cooler
Loading the wine cooler o IMPORTANT: Your appliance is ideally suited to store 0.75 litre Bordeaux style wine bottles. Whilst it can store larger bottles, you must make sure that they do not prevent the door from shutting properly. o Always check that you can close the door without it fouling on a wine bottle, before shutting it. -
Page 14: Storing Your Wines
Storing your wines The chart below indicates the ideal storage temperatures for different types of wine:- Type of wine Temperature Temperature (Celsius) (Fahrenheit) Red wine (*) 15.5 – 18.5°C 59.9 – 65.3°F White wine (**) 10 - 15°C 50 – 59°F Sparkling 7.2 –... -
Page 15: Wine Storage Problems
o Special stoppers that keep wine sparking and Champagne bubbling for one or two days after opening, can be bought at most good wine shops. o When stored correctly, white wines can keep well for up to two years. Full bodied reds will age well for ten years and dessert wines will age well for up to twenty years. -
Page 16: Cleaning And Maintenance
Slight effervescence in still wine- this isn’t really a problem with the way the wine has been stored, but as a result of incomplete malolactic fermentation before the wine was bottled. A good way to get rid of the effervescence is to let the wine breathe. Alternatively you can use a bottle vacuum device, after about five minutes the effervescence will vanish. -
Page 17: Defrosting
o After washing the appliance, wipe over the area that you have cleaned with a damp cloth and then dry it thoroughly. o When cleaning is complete, dry your hands and then reconnect the plug to your mains supply. Defrosting o Defrosting occurs automatically inside of the wine cooler during operation. -
Page 18: Moving Your Wine Cooler
Moving your wine cooler If you need to move your wine cooler to another location you should follow the steps outlined below. o Remove all items from the wine cooler. o Securely tape down all loose items such as the shelves inside the appliance. -
Page 19: Installation
Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found on the front left edge of the inside of the wine cooler. -
Page 20: Positioning
o When the connection is completed, no stray strands or cut wire should be present. The cord clamp must be secured over the outer sheath. Positioning o It is advisable that your appliance is only installed in a location where the ambient temperature of the room, corresponds with the climate classification that is stated on the rating plate of your appliance. -
Page 21: Built-In Installation
Built-in installation o Your wine cooler can be used as a freestanding or a built in unit. If you are going to use it as a built in unit, then the dimensions shown in the diagram above will need to be followed. o In particular the depth dimension must be observed. -
Page 22: Reversing The Door Of Your Wine Cooler
o Remove the door gasket on the side you wish to install the handle. You can see two designated holes for handle installation. o Install the handle tightly as shown in the diagram above with the two screws, lock washers and flat washers provided. o Replace the door gasket. - Page 23 o Remove the right lower door hinge. Take the left lower door hinge from the plastic bag that contained this manual then install it at the designated position on the left side. Install the door shaft assembly accordingly. o Remove the door axle from the right upper hinge then install and tighten it in the left upper hinge.
- Page 24 IMPORTANT: Check that the door opens and shuts correctly, without fouling, after you have completed the door reversal process. After the door has been reversed, you should check the door seal of the wine cooler. The seal should not be creased or crushed; otherwise there will be a gap between it and the inside of the door.
-
Page 25: Troubleshooting
Troubleshooting IMPORTANT: If your wine cooler appears not to be operating properly, before contacting the Customer Care Department, please refer to the checklist below. PROBLEM POSSIBLE CAUSE Appliance does not operate Not plugged in. The circuit breaker has tripped or the fuse has blown. - Page 26 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
-
Page 27: Contact Details
Czech Republic Baumatic CR spol s.r.o. Průmyslová zóna Sever 696 United Kingdom 460 11 Liberec 11 Baumatic Ltd., Czech Republic Baumatic Buildings, 6 Bennet Road, +420 483 577 200 Reading, Berkshire RG2 0QX www.baumatic.cz United Kingdom Slovakia Sales Telephone Baumatic Slovakia, s.r.o.
