User manual for your Baumatic
5
1
B
o
t t
e l
T
e

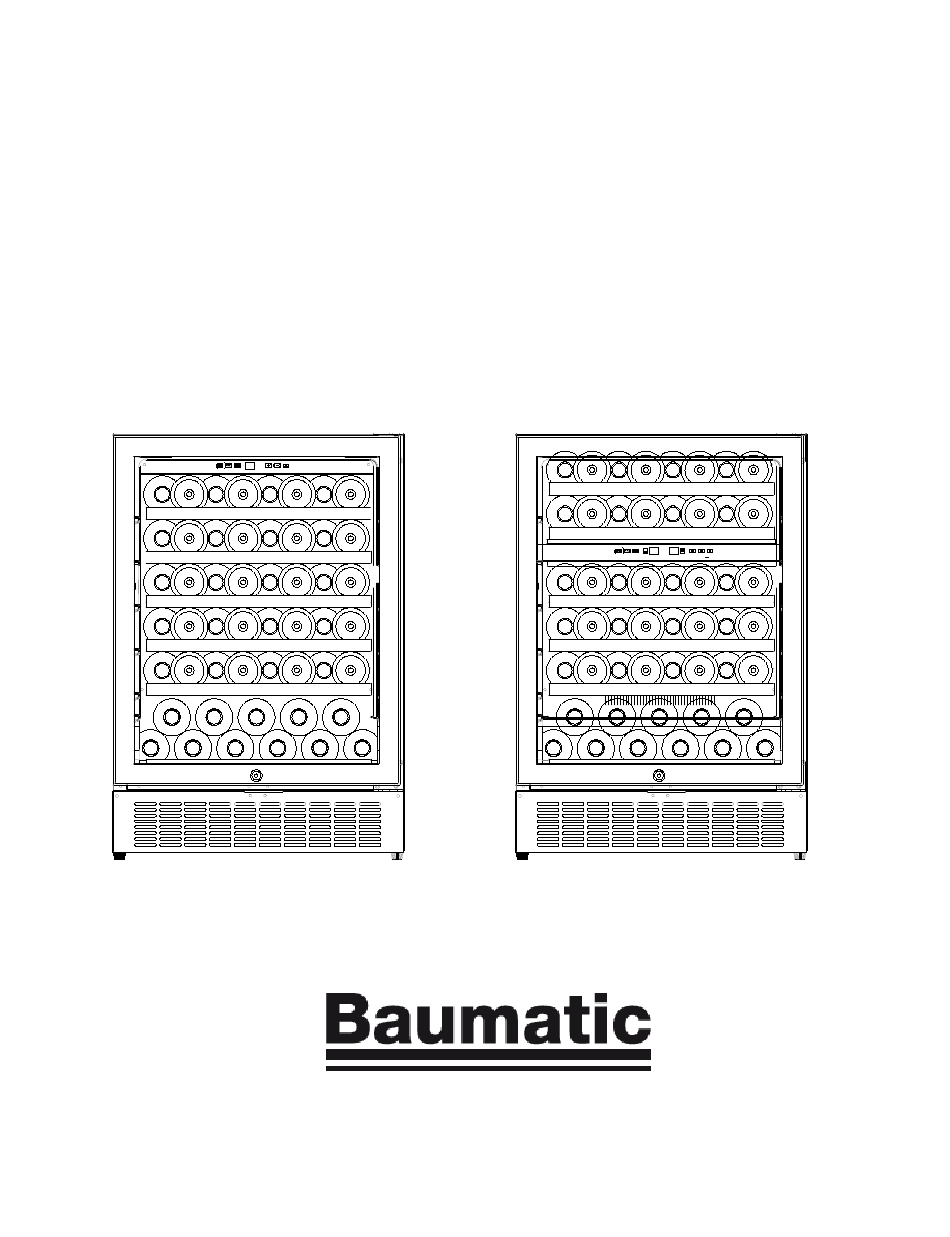

BWCDZ150SS/BWCDZ150GL
DUAL ZONE WINE CABINET
BWCSZ150SS/BWCSZ150GL
SINGLE ZONE WINE CABINET
°
C
°F
NOTE: This user manual contains important information including safety & installation
points which will enable you to get the most out of your Baumatic appliance. Please keep it in
a safe place so that it is readily available for future reference.
m
p
e
a r
u t
e r
C
o
t n
o r
e l l
d
W
°
C
°F
n i
e
C
a
b
n i
t e
Advertisement
Table of Contents
Related Manuals for Baumatic BWCDZ150SS
Summary of Contents for Baumatic BWCDZ150SS
- Page 1 NOTE: This user manual contains important information including safety & installation points which will enable you to get the most out of your Baumatic appliance. Please keep it in a safe place so that it is readily available for future reference.
-
Page 2: Table Of Contents
Thank you for purchasing a Baumatic built in wine cabinet. Your appliance is exceptionally easy to use and extremely efficient. Before being packaged and leaving the factory, the appliance was thoroughly checked with regard to safety and functionality. Before using the appliance, please carefully read these Operating Instructions. -
Page 3: Environmental Note
This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the... -
Page 4: Important Safety Information
Important safety information Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact Baumatic Service Care. - Page 5 Do not place electrical devices inside of the appliance, such as mixers or ice cream makers. Service You should not attempt to repair the appliance yourself, as this could cause injury or a more serious malfunction. If you require a service call then please contact Baumatic Service Care.
-
Page 6: Structure Drawing
Structure drawing The following pictures only show the structure of the appliance as well as the installation drawing. The dimension and shelf quantity may differ among the models of the same series. (Built under a kitchen table top) BUILT-UNDER SERIES Outside Cabinet Door Dual Zones... -
Page 7: Installation
Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found on the front left edge of the inside of the wine cabinet. - Page 8 Positioning o It is advisable that your appliance is only installed in a location where the ambient temperature of the room, corresponds with the climate classification that is stated on the rating plate of your appliance. Your appliance may not function correctly if the ambient temperature falls outside of the following ranges.
- Page 9 595mm Width Installation Drawing (mm) o Your wine cabinet can be used as a built in unit. The clearances shown in the above drawing should be followed for both types of installation. o In particular the depth dimension must be observed.
-
Page 10: Accessory Installation Before Operating
UNPACKING AND CLEANING THE WINE COOLER • Make sure that it has been installed by a suitably qualified person, as per the information contained in Baumatic’s installation instructions. • Let the appliance stand upright for approximately 2 hours before connecting it to the mains supply. This will allow any refrigerant gasses that may have been disturbed during the transportation process to settle. -
Page 11: Using Your Baumatic Wine Cabinet
Using your Baumatic wine cabinet WORKING CLIMATE ● The appliance is designed for operating from SN to T climate (see below climate class chart). It is recommended to maintain the ambient around 22-25°C which helps the appliance working with low power consumption. - Page 12 During first use IMPORTANT: When you use the wine cabinet for the first time or restart the appliance after it has been turned off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED display.
- Page 13 SETTING THE TEMPERATURE DUAL ZONE MODELS - BWCDZ150SS & BWCDZ150GL The Dual Zone model is made of two independently controlled compartments to store different wines at different temperatures. • Use the zone selection button to choose which zone you want to set the temperature for. Once pressed, the relevant LED display will flash to show which you can set the temperature for that zone.
- Page 14 ZONE MODELS - The Single Zone model is made of • • • Note: When the temperature control is out of control, the LED display will show a "HH" or "LL" and the appliance will emit a continuous buzz sound. If this happens, the appliance is designed to keep compressor and fans running periodically to protect the stored wines.
- Page 15 STORING YOUR WINES The chart below indicates the ideal storage temperatures for different types of wine:- Temperature Temperature Type of wine (Celsius) (Fahrenheit) Red wine (*) 15 – 18°C 59 – 65°F 48 – 57°F White wine (**) 9 - 14°C Sparkling 40 –...
-
Page 16: Care And Maintenance
CARE & MAINTENANCE WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM YOUR MAINS SUPPLY BEFORE ATTEMPTING TO CLEAN IT. o Do not clean the appliance by pouring water onto it or spraying water over it. o The interior of the wine cabinet should be cleaned periodically, using about 2 tablespoons of baking soda to a quart (approx. - Page 17 VACATION TIME Short holidays: Leave the wine cabinet in operation for holidays of less than 3 weeks. Long absences: If the appliance will not be used for several months, remove all items, turn off the appliance and unplug the electricity cable.
-
Page 18: Troubleshooting
Troubleshooting IMPORTANT: If your wine cabinet appears not to be operating properly, before contacting Baumatic Service Care, please refer to the checklist below. POSSIBLE CAUSE / MEASURE PROBLEM Wine Cabinet does not operate Not plugged in. Wine Cabinet is turned off. - Page 19 - like plinths, or any installation other than the one specified by Baumatic has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
-
Page 20: Warranty Registration Card
WARRANTY REGISTRATION CARD Congratulations on your new appliance purchase! To d) damage to surface coatings caused by cleaning help care for your investment, be sure to register your or maintenance using products not recommended appliance online. Registration will help you if you need to by the owner’s handbook;...
