Baumatic BWC694 User Manual

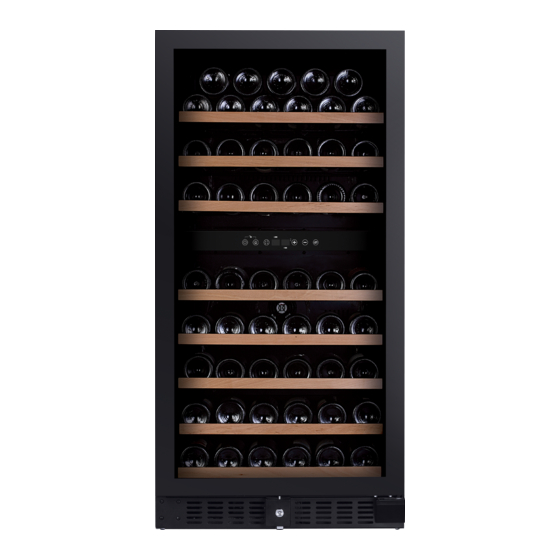

Compressor wine cooler: free standing
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER
MANUAL
COMPRESSOR WINE COOLER: FREE STANDING
BWC694
BWC6166
/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BWC694 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumatic BWC694

Summary of Contents for Baumatic BWC694

  • Page 1 USER MANUAL COMPRESSOR WINE COOLER: FREE STANDING BWC694 BWC6166...

  • Page 2: Table Of Contents

    CONTENTS IMPORTANT SAFETY INFORMATION ���������������������������������������������������1 DESCRIPTION OF APPLIANCE AND INSTALLATION ����������������������������3 270L (BWC694) ............................3 428L (BWC6166) ............................4 ACCESSORY INSTALLATION BEFORE OPERATING�������������������������������5 UNPACKING AND CLEANING THE WINE COOLER ................5 LOCK & UNLOCK THE DOOR (FOR OPTION) ..................5 OPERATING THE WINE COOLER ������������������������������������������������������������5...

  • Page 3: Important Safety Information

    INSTRUCTION MANUAL ● Please remove all packaging, stickers and films from the products surface and clean the product’ s surfaces with a damp cloth and mild detergent before using for the first time. ● Let the appliance stand upright for approximately hours before connecting it to the power source, which helps to reduce the possibility of a cooling-system malfunction from handling during transportation.
  • Page 4 INSTRUCTION MANUAL ● To ensure proper ventilation for the appliance, the front of the unit must be completely unobstructed. Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.). ● Do not attempt to repair or replace any part of the appliance unless it is specifically recommended in this manual.

  • Page 5: Description Of Appliance And Installation

    INSTRUCTION MANUAL DESCRIPTION OF APPLIANCE AND INSTALLATION The following pictures only show description of appliance. The dimension and shelf quantity may differ among the models of the same series. „ 270L – Model BWC694 Dual Zone Door Outside Cabinet Deep Shelf...

  • Page 6: 428L (Bwc6166)

    INSTRUCTION MANUAL „ 428L – Model BWC6166 Dual Zone Door Outside Cabinet Deep Shelf Control Panel Handle Gasket Shallow Shelf Front Louvre Adjustable Foot 1770mm ≥ (69 ¾”) 1770mm (69 ¾”)

  • Page 7: Accessory Installation Before Operating

    INSTRUCTION MANUAL ACCESSORY INSTALLATION BEFORE OPERATING „ UNPACKING AND CLEANING THE WINE COOLER ● Remove the exterior and interior packing materials. 24 hours ● Let the appliance stand upright for approximately before connecting it to the power source, which helps to reduce the possibility of a cooling-system malfunction from handling during transportation.

  • Page 8: Wine Storage

    INSTRUCTION MANUAL „ WINE STORAGE ● The standard shelves are designed perfectly for Bordeaux bottle storage. The maximum loaded bottles may vary subject to the different size or dimension wine bottles you store. ● The shelves can be pulled out by 1/3 approximately for easy access to the wine storage.

  • Page 9: Control Panel

    INSTRUCTION MANUAL „ CONTROL PANEL For Dual Zone Upper Zone Temp. Up Display Window Lock / Unlock Temp. Down Power Lighting ºC/ºF Bottom Zone Zone Select Interchange Display Window „ POWER ON/OFF CONTROL ● When the appliance is plugged in to a power outlet, it powers on automatically. ●...

  • Page 10: Temperature Display Window

    INSTRUCTION MANUAL „ TEMPERATURE DISPLAY WINDOW ● The temperature is displayed in digitally which is the best way for it to be read. The digital display is shown as the set temperature when setting the temperature, and it will change to display the real temperature of the inside cabinet after 10 seconds without being touched.

  • Page 11: Care And Maintenance

    INSTRUCTION MANUAL CARE AND MAINTENANCE „ CLEANING THE WINE COOLER ● Turn off the power, unplug the appliance, and remove all items including shelves. ● Wipe the inside surfaces with a sponge and baking soda solution. The solution should be about 2 tablespoons of baking soda to approximately 1 litre of warm water. ●...

  • Page 12: Troubleshooting

    INSTRUCTION MANUAL TROUBLESHOOTING If you feel the appliance is not working properly, follow these instructions to try to see if you can solve the problem simply by yourself before calling for service. No� PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE Not plugged in. The wine cooler does not operate The appliance is turned off.

  • Page 13: Reverse The Door Swing

    INSTRUCTION MANUAL REVERSE THE DOOR SWING IMPORTANT INFORMATION We recommend that you secure the racks in place using adhesive tape to prevent causing damage when handling the appliance and store all removed parts carefully. 1. Remove the Hole Cover and Upper Hinge Cover on top side using a flat-head screwdriver.
  • Page 14 INSTRUCTION MANUAL 3. Remove the Bottom Hinge Cover by prying it off gently with small flat screwdriver. Remove the Bottom Hinge by unscrewing the Hex Head Screw (4pcs). Unscrew the Pan Head Screw (4pcs) from bottom left side. Now move the Bottom Hinge to the bottom left side and screw it tightly with the Hex Head Screws (4pcs).
  • Page 15 THIS PAGE HAS BEEN LEFT BLANK INTENTIONALLY...

This manual is also suitable for:

Bwc6166
