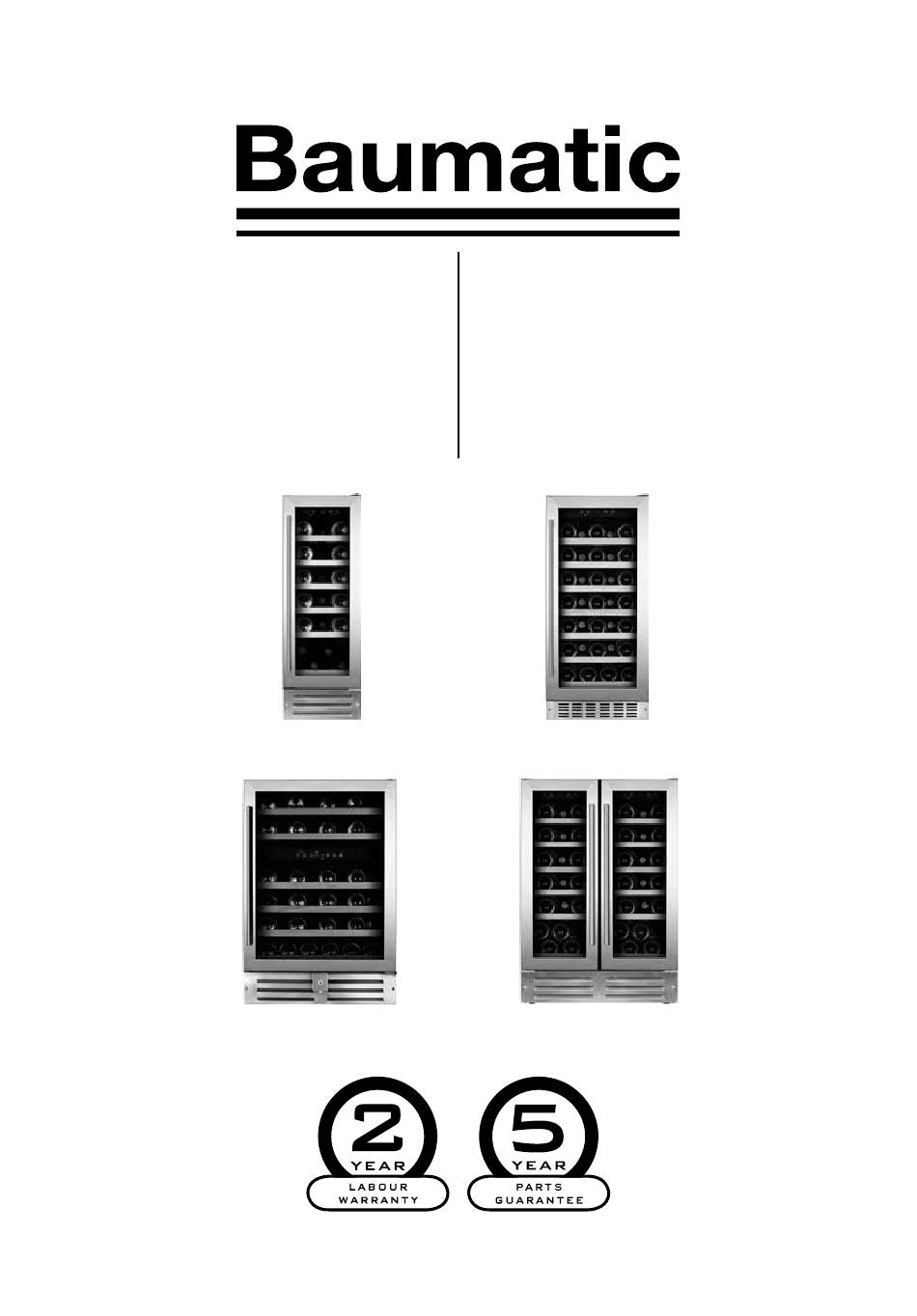

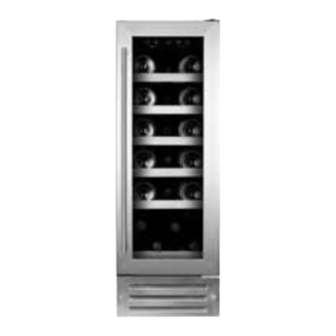

  • Page 1 BWC3019FS Wine BWC3832FS BWC6046FS Cabinet BWC6038FS EN Ver.1/2016...
  • Page 2 BWC3019FS BWC3832FS 30cm 19Bottles 38cm 32Bottles BWC6046FS BWC6038FS 60cm 46Bottles 60cm 38Bottles...

  • Page 3: Table Of Contents

    --CONTENTS-- 01 SAFETY INFORMATION 03 SCRAPPING OLD APPLIANCES Conformity Energy Saving Service 04 DESCRIPTION OF APPLIANCE Product Features Control Panel Interior Light The Wine Cabinet Shelves 07 USING YOUR WINE CABINET Before Switching On During First Use Turning The Appliance On And Off Unlocking The Control Panel The Interior Light Setting The Temperature Range...

  • Page 4: Safety Information

    Thank you for purchasing this product. Before using your Wine Cabinets, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as: --the kitchen area for personnel in shops, offices and other working environments --on farms, by clientele of hotels, motels and other environments of a...
  • Page 5 ● Do not damage the plug and/or the power cord; this could cause electrical shocks or fires. ● It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire. ● Do not use mechanical devices or other equipment to hasten the defrosting process.

  • Page 6: Scrapping Old Appliances

    SCRAPPING OLD APPLIANCES This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

  • Page 7: Service

    Service ● You should not attempt to repair the appliance yourself, as this could cause injury or a more serious malfunction. If you require a service call then please contact the Customer Care Department DESCRIPTION OF APPLIANCE Product Features BWC3019FS: Single Zone--19 Bottles A.

  • Page 8: Control Panel

    C. Handle D. Beech Shelves E. Front Vent F. Adjustable Foot Control Panel Single Zone:BWC3019FS, BWC3832FS, BWC6038FS(Left & Right) A. Power B. Lighting C. Display Window D. Temp. Plus E. Temp.Minus F. Lock / Unlock G. Function Indicator H. ºC/ºF Switch *BWC6038FS is without Function Indicator .05.

  • Page 9: Interior Light

    Dual Zone ： BWC6046FS D. ºC/ºF Upper Zone A. Power B. Lock / Unlock C. Lighting Switch Display Window Function Lower Zone Function Temp. Indicator 1 G. Display Window H. Indicator 2 I. J. Temp.Minus K. Zone Select Plus Interior Light Note: LED light has a long life span.

  • Page 10: Using Your Wine Cabinet

    If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting the appliance or reconnecting it to your mains supply. Turning The Appliance On And Off BWC3019FS, BWC3832FS, BWC6046FS , BWC6038FS o When the Wine Cooler is connected to the power outlet it will turn on automatically.

  • Page 11: Unlocking The Control Panel

    Even if the safety lock is activated, the appliance can still be turned off by pressing and holding the power button for 10 seconds. * For BWC6038FS, the power of Left and Right Zone will be turn off/on at the same time no matter the operation above on Left or Right Zone.

  • Page 12: Setting The Temperature

    F:2 - °C(36ºF-72ºF) for Right Zone. Setting The Temperature BWC3019FS, BWC3832FS, BWC6038FS o Use the temperature plus button and minus button to select the temperature you want the Wine Coolers to operate at. o Each press of the temperature plus button will increase the set temperature by 1°C/1°F.

  • Page 13: Changing Between Fahrenheit And Celsius

    Celsius and Fahrenheit switch. This will change the temperature display for both cooling zones. * For BWC6038FS, the Celsius and Fahrenheit of Left and Right Zone will be changed at the same time no matter the operation above on Left or Right Zone.

  • Page 14: Function Indicator

    Function Indicator BWC3019FS, BWC3832FS o When the compressor starts to work, the Indicator will stay o In other conditions, the Indicator will be off. Function Indicator BWC6046FS o The Indicator 1 will flash every 2 seconds when the unit is plugged in; o The Indicator 1 will stay on when the compressor starts to work;...
  • Page 15 BWC3019FS Upper Shelf Bottom Shelf 750ml Bordeau Φ76.20mm 305mm BWC3832FS Bottom Shelf Upper Shelf 750ml Bordeau Φ76.20mm 305mm BWC6046FS Upper Shelf Bottom Shelf 750ml Bordeau Φ76.20mm 305mm .12.

  • Page 16: Storing Your Wines

    BWC6038FS Bottom Shelf Upper Shelf 750ml Bordeau Φ76.20mm 305mm Storing Your Wines The chart below indicates the ideal storage temperatures for different types of wine: Temperature Temperature Type of wine (Celsius) (Fahrenheit) Red wine (*) 15.5 – 18.5°C 59.9 – 65.3°F White wine (**) 10 - 15°C...

  • Page 17: Wine Storage Problems

    corks from shrinking. o After a bottle of wine has been opened, the wine comes into contact with air. So it is best to store the remainder of the bottle upright, to minimize the surface area of the wine that is coming into contact with the air.
  • Page 18 warm. The wine may still be drinkable, if the leakage was recent; however, you should be aware that if the wine cools down again, contraction can cause more air to be sucked into the bottle and result in further deterioration. Slight effervescence in still wine- this isn’t really a problem with the way the wine has been stored, but as a result of incomplete malolactic fermentation before the wine was bottled.

  • Page 19: Cleaning And Maintenance

    CLEANING AND MAINTENANCE WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM Y O U R M A I N S S U P P L Y B E F O R E ATTEMPTING TO CLEAN IT. o Do not clean the appliance by pouring water onto it or spraying water over it.

  • Page 20: Removing The Shelves For Cleaning

    o After washing the appliance, wipe over the area that you have cleaned with a damp cloth and then dry it thoroughly. o When cleaning is complete, dry your hands and then reconnect the plug to your mains supply. Removing The Shelves For Cleaning o Before removing a Shelf from the appliance, it is necessary to remove all the bottles on the Shelf.

  • Page 21: Moving Your Wine Cabinet

    rear wall of the appliance, as this can interrupt the automatic defrosting process and deflect water into the base of your Wine Cabinet. Moving Your Wine Cabinet If you need to move your Wine Cabinet to another location you should follow the steps outlined below.

  • Page 22: Installation

    INSTALLATION MPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found on the front left edge of the inside of the Wine Cabinet.

  • Page 23: Positioning

    Positioning o It is advisable that your appliance is only installed in a location where the ambient temperature of the room, corresponds with the climate classification that is stated on the rating plate of your appliance. Your appliance may not function correctly if the ambient temperature falls outside of the following ranges.

  • Page 24: Built-In Installation

    Built-In Installation BWC3019FS • Height Adjustable: 863-883mm BWC3832FS • Height Adjustable: 853-873mm >853 .21.
  • Page 25 BWC6046FS • Height Adjustable: 863-883mm BWC6038FS • Height Adjustable: 863-883mm o Your Wine Cabinet can be used as a freestanding or a built in unit. The clearances shown in the above drawing should be followed for both types of installation.
  • Page 26 This cut out is required whether the vent is removed or not. BWC3019FS A. Cut-out Area BWC3832FS A. Cut-out Area 54mm 283mm BWC6046FS A. Cut-out Area 491mm BWC6038FS A. Cut-out Area 491mm .23.

  • Page 27: Adjusting The Height And Leveling Off Your Wine Cabinet

    Adjusting the height and leveling off your wine cabinet o The appliance is equipped with adjustable feet, so that the height may be adjusted to level the cabinet on uneven floor surfaces. o We recommend that two people carry out this procedure. o The height must be adjusted prior to building the appliance into the housing unit and it should be set at such a height that the top panel of the appliance fits exactly below the kitchen worktop.

  • Page 28: Reversing The Door Of Your Wine Cooler

    Reversing The Door Of Your Wine Cooler This appliance has the capability of the door opening from either the left or right hand side. Any parts that you remove from the appliance whilst reversing the door, should be retained for later use. BWC3019FS,BWC3832FS, BWC6046FS o Open the glass door and remove the two screws from Pivot Hinge...
  • Page 29 o Remove the right top hinge and right lower hinge. Right Top Hinge Right Lower Hinge o Pull out the 6 Plastic Caps at the front left corner of the cabinet. And move them all to the right side. Plastic Caps .26.
  • Page 30 o Take the left top hinge and left lower hinge from the plastic bag that contained this manual then install them in the designated positions on the left side of the cabinet. Left Top Hinge Left Lower Hinge o Turn the glass door around 180° and reinstall it. .27.
  • Page 31 o Insert the Pivot Hinge into the Left Lower Hinge hole of the door. o Install the door to the left hinge side by tightening the Support Rod with the 2 screws. Pivot Hinge Screws IMPORTANT: Check that the door opens and shuts correctly, without fouling, after you have completed the door reversal process.
  • Page 32 a) Use a warm damp cloth and manipulate the seal until it does adhere to the cabinet properly, all the way around the door. b) Use a hair dryer on its lowest heat setting and lightly heat the areas of the door seal that are not adhering correctly.

  • Page 33: Troubleshooting

    TROUBLESHOOTING IMPORTANT: If your Wine Cabinet appears not to be operating properly, before contacting the Customer Care Department, please refer to the checklist below. PROBLEM POSSIBLE CAUSE Not plugged in. The Wine Cabinet does not operate The appliance is turned off. The circuit breaker tripped or a blown fuse.
  • Page 34 DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.

  • Page 35: Technical Data

    TECHNICAL DATA HOOVER Manufacturer 2 – Refrigeration-cellar, Cellar and Wine storage Product Category appliances BWC3019FS BWC3832FS Model Number BWC6046FS BWC6038FS Energy Efficiency Class (1) Annual Energy 169kWh 188kWh 252kWh 288kWh Consumption (2) Storage Volume of Fridge Compartment Storage Volume of...
  • Page 36 34002153 CANDY HOOVER GROUP Code: BWC3019FS Model: Via Comolli,16-20861 Brugherio-Italy WINE COOLER CIRCUIT DIAGRAM Climate Type: Capacity: Rated Volt./Freq.: 220-240V 50Hz Rated Current: 0.50A Light Power: Max 0.5W Refrigerant: R600a(19g) Blowing Gas: Cyclopentane Unit Size(mm): 295*570*863 N.W.(Kg): CM:COMPRESSOR Made In China TK:OVERLOAD PROTECTOR JK:PTC STARTING RELAY 34002155 CANDY HOOVER GROUP...
  • Page 37 Cyclopentane Unit Size(mm): 595*570*863 N.W.(Kg): 48.4 CM:COMPRESSOR Made In China TK:OVERLOAD PROTECTOR JK:PTC STARTING RELAY 34002156 CANDY HOOVER GROUP Code: BWC6038FS Model: Via Comolli,16-20861 Brugherio-Italy WINE COOLER CIRCUIT DIAGRAM Climate Type: Capacity: 116L Rated Volt./Freq.: 220-240V 50Hz Rated Current: 0.65A Light Power: Max 0.5Wx2...
  • Page 38 Customer Care Telephone 0844 692 3605 Spare Part Telephone 0844 692 3606 .35.
  • Page 39 Part of the Candy Hoover Group Via Comolli,16-20861 Brugherio, Italy www.baumatic.co.uk .36.
