Page 1: User Manual

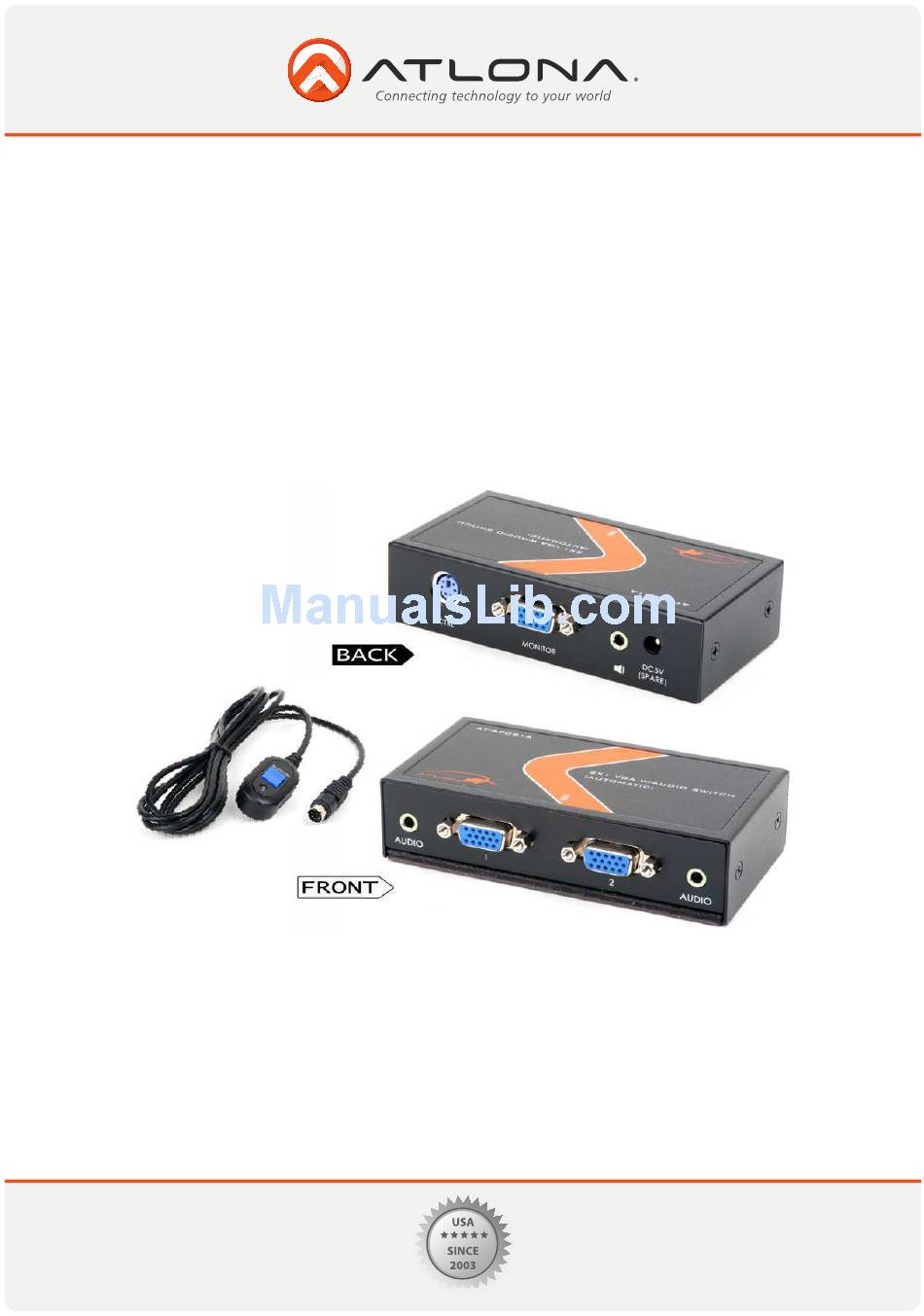

2X1 VGA W/ STEREO AUDIO (AUTOMATIC) SWITCHER AT-APC21A User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction 2. Features 3. Package Contents 4. Specifications 5. Panel Description 5.1. Front Panel 5.2. Rear Panel 6. Connection and Installation 8. Safety Information 9. Warranty 10. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION Atlona Technologies’ AT-APC21A is an automatic VGA Switcher with 2 inputs to 1 output with Stereo Audio. This unit features multiple switching capabilities including automatic selection of the active channel to elimi- nate the need of manual control. To switch over to another channel, simply turn on the other device or use external control button. -
Page 4: Specifications
1. Channel Display Status: LED will Light up Blue for Channel 1 and Green for Channel 2 2. Channel 1 Audio Input 3. Channel 1 VGA Input 4. Channel 2 VGA Input 5. Channel 2 Audio Input Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Rear Panel
VGA Monitor Laptop 1. Connect the desired VGA monitor and speaker to the output of the AT-APC21A and two VGA + Audio sources to the corresponding inputs of the AT-APC21A via VGA and audio cables. 2. The LED display on the switch panel will turn on when the switch detects a VGA signal (Blue: Channel 1, Green: Channel 2) The External control button is available for manual switching. -
Page 6: Safety Information
It may also cause damage to your AT- APC21A. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly. -
Page 7: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 8: 10. Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
