- Page 1 DVI over CAT5 Transmitter ID# 750 DVI over CAT5 100m Receiver Box - ID# 752 Operation Manual...

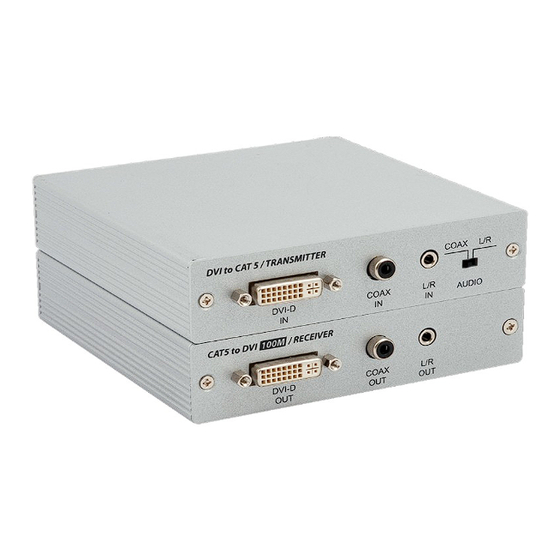

- Page 2 Introduction DVI transmitter and receiver over CAT 5 is a pair of extender for DVI signal - up to 100 meters long. Not only can this device transfer the HD image signal but also the analog/digital audio signal with coaxial and L/R audio port.
- Page 3 Operating Functions Controls Transmitter’s Front Panel ① DVI-D IN – Plug from DVI/HDMI source equipment’s video output with DVI in cable. ② COAX IN – Plug from DVI/HDMI source equipment’s audio output with coaxial cable. ③ L/R IN – Plug from DVI/HDMI source equipment’s audio output with L/R phone jack cable.
- Page 4 with transmitter and receiver, the DVI-D output signal's HDCP protection will depend on input signal. ● Input with HDCP protection, Output with HDCP protection. ● Input without HDCP protection, Output without HDCP protection. Receiver’s Front Panel ① EQUALIZER – Use this switch to adjust Sharpness/Peak over long distance by turning right or left.
- Page 5 Connection and Installation...
- Page 6 Specifications Transmitter Input port 1 x DVI-I female port (Accept DVI-D signal only) 1 x Coaxial 1 x L/R Audio Transmitter Output port 2 x CAT5 RJ 45 8pin Receiver Input port 2 x CAT5 RJ 45 8pin Receiver Output port 1 x DVI-I female port (Output DVI-D Signal only) 1 x Coaxial...
