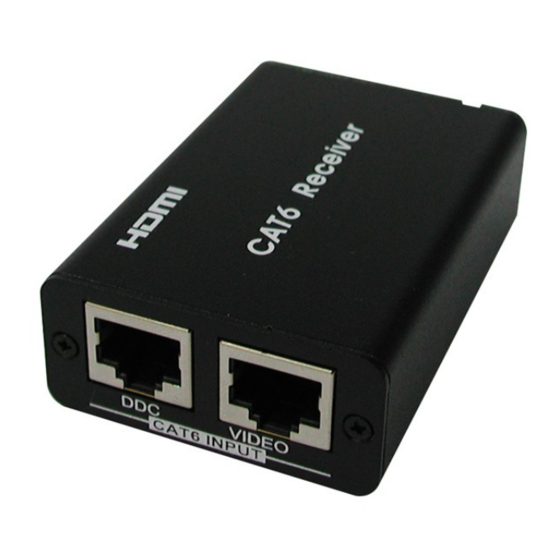

CAT6 to HDMI Receiver

ID# 789

Table of Contents

Need help?

Do you have a question about the 789 and is the answer not in the manual?

Page 1 CAT6 to HDMI Receiver ID# 789 Operation Manual...
Page 2 Introduction This is the Receiver (Rx) unit of CAT6 to HDMI Solution that can receive the digital signal through CAT-6 cables. This is compatible with HDMI v1.3 specifications, a cutting-edge technology which defines the supports to transfer Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, with a bandwidth up to 225MHz.
Page 3 Rear Panel 1. HDMI output: Connect the HDMI output port to the HDMI or DVI input of your display. 2. Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet. Note: A. Cable tested with CAT-6E / 23AWG / Solid and therefore, cable with different specification may result in different distance.
