- Page 1 HDMI to Optical Transmitter and Receiver - ID# 888 Operation Manual...
- Page 2 Introduction While HDMI is becoming more common around the world, some consumers have been wishing for a way to transmit HDMI signals at very long distances. Enter the HDMI to Optical Transmitter and Receiver which uses fiber optic cables to give you a longer transmission distance, up to 500m while also providing you with thinner lighter cables for easy installations.
-
Page 3: Front Panel

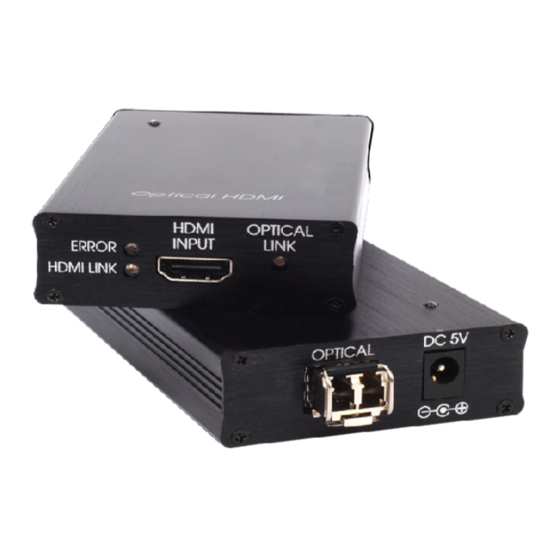

Operation Controls and Functions Front Panel Transmitter Side Receiver Side ① HDMI LINK: This LED will turn blue when the device receives a signal from the source or display. ② ERROR: This LED will turn red when there appears to be an error in the input signal or it is not supported and the output has not yet received the signal. -
Page 4: Support Timing Chart
Support Timing Chart Formats Field Rate Picture Aspect Ratio 640x480p 59.94Hz/60Hz 720x480p 59.94Hz/60Hz 720x480p 59.94Hz/60Hz 16:9 1280x720p 59.94Hz/60Hz 16:9 1920x1080i 59.94Hz/60Hz 16:9 720(1440)x480i 59.94Hz/60Hz 720(1440)x480i 59.94Hz/60Hz 16:9 720(1440)x240p 59.94Hz/60Hz 720(1440)x240p 59.94Hz/60Hz 16:9 ... - Page 5 2880x576i 50Hz 16:9 2880x288p 50Hz 2880x288p 50Hz 16:9 1440x576p 50Hz 1440x576p 50Hz 16:9 1920x1080p 50Hz 16:9 1920x1080p 23.97Hz/24Hz 16:9 1920x1080p 25Hz 16:9 1920x1080p 29.97Hz/30Hz 16:9 2880x480p 59.94Hz/60Hz 2880x480p 59.94Hz/60Hz 16:9 ...
-
Page 6: Specifications
Specifications Output Resolution 1920 x 1200 Input port 1 x Mini DisplayPort Output ports 3 x Mini DisplayPort Power Supply 3.3V / 1.5A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Dimensions(mm) 100 (W) x 70 (D) x 20 (H) Weight(g)
