All-Power APG3008 Owner's Manual

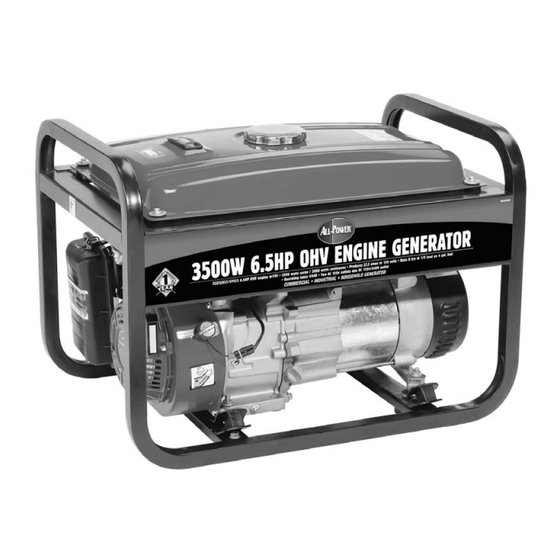

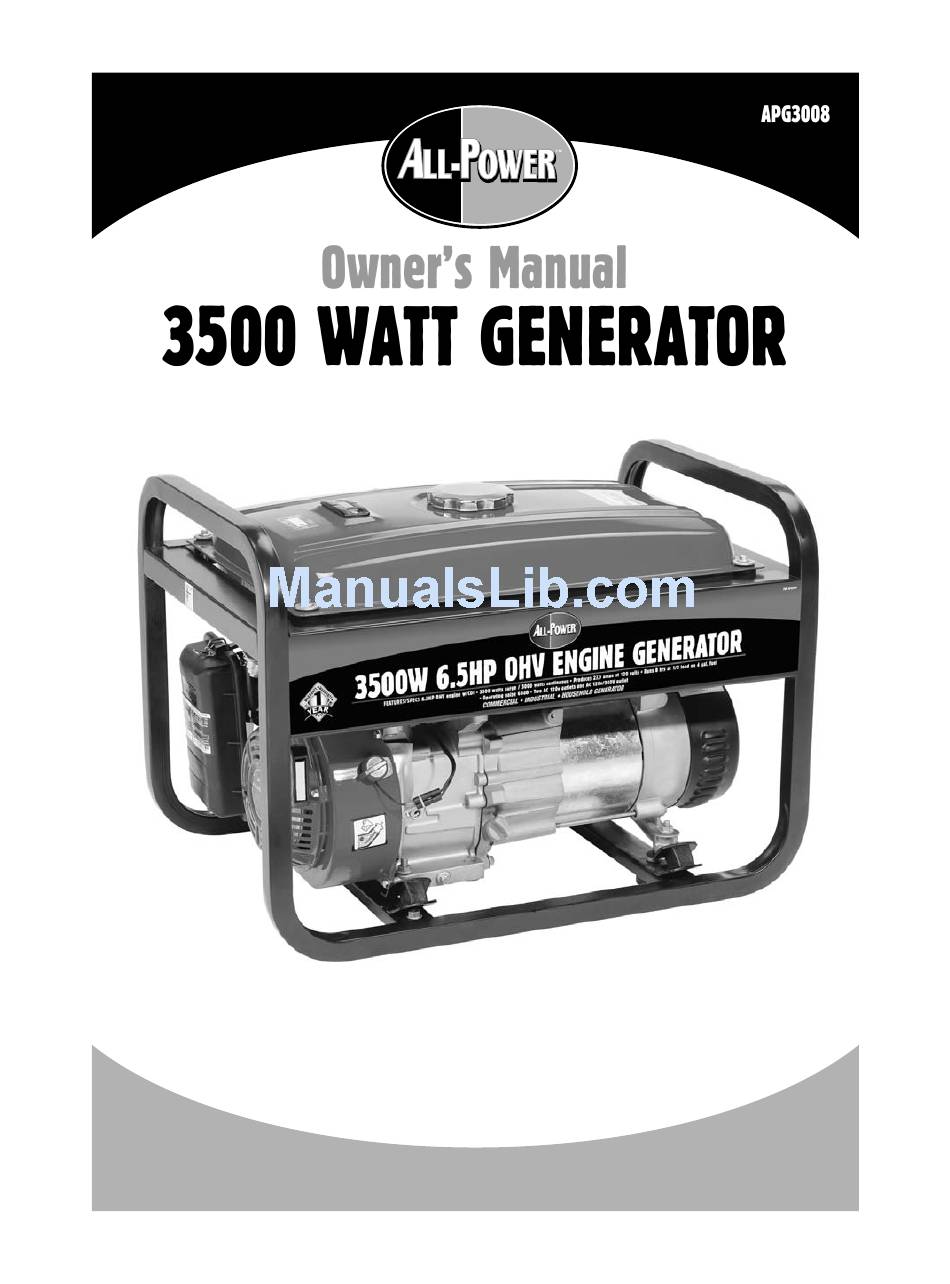

3500 watt generator
Hide thumbs Also See for APG3008:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APG3008 and is the answer not in the manual?

Questions and answers

Related Manuals for All-Power APG3008

Summary of Contents for All-Power APG3008

  • Page 3: Safety Guidelines - Definitions

    Owner’s Manual Safety Guidelines - Definitions This manual contains important information that you need to know and understand in order to protect YOUR SAFETY and to PREVENT EQUIPMENT PROBLEMS. The following symbols help you recognize this information. Please read the manual and pay attention to these sections. WARNING! WARNINGS INDICATE A CERTAINTY OR STRONG POSSIBILITY OF PERSONAL INJURY OR DEATH IF INSTRUCTIONS ARE NOT FOLLOWED.

  • Page 4: General Precautions

    3.5KW Generator General Precautions WARNING! FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN SEVERE INJURY OR DEATH. CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN ALSO RESULT IN DAMAGE TO THE TOOL AND/OR THE ITEM YOU ARE WORKING ON. Carbon Monoxide When this tool is running, ensure that the area is well ventilated.

  • Page 5: Hot Components

    Owner’s Manual General Precautions (cont’d) Gasoline and Oil (cont’d) Do not smoke, or allow sparks, flames or other sources of ignition around the engine and fuel tank. Fuel vapors are explosive. Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and connections to avoid sparking or arcing.

  • Page 6: Work Area

    3.5KW Generator General Precautions (cont’d) Work Area Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.

  • Page 7: Personal Safety

    Owner’s Manual General Precautions (cont’d) Electrical Safety (cont’d) All connections and conduits from the generator to the load must only be installed by trained and licensed electricians, and in compliance with all relevant local, state, and federal electrical codes and standards, and other regulations where applicable.

  • Page 8: Generator Use And Care

    3.5KW Generator General Precautions (cont’d) Personal Safety (cont’d) Avoid accidental starting. Make sure the power switch is in its “OFF” position, and disconnect the spark plug wWire when not in use. Remove adjusting keys or wrenches before turning the generator on. A wrench or a key that is left attached to a rotating part of the generator may result in personal injury.

  • Page 9: Heart Pacemakers

    Owner’s Manual General Precautions (cont’d) Servicing Maintain labels and name plates on the generator and engine. These carry important information. If unreadable or missing, contact All Power America immediately for a replacement. Generator service must be performed only qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury.
  • Page 10 3.5KW Generator General Precautions (cont’d) Installation (cont’d) If the generator is installed outdoors, it must be weatherproofed and should be soundproofed. It should not be run outdoors without protection to the generator and wiring conduit. The generator weighs 112lbs. Two or more people should assist when moving or lifting this product.
  • Page 11 Owner’s Manual General Precautions (cont’d) Mechanical (cont’d) Do not operate the generator with safety guards removed. While the Generator is running, do not attempt to reach around the safety guard for maintenance or any other reason. Keep hands, arms, long hair, loose clothing, and jewelry away from moving parts.

  • Page 12: Extension Cord

    3.5KW Generator General Precautions (cont’d) Extension Cord If an extension cord (not included) is used, make sure to use only UL approved cords having the correct gauge and length according to the following table: Cord Lengths Nameplate Amps (@ full load) 0’-50’...

  • Page 13: Specifications

    Owner’s Manual Specifications AC electrical Current output 10/120VAC @ 27.5A, 60Hz Continuous/rated wattage 3,000 Peak wattage 3,500 Outlet two 110/120 VAC, 3-prong grounded DC electrical Current output 12VDC @ 10A Gasoline engine Horsepower Type 4-cycle OHV air-cooled recoil start Displacement 196cc Oil capacity 0.63 quart (0.6 liter)

  • Page 14: Installation

    Owner’s Manual Installation Note: Prior to powering tools and equipment, make sure the generator’s rated voltage, wattage, and amperage capacity (115V-20AMPs) is adequate to supply all electrical loads that the unit will power. If powering exceeds the generator’s capacity, it may be necessary to group one or more of the tools and/or equipment for connection to a separate generator.

  • Page 15: Support And Mounting

    3.5KW Generator Installation (cont’d) Support and Mounting Mount the generator on a concrete slab capable of supporting the weight of the generator. The slab must extend on all sides beyond the frame by at least one foot. Contact a cement contractor for slab specifications if necessary.

  • Page 18: Powering 120 Volt Ac Tools And Equipment

    Owner’s Manual Operation (cont’d) Powering 120 Volt AC Tools And Equipment: 1 Prior to powering tools and equipment, make sure the generator’s rated voltage, and amperage capacity (110/120VAC @ 27.5 AMPs) is adequate to supply all electrical loads that the unit will power. If powering exceeds the generator’s capacity, it may be necessary to group one or more of the tools and/or equipment for connection to a separate generator.
  • Page 19 3.5KW Generator Operation (cont’d) Powering 12 Volt DC tools And Equipment: 1 Prior to powering a tool or equipment, make sure the generator’s rated voltage, and amperage capacity (12VDC @ 10 AMPs) is adequate to supply all electrical loads that the unit will power. If powering exceeds the generator’s capacity, it may be necessary to group one or more of the tools and/or equipment for connection to a separate generator.

  • Page 20: Inspection, Cleaning, And Maintenance

    Owner’s Manual Inspection, Cleaning, and Maintenance WARNING! ALWAYS MAKE SURE THE ENGINE POWER SWITCH (2) IS IN ITS “OFF” POSITION. DISCONNECT THE SPARK PLUG WIRE FROM THE ENGINE. AND ALLOW SUFFICIENT TIME FOR THE ENGINE AND GENERATOR TO COMPLETELY COOL BEFORE PERFORMING ANY INSPECTIONS, MAINTENANCE, OR CLEANING.
