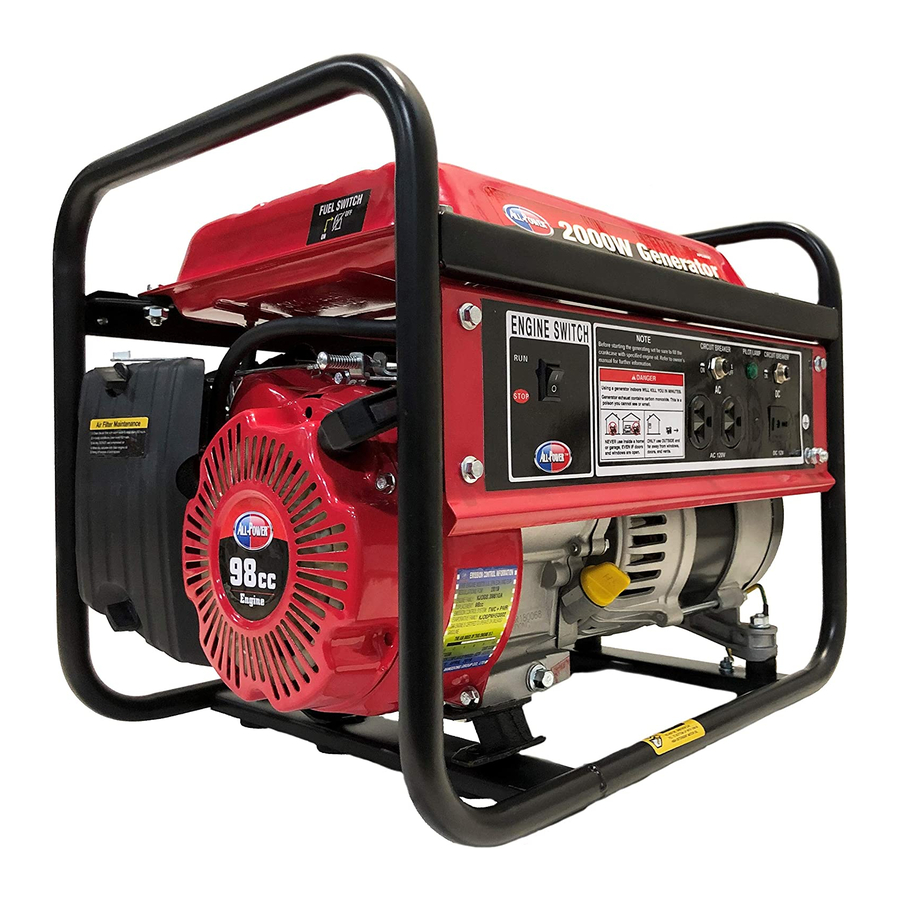

  • Page 1 APG3014 Owner’s Manual 2000 W Generator Warning To Reduce The Risk Of Injury, User Must Read And Understand Instruction Manual. www.allpoweramerica.com...

  • Page 2: General Parts Listing

    Owner’s Manual General Parts Listing This list is provided for reference purposes only. All repairs and part replacement should be performed by a qualified technician. Some parts may not be available as single replacements. FIG A. CRANKCASE ASSY AP A P a r t N o. P a r t N o D e s c r i p t i o n Q t y .
  • Page 3 2000W Generator General Parts Listing FIG B. CYLINDER HEAD AP A P a r t N o. P a r t N o D e s c r i p t i o n Q t y . SP-GG200-B-01-JD EG- LY 152-B01 Pipe SP-GG200-B-02-JD EG- LY 152-B02...
  • Page 4 Owner’s Manual General Parts Listing FIG C. CRANKSHAFT PISTON APA Part No. Part No. Description Qty. SP-GG200-C-01-JD EG-LY152-C01 Connecting rod SP-GG200-C-02-JD EG-LY152-C02 Semicircle key SP-GG200-C-03-JD EG-LY152-C03 Crankshaft assy. SP-GG200-C-04-JD EG-LY152-C04 Connecting rod cover SP-GG200-C-05-JD EG-LY152-C05 Flange bolt SP-GG200-C-06-JD EG-LY152-C06 First piston ring SP-GG200-C-07-JD EG-LY152-C07 Second piston ring...
  • Page 5 2000W Generator General Parts Listing FIG D. CAMSHAFT APA Part No. Part No. Description Qty. SP-GG200-D-01-JD EG-LY152-D01 Pin A SP-GG200-D-02-JD EG-LY152-D02 Spring SP-GG200-D-03-JD EG-LY152-D03 Pin B SP-GG200-D-04-JD EG-LY152-D04 Slide block SP-GG200-D-05-JD EG-LY152-D05 Lock ring SP-GG200-D-06-JD EG-LY152-D06 Valve lifter SP-GG200-D-07-JD EG-LY152-D07 Push rod SP-GG200-D-08-JD EG-LY152-D08...
  • Page 6 Owner’s Manual General Parts Listing FIG D. CAMSHAFT APA Part No. Part No. Description Qty. SP-GG200-D-13-JD EG-LY152-D13 Valve spring SP-GG200-D-14-JD EG-LY152-D14 Spring retainers SP-GG200-D-15-JD EG-LY152-D15 Rocker ring SP-GG200-D-16-JD EG-LY152-D16 Rocker seat EG-LY152-D17 Rocker arm shaft SP-GG200-D-17-JD EG-LY152-D18 Adjusters screw SP-GG200-D-18-JD SP-GG200-D-19-JD EG-LY152-D19 Exhaust rocker...
  • Page 7 2000W Generator General Parts Listing FIG E. AIR CLEANER APA Part No. Part No. Description Qty. SP-GG200-E-01-JD EG-LY152-E01 Bolt SP-GG200-E-02-JD EG-LY152-E02 Filter cover SP-GG200-E-03-JD EG-LY152-E03 Air cleaner element EG-LY152-E04 Hold rack SP-GG200-E-04-JD EG-LY152-E05 Net M6 SP-GG200-E-05-JD EG-LY152-E06 Filter seat SP-GG200-E-06-JD EG-LY152-E07 Gasket SP-GG200-E-07-JD...
  • Page 8 Owner’s Manual General Parts Listing FIG F. CARBURETOR APA Part No. Part No. Description Qty. SP-GG200-F-01-JD EG-LY152-F01 Carburetor assy. SP-GG200-F-02-JD EG-LY152-F02 Float SP-GG200-F-03-JD EG-LY152-F03 Float pin SP-GG200-F-04-JD EG-LY152-F04 Main nozzle SP-GG200-F-05-JD EG-LY152-F05 Gasket SP-GG200-F-06-JD EG-LY152-F06 Float chamber body SP-GG200-F-07-JD EG-LY152-F07 Gasket SP-GG200-F-08-JD EG-LY152-F08...
  • Page 9 2000W Generator General Parts Listing FIG F. CARBURETOR APA Part No. Part No. Description Qty. SP-GG200-F-13-JD SP-GG200-F-14-JD SP-GG200-F-15-JD SP-GG200-F-16-JD SP-GG200-F-17-JD...
  • Page 10 Owner’s Manual General Parts Listing FIG G. GOVERNOR APA Part No. Part No. Description Qty. SP-GG200-G-01-JD EG-LY152-G01 Bolt SP-GG200-G-02-JD EG-LY152-G02 Nut M6 SP-GG200-G-03-JD EG-LY152-G03 Platen SP-GG200-G-04-JD EG-LY152-G04 Spring washer SP-GG200-G-05-JD EG-LY152-G05 Handle SP-GG200-G-06-JD EG-LY152-G06 Washer SP-GG200-G-07-JD EG-LY152-G07 Shaft SP-GG200-G-08-JD EG-LY152-G08 Insulationframe SP-GG200-G-09-JD EG-LY152-G09...
  • Page 11 2000W Generator General Parts Listing FIG G. GOVERNOR APA Part No. Part No. Description Qty. SP-GG200-G-12-JD EG-LY152-G12 Spring SP-GG200-G-13-JD EG-LY152-G13 Spring SP-GG200-G-14-JD EG-LY152-G14 Link rod SP-GG200-G-15-JD EG-LY152-G15 Nut M 6 SP-GG200-G-16-JD EG-LY152-G16 Governor arm SP-GG200-G-17-JD EG-LY152-G17 Lockring SP-GG200-G-18-JD EG-LY152-G18 Washer SP-GG200-G-19-JD EG-LY152-G19 Governor shaft...
  • Page 12 Owner’s Manual General Parts Listing FIG H. IGNITION FLYWHEEL APA Part No. Part No. Description Qty. SP-GG200-H-01-JD EG-LY152-H01 String frame SP-GG200-H-02-JD EG-LY152-H02 Stopping protective wires SP-GG200-H-03-JD EG-LY152-H03 Ignition coil assy. SP-GG200-H-04-JD EG-LY152-H04 Flange bolt SP-GG200-H-05-JD EG-LY152-H05 Spark plug SP-GG200-H-06-JD EG-LY152-H06 SP-GG200-H-07-JD EG-LY152-H07 Flywheel...
  • Page 13 2000W Generator General Parts Listing FIG I. RECOIL STARTER APA Part No. Part No. Description Qty. SP-GG200-I-01-JD EG-LY152-I01 Handle SP-GG200-I-02-JD EG-LY152-I02 Bolt SP-GG200-I-03-JD EG-LY152-I03 Recoil starter case SP-GG200-I-04-JD EG-LY152-I04 Starter spring SP-GG200-I-05-JD EG-LY152-I05 Recoil starter rope SP-GG200-I-06-JD EG-LY152-I06 Drum sheave SP-GG200-I-07-JD EG-LY152-I07 Drive pawls...
  • Page 14 Owner’s Manual General Parts Listing FIG I. RECOIL STARTER APA Part No. Part No. Description Qty. SP-GG200-I -14-JD EG-LY152-I14 Starter pulle SP-GG200-I -15-JD EG-LY152-I15 Behind cover SP-GG200-I -16-JD EG-LY152-I16 Bolt SP-GG200-I -17-JD EG-LY152-I17 Front cover SP-GG200- I-18-JD EG-LY152-I18 Air shroud SP-GG200- I-19-JD EG-LY152-I19 Bolt...
  • Page 15 2000W Generator General Parts Listing FIG J. magneto 9 10 11 APA Part No. Part No. Description Qty. SP-GG200- J-01-JD JD1200-J-01 Front cover SP-GG200- J-02-JD JD1200-J-02 Rotor SP-GG200- J-03-JD JD1200-J-03 Bolt M8X185 SP-GG200- J-04-JD JD1200-J-04 Stator SP-GG200- J-05-JD JD1200-J-05 Stator SP-GG200- J-06-JD JD1200-J-06 Bolt M6X105...
  • Page 16 Owner’s Manual General Parts Listing FIG K. APA Part No. Part No. Description Qty. SP-GG200- K-1-JD JD1200-K-01 Frame comp. SP-GG200- K-2-JD JD1200-K-02 Bottom rubber A SP-GG200- K-3-JD JD1200-K-03 Flange nut M8 SP-GG200- K -4-JD JD1200-K-04 Bottom rubber B SP-GG200- K-5-JD JD1200-K-05 Bolt M8X16 SP-GG200- K-6-JD...
  • Page 17 2000W Generator General Parts Listing FIG L APA Part No. Part No. Description Qty. SP-GG200-L -01-JD JD1200-L-01 Fuel tank comp. SP-GG200-L -02-JD JD1200-L-02 Fuel filter cap comp SP-GG200-L -03-JD JD1200-L-03 Fuel filter SP-GG200-L -04-JD JD1200-L-04 Fuel valve SP-GG200-L -05-JD JD1200-L-05 Fuel tube SP-GG200-L-06-JD JD1200-L-06...
  • Page 18 Owner’s Manual General Parts Listing FIG M APA Part No. Part No. Description Qty. SP-GG200-M-01-JD JD1200-M-01 ENGINE SWITCH ASSY SP-GG200-M -02-JD JD1200-M-02 OIL ALERT LAMP SP-GG200-M -03-JD JD1200-M-03 CONTROL PANEL COMP. SP-GG200-M -04-JD JD1200-M-04 120V RECEPTACLE SP-GG200-M -05-JD JD1200-M-05 120V RECEPTACLE SP-GG200-M -06-JD JD1200-M-06 EARTH TERMINAL SCREW...
